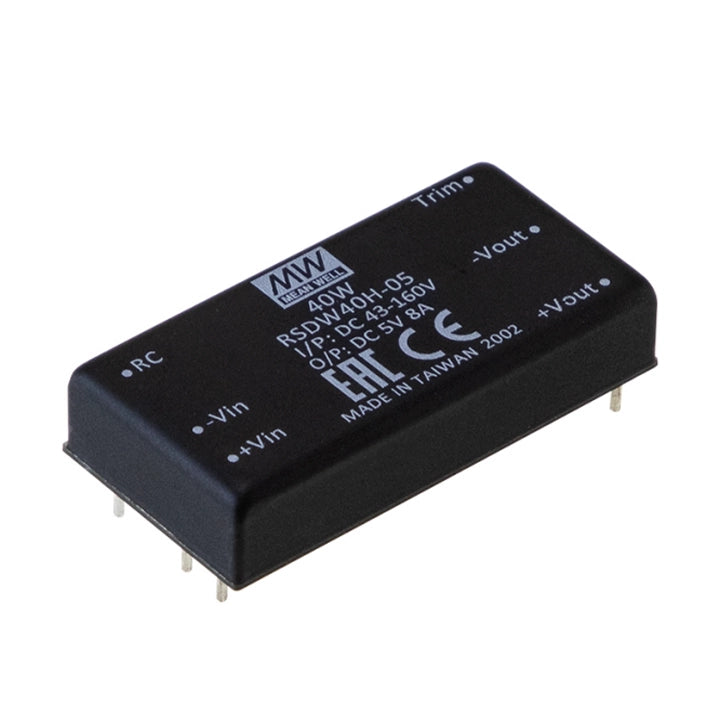

MEAN WELL RSDW40 Series: DC-DC Converter - RSDW40H-05

Description

Series: Single group output Rated power: 40W Input voltage (range):Normal 110V(40~160V) Input current no-load: 10mA, full load: 0.5A Output voltage: 5V Output current: 8A Efficiency (TYP.):88.5% Capacitive load (max):20000 μF Size (mm):50.8X25.4X10.5

Click to download Airtac product catalog

Product Features

Conform to EN50155 railway standards. DIP2 "x1" package, narrow face low height housing (10.5mm).

2, 4:1 wide input range, working temperature range -40 ~ +90 ℃, no minimum load, closed type.

3. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 1.6KVDC,3KVDC input/output isolation, remote on/off, 3-year warranty.

MEAN WELL RSDW40 Series: DC-DC Converter - RSDW40H-05

Product form

Series: Single group output Rated power: 40W Input voltage (range):Normal 110V(40~160V) Input current no-load: 10mA, full load: 0.5A Output voltage:... Read more

$125.57 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 40W Input voltage (range):Normal 110V(40~160V) Input current no-load: 10mA, full load: 0.5A Output voltage: 5V Output current: 8A Efficiency (TYP.):88.5% Capacitive load (max):20000 μF Size (mm):50.8X25.4X10.5

    Click to download Airtac product catalog

    Product Features

    Conform to EN50155 railway standards. DIP2 "x1" package, narrow face low height housing (10.5mm).

    2, 4:1 wide input range, working temperature range -40 ~ +90 ℃, no minimum load, closed type.

    3. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 1.6KVDC,3KVDC input/output isolation, remote on/off, 3-year warranty.
