Description

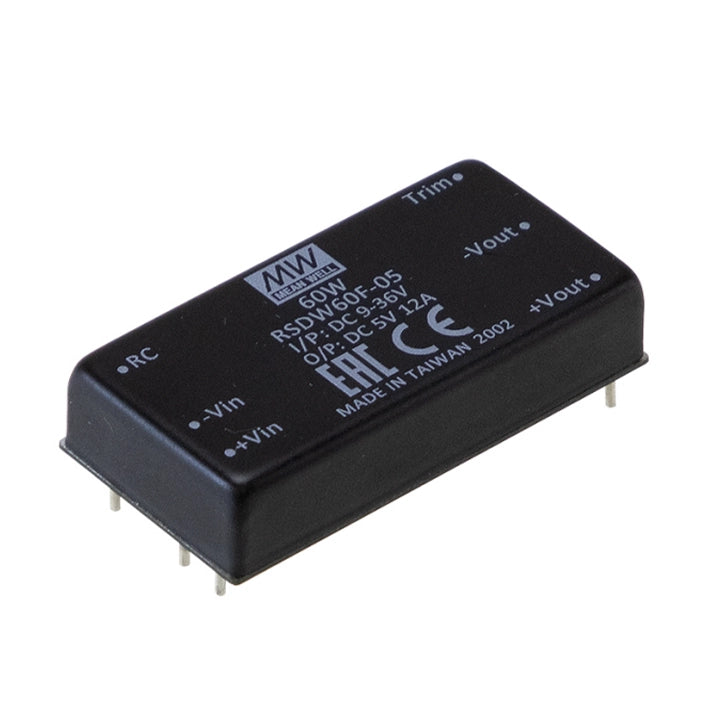

Series: Single group output Rated power: 60W Input voltage (range):Normal 24V(9~36V) Input current no-load: 15mA, full load: 2.85A Output voltage: 5V Output current: 12A Efficiency (TYP.):90% Capacitive load (maximum):28000μF Size (mm):50.8X25.4X10.5
Click to download Airtac product catalog
Product Features
Conform to EN50155 railway standards. DIP2 "x1" package, narrow face low height housing (10.5mm).
2.4:1 wide input range, working temperature range -40 ~ +85 ℃, no minimum load, closed type.
3. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 1.6KVDC,3KVDC input/output isolation, remote on/off, 3-year warranty.
