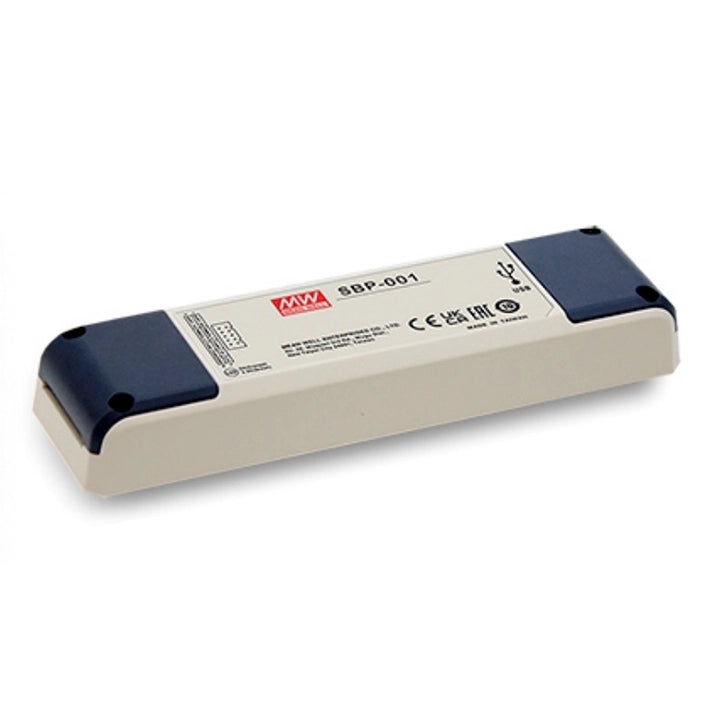

MEAN WELL SBP-001 is a first-generation intelligent battery charging programmer for configuring supported MEAN WELL chargers from a personal computer. It supports PMBus, CANBus and UART and includes four communication-cable types. Its 5 V and 3.3 V interfaces supply up to 0.5 W in total for programming only.
Product Datasheet
Download MEAN WELL SBP Datasheet (PDF)
The SBP section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation.
Product Identity and Programming Functions
| Model |
SBP-001 |
| Series / generation |
SBP / first-generation Smart Battery Programmer |
| PC interface |
Mini USB |
| Programming interfaces |
PMBus / CANBus / UART |
| Programming voltages |
5 V / 3.3 V |
| Maximum programming power |
0.5 W |
| LED indication |
Green: 3.3 V interface; orange: 5 V interface |
Use SBP-001 with a personal computer and the dedicated software to configure supported MEAN WELL intelligent battery chargers. Programmable charging-curve parameters include constant current (CC), constant voltage (CV), float voltage (FV) and taper current (TC), subject to the selected charger.
The 5 V and 3.3 V interfaces share a total maximum programming power of 0.5 W. These outputs are for programming only and must not be used as battery-charging or general load-power outputs.
The USB connection links the programmer to the computer. No battery or AC power is required for the programming arrangement described in the catalogue.
Charger Compatibility and Cable Selection
| ENC-120 / ENC-180 / ENC-240 / ENC-360 |
CN31; communication cable SBP#4 |
| RCB-1600 |
JK1; communication cable SBP#2 |
| RPB-1600 |
CN1 and CN500; communication cable SBP#3 |
| DBR-3200 |
JK1; communication cable SBP#2 |
| DBU-3200 |
CN1 and CN500; communication cable SBP#3 |
| HEP-1000 |
CN71; communication cable SBP#1 |
| HEP-2300-55 |
CN11; communication cable SBP#1 |
| NPB-450 / NPB-750 / NPB-1200 / NPB-1700 |
CN71; communication cable SBP#1 |
| DRS-240 / DRS-480 |
RJ45; communication cable SBP#2 |
| NCP-3200 |
JK1; communication cable SBP#2 |
Select the cable and communication branch for the actual charger configuration. The CANBus and PMBus branches are labelled separately on SBP#1, SBP#2 and SBP#3.
For the RCB connection, the diagram shows an RHP rack containing RCB modules, with the programmer connected at JK1. Use the designated JK1 interface in the applicable rack or charger installation for the RCB-1600, DBR-3200 and NCP-3200 entries; check the installation drawing before connecting.
The listed series identify supported programming applications. Confirm the exact charger version, communication option and charging settings against its own manual before use.
Included Cables and Computer Connection
| Included communication cables |
SBP#1, SBP#2, SBP#3 and SBP#4 |
| Computer cable, separately supplied |
USB Type A to Mini USB; not included |
| Computer end |
USB Type A port on the personal computer |
| Programmer computer port |
Mini USB |
Use the dedicated MEAN WELL software and the model-specific user manual for configuration. Match the selected charger and its permitted charging parameters before writing a curve.
The programmer, cable selection and communication settings form one programming connection. Use the labelled branch and the connector orientation shown in the drawings; confirm pin numbers rather than identifying a connection by wire colour alone.
Programmer CN1 Interface
| CN1 connector |
HRS DF11-10DP-2DSA or equivalent |
| CN1 mating housing |
HRS DF11-10DS or equivalent |
| CN1 contact family |
HRS DF11-**SC or equivalent |
| CN1 pin 1 |
UART_RX |
| CN1 pin 2 |
UART_TX |
| CN1 pin 3 |
PMBUS_D |
| CN1 pin 4 |
PMBUS_C |
| CN1 pin 5 |
CANH |
| CN1 pin 6 |
CANL |
| CN1 pin 7 |
5 V |
| CN1 pins 8 and 10 |
GND |
| CN1 pin 9 |
3.3 V |
Select the complete contact reference for the chosen housing and wire. The DF11-**SC designation identifies the contact family; use the mating-component specification for the required terminal.
SBP#1 Cable: HEP and NPB Connections
| SBP#1 programmer housings |
HRS DF11-10DS or equivalent; separate labelled CANBus and PMBus branches |
| SBP#1 charger housing |
JST PHDR-14VS or equivalent |
| SBP#1 wire |
UL1061, 28 AWG |
| SBP#1 drawing span |
180 mm |
| SBP#1 CANBus pin mapping |
Programmer 5 → charger 11; programmer 6 → charger 12; programmer 10 → charger 9 |
| SBP#1 PMBus pin mapping |
Programmer 3 → charger 11; programmer 4 → charger 12; programmer 10 → charger 9 |
At the programmer end, the used data/CANH, clock/CANL and ground wires are white, orange and black. At the charger end, pins 11, 12 and 9 are blue, yellow and black. The drawing also identifies 120 mm, 30 mm, 50 mm and 10 mm dimensions; follow the drawing for their locations and connector orientation.
SBP#2 Cable: RJ45 / JK1 Connections
| SBP#2 programmer housings |
HRS DF11-10DS or equivalent; separate labelled CANBus and PMBus branches |
| SBP#2 charger connector |
RJ45 |
| SBP#2 branch wire |
UL1061, 28 AWG |
| SBP#2 main cable marking |
2464#26×4C |
| SBP#2 drawing span |
180 mm |
| SBP#2 CANBus pin mapping |
Programmer 5 → RJ45 6; programmer 6 → RJ45 7; programmer 10 → RJ45 8 |
| SBP#2 PMBus pin mapping |
Programmer 3 → RJ45 6; programmer 4 → RJ45 7; programmer 10 → RJ45 8 |
At the programmer end, the used data/CANH, clock/CANL and ground wires are white, orange and black. At the RJ45 end, pins 6, 7 and 8 are green, white/brown and brown. The drawing also identifies 150 mm, 50 mm and 10 mm dimensions; use its pin-number orientation when connecting.
SBP#3 Cable: RPB and DBU Connections
| SBP#3 programmer housings |
HRS DF11-10DS or equivalent; separate labelled CANBus and PMBus branches |
| SBP#3 charger housings |
HRS DF11-8DS and HRS DF11-16DS, or equivalent |
| SBP#3 wire |
UL1061, 28 AWG |
| SBP#3 drawing span |
180 mm |
| SBP#3 CANBus pin mapping |
Programmer 5 → 8-pin housing pin 7; programmer 6 → 8-pin housing pin 8; programmer 10 → 16-pin housing pin 2 |
| SBP#3 PMBus pin mapping |
Programmer 3 → 8-pin housing pin 7; programmer 4 → 8-pin housing pin 8; programmer 10 → 16-pin housing pin 2 |
The charger-side signal wires at the 8-pin housing are blue at pin 7 and yellow at pin 8; the ground wire is black at pin 2 of the 16-pin housing. The corresponding programmer-side wires are white, orange and black. Both charger-side housings are part of this cable arrangement. The drawing also identifies 120 mm, 30 mm, 50 mm and 10 mm dimensions.
SBP#4 Cable: ENC Connections
| SBP#4 programmer housing |
HRS DF11-10DS or equivalent |
| SBP#4 charger housing |
HRS DF11-6DS or equivalent |
| SBP#4 wire |
UL1007, 28 AWG |
| SBP#4 drawing span |
180 mm |
| SBP#4 UART receive connection |
Programmer pin 1 → charger pin 4; blue wire |
| SBP#4 UART transmit connection |
Programmer pin 2 → charger pin 3; yellow wire |
| SBP#4 programming-voltage connection |
Programmer pin 9 → charger pin 1; red wire |
| SBP#4 ground connection |
Programmer pin 10 → charger pin 2; black wire |
This cable carries the UART connections and the 3.3 V programming interface for the listed ENC application. The drawing also identifies 140 mm, 20 mm and 10 mm dimensions. Use the depicted six-pin connector orientation.
Operating Environment and Mechanical Data
| Operating temperature |
0 to +40°C |
| Operating humidity |
20–90% RH, non-condensing |
| Storage temperature |
-10 to +50°C |
| Storage humidity |
10–95% RH, non-condensing |
| Vibration |
10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis |
| Body dimensions |
165 × 46 × 23 mm |
| Mechanical case |
DAP-04; drawing tolerance ±1 mm |
| Unit mass |
120 g; catalogue PACKING reference per unit |
| Transport packing |
84 units / 11 kg / 1.81 CUFT |
Dimensions are length × width × height. Place and connect the unit within the stated environmental limits, keeping the Mini USB and CN1 interfaces accessible. Use the mechanical drawing for the body and connector arrangement.
Catalogue Approvals, EMC and Reliability
| Safety approvals |
IEC62368-1 CB; EAC TP TC 004 |
| EMC emissions |
BS EN/EN55032 (CISPR32): conducted Class B, radiated Class A; BS EN/EN61000-3-2 and -3; EAC TP TC 020 |
| EMC immunity |
BS EN/EN61000-4-2/-3/-4/-5/-6/-8/-11; BS EN/EN61000-6-1 (BS EN/EN50082-2); light industry level, criteria A; EAC TP TC 020 |
| Minimum MTBF, Telcordia |
3103.9 thousand hours; SR-332 (Bellcore) |
| Minimum MTBF, MIL-HDBK |
312.9 thousand hours; MIL-HDBK-217F at 25°C |
