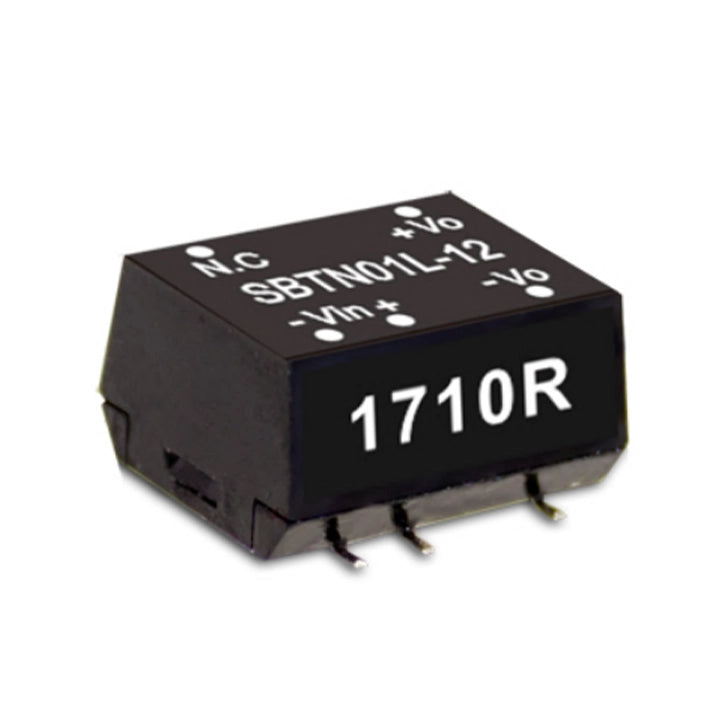

MEAN WELL SBTN01 Series: DC-DC Unregulated Converter - SBTN01L-03SC

Description

Rated power: 1W Input voltage (range):5V(4.5~5.5V) Input current no-load: 35mA, full load: 267mA Output voltage: 3.3V Output current: 30 ~ 300mA Efficiency (TYP.):75% Capacitive load (max):470μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):12.9X10.9X7.1

Click to download Airtac product catalog

Product Features

1. SMD package has industry standard pins, operating temperature range -40 ~ +90 ℃, conforming to BS EN/EN55032 radiation Class B, no additional components, and efficiency as high as 84%.

2. Protection: short circuit, 1.5KVDC input/output isolation (3KVDC input/output isolation optional), low cost, 3 years warranty.

MEAN WELL SBTN01 Series: DC-DC Unregulated Converter - SBTN01L-03SC

Product form

Rated power: 1W Input voltage (range):5V(4.5~5.5V) Input current no-load: 35mA, full load: 267mA Output voltage: 3.3V Output current: 30 ~... Read more

$10.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated power: 1W Input voltage (range):5V(4.5~5.5V) Input current no-load: 35mA, full load: 267mA Output voltage: 3.3V Output current: 30 ~ 300mA Efficiency (TYP.):75% Capacitive load (max):470μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):12.9X10.9X7.1

    Click to download Airtac product catalog

    Product Features

    1. SMD package has industry standard pins, operating temperature range -40 ~ +90 ℃, conforming to BS EN/EN55032 radiation Class B, no additional components, and efficiency as high as 84%.

    2. Protection: short circuit, 1.5KVDC input/output isolation (3KVDC input/output isolation optional), low cost, 3 years warranty.
