MEAN WELL SBTN01 series: 1W isolated DC/DC converter - SBTN01L-12SC

Description

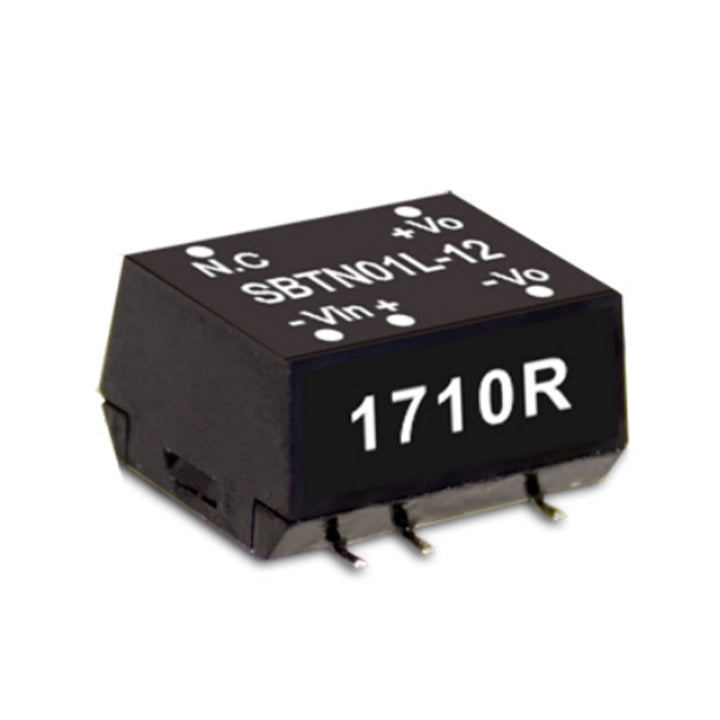

SBTN01L-12SC — 1W isolated DC/DC converter

MEAN WELL SBTN01L-12SC is an isolated, unregulated 1 W DC/DC converter in an SMD package with an industry-standard pinout. It accepts 4.5–5.5 V DC input (5 V nominal) and provides a single output of 12 V DC, with 8.4–84 mA. Observe the stated minimum load, regulation and cooling conditions.

Download MEAN WELL SBTN01 Datasheet (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

SBTN01 electrical, environmental, mechanical and packing specifications: PDF pages 1–5.

Model selection and output

Complete model / series SBTN01L-12SC / SBTN01. Input code L: 5 V nominal; output code 12: 12 V. SC identifies the optional continuous-short-circuit version.
Conversion and rated power 1 W rated. Rounded current values do not increase the rated power; observe the current window and thermal limits.
Output voltage and current 12 V DC; 8.4–84 mA. The lower current value is the specified minimum load.
Efficiency 80% typical; at normal input, rated load, 25°C and 70% RH.
Series efficiency reference The SBTN01 feature page states efficiency up to 84%; use this model's typical efficiency above for selection.
Maximum capacitive load 220 µF.
Voltage accuracy ±2.0%.
Ripple and noise 75 mVp-p. Measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Line regulation 1.2% for 1% input variation; measured from low line to high line at rated load.
Load regulation ±8%; measured from 10% to 100% rated load.
Switching frequency 100 kHz typical.
Specification conditions 5 V DC normal input, rated load, 25°C and 70% RH, unless otherwise specified.

Input, protection and isolation

Input voltage 5 V DC nominal, ±10%; operating range 4.5–5.5 V DC.
Input current No load: 30 mA; full load: 257 mA. The general specification conditions apply.
Input filter Internal capacitor.
Recommended input fuse 750 mA slow-blow fuse recommended.
Internal power dissipation 500 mW.
Input surge voltage 9 V DC for 100 ms maximum. This is a surge limit, not the continuous operating range.
Short-circuit protection Continuous short-circuit protection for the optional SC version.
Input/output withstand voltage 1.5 kV DC between input and output. The series offers an optional 3 kV DC isolation version; confirm its ordering details separately. This listing retains the standard 1.5 kV DC rating.
Isolation resistance 100 MΩ between input and output; at 500 V DC, 25°C and 70% RH.
Isolation capacitance 80 pF typical.

Environment and reliability

Operating temperature −40 to +105°C, subject to the model-specific cooling and derating curve.
Case temperature +100°C maximum.
Cooling and derating PDF page 4, natural convection: 100% load through +100°C, followed by a steep decline to zero load at +105°C. The common +100°C maximum case temperature remains applicable; +105°C is not a full-load rating.
Working humidity 20–90% RH, non-condensing.
Storage temperature and humidity −55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient 0.03%/°C over 0–85°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes.
MTBF 880,000 hours minimum, MIL-HDBK-217F at 25°C. This reliability figure is not a service-life or warranty duration.
Manufacturer warranty 3 years, as stated in the datasheet.
Design and applications The manufacturer describes the series as low cost. Applications include telecom/datacom systems, wireless networks, industrial control, instruments, analyzers, detectors, data switches and distributed power architectures.

Safety and EMC integration

Safety standards EAC TP TC 020/2011 approved. UL62368-1 approved; the series qualification excludes 9 V output models.
EMC emission BS EN/EN55032 (CISPR32): conducted entry N/A; radiated Class B without additional EMC components. The separate immunity test requirements still apply.
EMC immunity BS EN/EN61000-4-2: level 3, ±8 kV air, and level 2, ±4 kV contact; -4-3: level 2, 3 V/m; -4-4: level 1, 0.5 kV at power; -4-5: level 2, 0.5 kV line-to-line; -4-6: level 2, 3 V (e.m.f.); -4-8: level 1, 1 A/m.
Immunity input capacitor When the module must meet BS EN/EN61000-4-4 and -4-5, an external input filter capacitor is required. The datasheet gives Power Mate's recommendation of 220 µF / 100 V for that condition.

Mechanical details and PCB assembly

Construction SMD package with industry-standard pinout; non-conductive black plastic case rated UL 94V-0.
Dimensions 12.9 × 10.9 × 7.1 mm (L × W × H), as specified.
Pin assignment Pin 1 −Vin; pin 2 +Vin; pin 4 −Vout; pin 5 +Vout; pin 8 N.C. Observe the top/bottom view orientation on PDF page 4.
Pin and drawing geometry PDF page 4: 2.54 mm pin pitch, shown as 2.54 × 3; 11.1 mm lead span and 8.5 mm underside width. The side drawing marks a local vertical reference of 6.9 mm.
Pin dimensions and tolerances The general note specifies 0.50 × 0.30 mm pins, with ±0.07 mm pin tolerance. General drawing tolerances: x.x ±0.5 mm and x.xx ±0.25 mm.
PCB land pattern Top-view grid on PDF page 4: 2.54 mm per grid; pads 1.20 × 1.80 mm; the drawing marks 12.00 mm across the pad rows. Match the numbered pads to the specified pin assignment.
Soldering temperature At 1.5 mm from the case, 240°C maximum for 1–10 seconds.
Reflow soldering The curve on PDF page 4 applies only to hot-air reflow soldering: peak 240°C for 10 seconds maximum; time above 220°C is 60 seconds maximum.

Packing and available options

Unit weight 1.1 g, the catalog packing reference per unit; not a measured net or shipping weight.
Standard tube packing 38 pieces per tube; 120 tubes and 4,560 pieces per carton. Tube gross weight 0.06 kg; carton gross weight 8 kg. These are standard packing references, not the quantity supplied with an individual order.
Tube and carton dimensions Tube length 525 ±2 mm. Tube profile references: 12.0 ±0.4, 17.0 ±0.4, 13.5 ±0.4, 8.3 ±0.4, 7.7 ±0.3 and 0.55 ±0.2 mm. Carton 620 × 230 × 230 mm (L × W × H).
Optional reel packing 500 pieces per reel, 5 reels / 2,500 pieces per carton; one-box gross weight 1.2 kg and carton gross weight 6.8 kg. Reel diameter 330 mm and width 24 mm; inner box 355 × 338 × 50 mm, outer carton 380 × 290 × 370 mm.
Reel tape dimensions W 24 mm (+0.3/−0.1); Ao 11.4 ±0.1 mm; Bo 13.2 ±0.1 mm; Ko 7.4 ±0.1 mm; P1 16 ±0.1 mm. Refer to PDF page 5 for cavity orientation.

Installation and system verification

Complete-system EMC verification Verify EMC with the converter installed in the final equipment and connected to a representative load. Wiring, assembly and the application affect the result. Follow the model's specified EMC conditions and any required external components; the linked EMI testing guidance does not certify the finished equipment.
