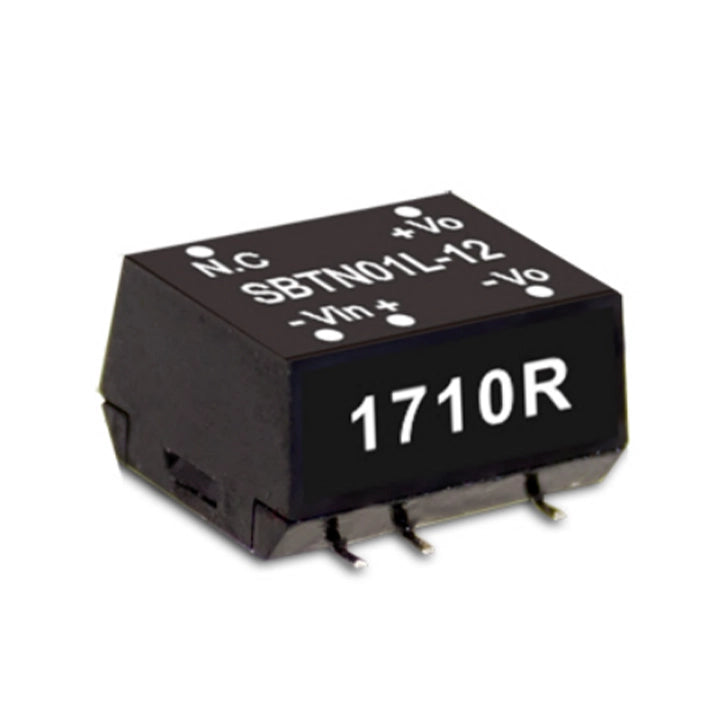

Description
Rated power: 1W Input voltage (range):24V(21.6~26.4V) Input current no-load: 11mA, full load: 54mA Output voltage: 12V Output current: 8.4 ~ 84mA Efficiency (TYP.):79% Capacitive load (maximum):220μF Performance difference:-40 ~ +90 ℃ working temperature, longest one second short circuit protection, standard product Size (mm):12.9X10.9X7.1
Click to download Airtac product catalog
Product Features
1. SMD package has industry standard pins, operating temperature range -40 ~ +90 ℃, conforming to BS EN/EN55032 radiation Class B, no additional components, and efficiency as high as 84%.
2. Protection: short circuit, 1.5KVDC input/output isolation (3KVDC input/output isolation optional), low cost, 3 years warranty.
