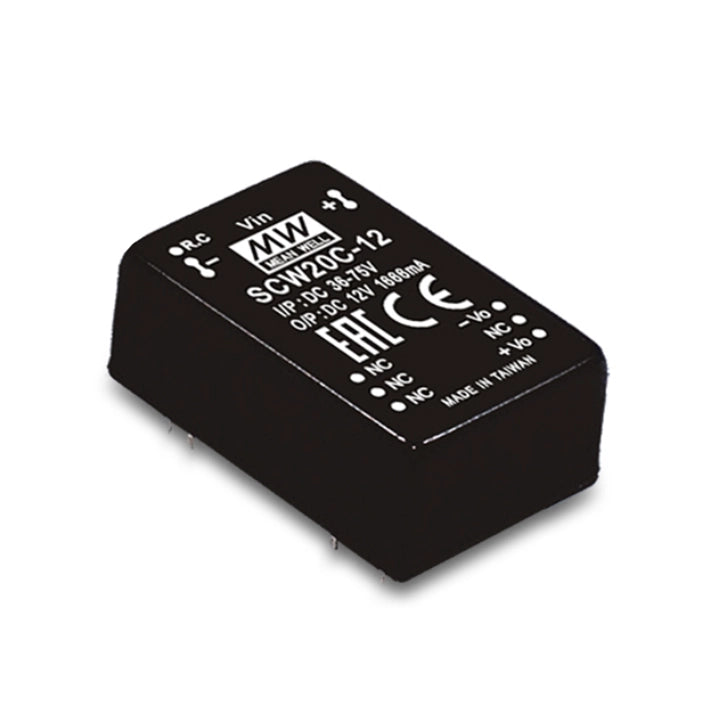

MEAN WELL SCW20 Series: Regulated Converter - SCW20C-12

Description

Rated power: 20W Input voltage (range):Normal 48V(36~75V) Input current no-load: 15mA, full load: 479mA Output voltage: 12V Output current: 1666mA Efficiency (TYP.):87% Capacitive load (maximum):220μF Size (mm):31.8X20.3X12.2

Click to download Airtac product catalog

Product Features

1. The DIP24 package has industry standard pins.

2, 2:1 wide input range, working temperature range -40 ~ +80 ℃, no minimum load.

3. Comply with BS EN/EN55032 Radiation Class A, additional components are required, and the efficiency is as high as 89%.

4. Protection: short circuit (continuous)/overload, 1.5KVDC input/output isolation, remote on/off, 3 years warranty.

MEAN WELL SCW20 Series: Regulated Converter - SCW20C-12

Product form

Rated power: 20W Input voltage (range):Normal 48V(36~75V) Input current no-load: 15mA, full load: 479mA Output voltage: 12V Output current: 1666mA... Read more

$60.86 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated power: 20W Input voltage (range):Normal 48V(36~75V) Input current no-load: 15mA, full load: 479mA Output voltage: 12V Output current: 1666mA Efficiency (TYP.):87% Capacitive load (maximum):220μF Size (mm):31.8X20.3X12.2

    Click to download Airtac product catalog

    Product Features

    1. The DIP24 package has industry standard pins.

    2, 2:1 wide input range, working temperature range -40 ~ +80 ℃, no minimum load.

    3. Comply with BS EN/EN55032 Radiation Class A, additional components are required, and the efficiency is as high as 89%.

    4. Protection: short circuit (continuous)/overload, 1.5KVDC input/output isolation, remote on/off, 3 years warranty.
