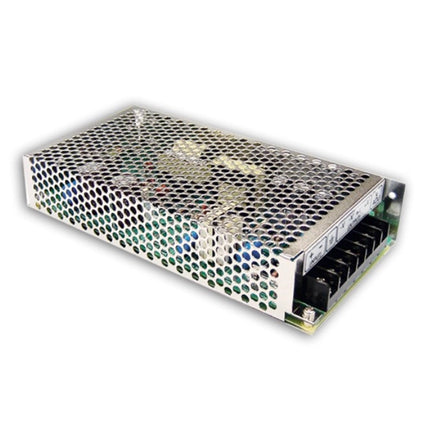

MEAN WELL SD-100C-5 is an enclosed, isolated single-output DC/DC converter delivering 5 V at up to 20 A, with a rated output of 100 W. The C-input version accepts 36–72 VDC. Its fanless metal enclosure uses free-air convection, with model-specific temperature derating and screw-terminal connections.
Product Datasheet
Download MEAN WELL SD-100 Datasheet (PDF)
The SD-100 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation.
Model and DC Output
| Full model |
SD-100C-5 |
| Series |
SD-100 |
| Input version |
C: 36–72 VDC |
| Output code |
5: 5 VDC |
| DC output voltage |
5 V |
| Rated output current |
20 A |
| Rated output power |
100 W |
| Output current range |
0–20 A |
| Output voltage adjustment |
4.5–5.5 V |
| Maximum ripple and noise |
100 mVp-p |
| Voltage tolerance |
±2.0% |
| Line regulation |
±0.5% |
| Load regulation |
±0.5% |
Input and Conversion Characteristics
| Permitted input voltage |
36–72 VDC |
| Typical efficiency |
75% |
| Typical DC input current |
2.4 A at 48 VDC |
| Cooling |
Free-air convection; fanless |
| Input filtering |
Built-in EMI filter |
| Catalogue input-range feature |
2:1 wide input range |
Unless otherwise specified, the catalogue parameters use 48 VDC input, rated load and 25°C ambient. Select the input version before wiring; the input range is specific to the letter in the complete model number.
Ripple and noise are measured with 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation.
Protection
| Short-circuit protection |
Included |
| Overload threshold |
105–135% of rated output power |
| Overload response |
Hiccup mode; automatic recovery after the fault is removed |
| Overvoltage threshold |
5.75–6.75 V at 10% load |
| Overvoltage response |
Hiccup mode; automatic recovery after the fault is removed |
Operate within both the output current and output power ratings; the overload threshold is a protection characteristic, not a continuous or timed peak-output rating.
Environment and Derating
| Working ambient temperature |
−10 to +60°C, subject to derating |
| Working humidity |
20–90% RH, non-condensing |
| Storage temperature / humidity |
−20 to +85°C / 10–95% RH, non-condensing |
| Temperature coefficient |
±0.03%/°C over 0–50°C |
| Vibration |
10–500 Hz; 2 G; 10 min/cycle; 60 min along each X, Y and Z axis |
The low-temperature curve rises from 80% load at −10°C to 100% at 0°C. The C/D 5 V and 12 V curve shows full load through 40°C. Above 40°C, reduce the load along its descending curve; the applicable endpoints are 60°C vertical / 55°C horizontal.
Observe the corresponding horizontal/vertical curve when positioning the enclosure. The operating-temperature range does not mean full output is available at every temperature.
For fanless operation above 2000 m altitude, the catalogue note reduces the allowable ambient temperature by 3.5°C per additional 1000 m. This derating note does not independently specify a maximum installation altitude.
The input-voltage curve allows 80% load at 36 VDC, rising to 100% at 38 VDC and remaining at that input-based limit up to the top of the specified input range. Apply the temperature limit at the same time.
Mechanical Details and Terminal Connections
| Dimensions, L × W × H |
199 × 98 × 38 mm |
| Mechanical drawing reference |
Case No. 902; dimensions in mm, general tolerance ±1 mm |
| Unit mass |
650 g; catalogue PACKING reference per unit |
| Nominal switching frequency in block diagram |
83 kHz |
| Terminal 1 |
DC input V+ |
| Terminal 2 |
DC input V− |
| Terminal 3 |
FG / chassis ground |
| Terminal 4 and 5 |
DC output −V |
| Terminal 6 and 7 |
DC output +V |
The drawing shows four bottom M3 positions on a 120 × 80 mm pattern and three side M3 positions, with 157 mm between the outer side positions.
Wire the numbered terminals according to this model-specific assignment, including the FG/chassis terminal. Maintain free-air convection around the enclosure. Use the output-voltage adjuster only within the specified adjustment range.
The catalogue mechanical pages specify the enclosure and screw-terminal connections. No separately orderable model-specific cable, terminal housing or mounting accessory is identified on these series pages.
Safety, EMC and Reliability
| Catalogue safety / design references |
EAC TP TC 004 approved; design reference to AS/NZS 62368.1 |
| Withstand voltage, input to output |
1.5 kVAC |
| Withstand voltage, input to FG |
1.5 kVAC |
| Withstand voltage, output to FG |
0.5 kVAC |
| Insulation resistance |
100 MΩ at 500 VDC, 25°C and 70% RH; input–output, input–FG and output–FG |
| EMC emission references |
BS EN/EN 55032 (CISPR 32) Class B; EAC TP TC 020 |
| EMC immunity references |
BS EN/EN 61000-4-2, -3, -4, -6 and -8; BS EN/EN 55035; EAC TP TC 020 |
| EMC environment in catalogue |
Light industry |
| MTBF, Telcordia SR-332 |
2600.2 thousand hours minimum |
| MTBF, MIL-HDBK-217F |
399.9 thousand hours minimum at 25°C |
| Catalogue warranty period |
2 years; subject to manufacturer terms |
Design references and the catalogue approval statements have different meanings. The converter is a component for installation in end equipment; these references do not certify the completed system.
The EMC test arrangement mounts the converter on a 360 × 360 × 1 mm metal plate. The manufacturer requires EMC compliance to be reconfirmed in the completed installation. MTBF figures are reliability calculations, not a service-life guarantee.
