Description

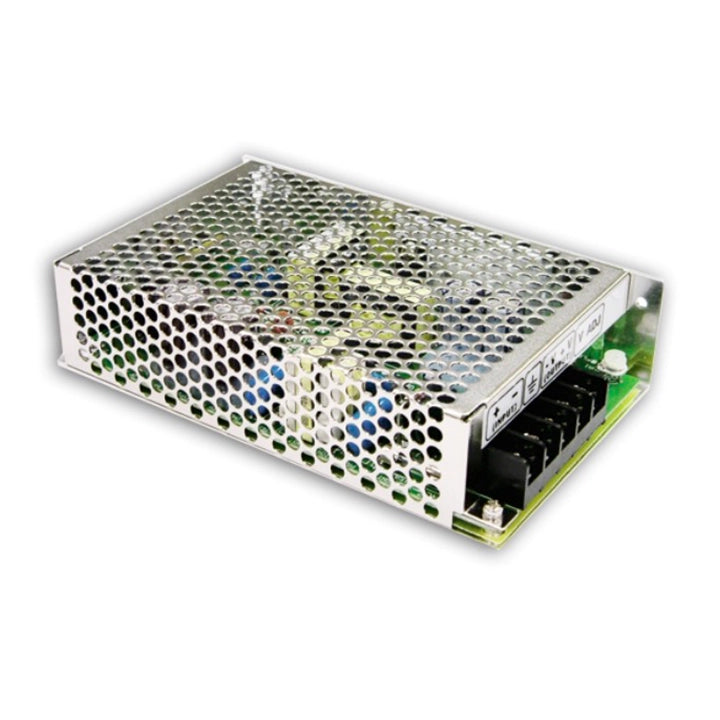

Output voltage: 5V Output current: 0 ~ 10A Output power rating: 50W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 36 ~ 72VDC Input efficiency (Typ.):76% Input DC current: 1.5A/48V Size (mm):159X97X38
Product Features
1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000).
2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000).
3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W).
4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200).
5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only).
6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000).
7. Built-in remote control on/off and remote sensing function (SD-500/1000).
8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
