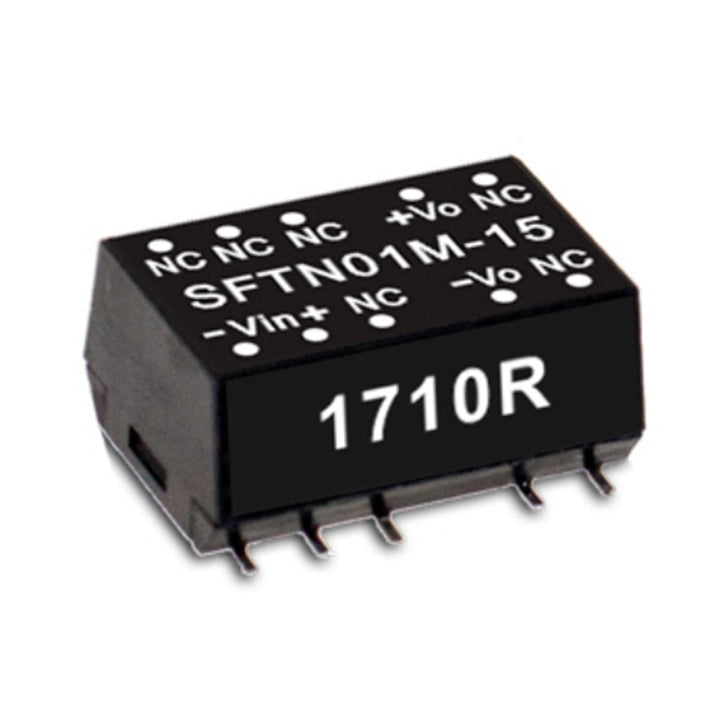

MEAN WELL SFTN01 Series: DC-DC Unregulated Converter - SFTN01M-15

Description

Rated power: 1W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 13mA, full load: 102mA Output voltage: 15V Output current: 6.7 ~ 67mA Efficiency (TYP.):82% Capacitive load (maximum):220μF Performance difference:-40 ~ +90 ℃ working temperature, longest one second short circuit protection, standard product Size (mm):15.24X10.7X7.1

Click to download Airtac product catalog

Product Features

1. SMD package has industry standard pins, operating temperature range -40 ~ +90 ℃, conforming to BS EN/EN55032 radiation Class B, no additional components, and efficiency as high as 82%.

2. Protection: short circuit, 3KVDC input/output isolation, low cost, 3 years warranty.

MEAN WELL SFTN01 Series: DC-DC Unregulated Converter - SFTN01M-15

Product form

Rated power: 1W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 13mA, full load: 102mA Output voltage: 15V Output current: 6.7... Read more

$13.29 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated power: 1W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 13mA, full load: 102mA Output voltage: 15V Output current: 6.7 ~ 67mA Efficiency (TYP.):82% Capacitive load (maximum):220μF Performance difference:-40 ~ +90 ℃ working temperature, longest one second short circuit protection, standard product Size (mm):15.24X10.7X7.1

    Click to download Airtac product catalog

    Product Features

    1. SMD package has industry standard pins, operating temperature range -40 ~ +90 ℃, conforming to BS EN/EN55032 radiation Class B, no additional components, and efficiency as high as 82%.

    2. Protection: short circuit, 3KVDC input/output isolation, low cost, 3 years warranty.
