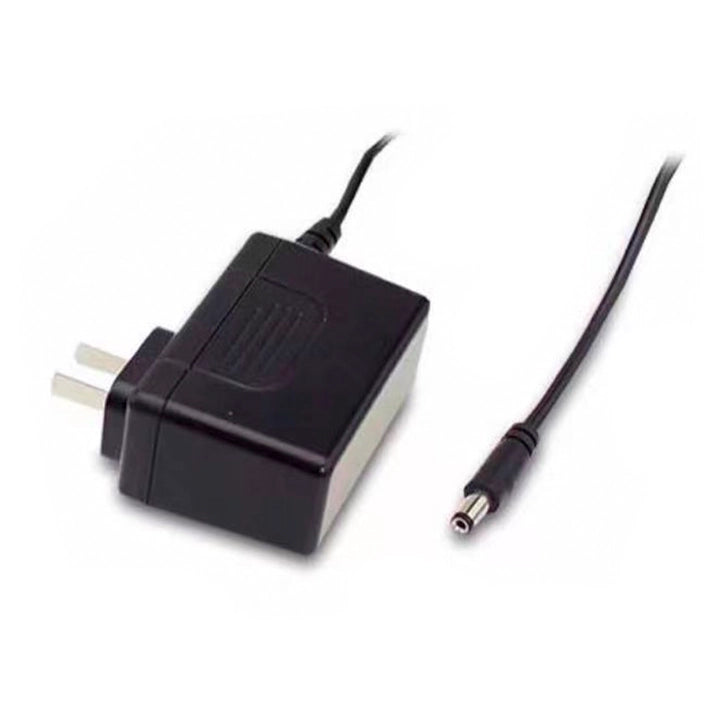

MEAN WELL SGA25U12-P1J supplies 12 V at up to 2.08 A, with a catalogue-rated output of 25 W. This slim Class II wall-plug AC/DC adapter has an integral two-pole USA AC plug and a centre-positive P1J output. Select the load within the current, power and temperature limits.
Product Datasheet
Download MEAN WELL SGA25U Datasheet (PDF)
The SGA25U section is on PDF pages 8, 9, 10. Refer to the complete mechanical drawings and notes when planning installation.
Model and Output
| Complete model |
SGA25U12-P1J. |
| Series and format |
SGA25U single-output slim wall-plug AC/DC power adapter. |
| Model code |
SGA denotes the adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 12 denotes 12 V output; P1J specifies the standard centre-positive tuning-fork DC plug. |
| Safety model number |
SGA25U12. |
| DC output voltage |
12 VDC. |
| Rated output current |
2.08 A. |
| Output current range |
0–2.08 A. |
| Catalogue-rated output power, maximum |
25 W, subject to the applicable derating curve. |
| Ripple and noise, maximum |
80 mVp-p. |
| Voltage tolerance |
±3.0%. |
| Line regulation |
±1.0%. |
| Load regulation |
±3.0%. |
| Efficiency, typical |
86%. |
Keep the load within the stated output voltage, current and power limits simultaneously.
Input and Energy
| Input voltage |
90–264 VAC, full range. |
| Frequency |
47–63 Hz. |
| AC connection |
Integral two-pole USA plug; Class II, without an earth pin or FG. |
| AC current |
0.65 A at 115 VAC; 0.25 A at 230 VAC. |
| Cold-start inrush, maximum |
40 A at 115 VAC; 60 A at 230 VAC. |
| Set-up / rise / hold-up time |
300 / 60 / 18 ms at both 115 VAC and 230 VAC, at full load. |
| Leakage current, maximum |
0.25 mA at 240 VAC. |
| No-load consumption |
<0.075 W. |
| Energy efficiency |
Level VI; EISA 2007 / DoE. |
Use a mains socket suitable for the integral plug and the input rating. The AC plug is built into the body.
Protection
| Short circuit / overload |
Short-circuit protection is listed. Overload threshold: 120–180% of rated output power; hiccup mode, automatically recovering after the fault condition is removed. |
| Overvoltage |
110–140% of rated output voltage; zener-diode clamping with output shorting. |
Derating and Environment
| Working-temperature specification |
−20 to +60°C, subject to the family-specific derating curve and limits below. |
| Temperature-load curve |
Full load from −20 to +40°C, reducing to 70% at +50°C. The supplied curve ends at +50°C; confirm the permitted load with the manufacturer before operating above +50°C. |
| Static input-voltage curve |
100% load across 90–264 VAC; temperature derating still applies. |
| Working humidity |
20–90% RH, non-condensing. |
| Storage temperature and humidity |
−20 to +85°C; 10–95% RH. |
| Temperature coefficient |
±0.03%/°C over 0–40°C. |
| Vibration |
10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. |
Mechanical Details and Connection
| Body dimensions, L × W × H |
75.5 × 32 × 47.5 mm. Allow additional space for the projecting AC pins, cable and DC plug. |
| Enclosure |
Fully enclosed, 94V-0 flame-retardant plastic case. |
| Output cable |
UL1571, 16 AWG; 1000 +150/−0 mm. |
| Standard DC plug |
P1J tuning-fork type: 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. |
| DC polarity |
Centre positive (C+); outside negative. |
| Catalogue single-unit weight |
158 g, explicitly listed in PACKING; a catalogue packing reference per unit, not a measured shipment weight. |
| Carton packing |
60 pieces / 10.5 kg per carton. |
Check the mating socket dimensions and polarity before connecting equipment. Follow the supplied product marking and installation instructions.
Optional Plug and Cable Configurations
Other DC plug types and cable types are available by customer request. Specify the required connector, polarity, cable and load current, and obtain the confirmed ordering configuration before purchase. These are custom alternatives to this model’s standard P1J output.
Safety, Isolation and EMC
| Listed safety standard |
The specification table lists TUV EN60950-1 approval. |
| Input class and LPS |
Class II, without FG; the series lists Limited Power Source (LPS) compliance. |
| Withstand voltage |
Input to output: 4242 VDC. |
| Insulation resistance |
Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. |
| EMC emissions |
EN55022 Class B; EN61000-3-2 and EN61000-3-3. |
| EMC immunity |
EN61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level, criteria A. |
The adapter is an independent unit; the final equipment still requires confirmation that the complete system meets the applicable EMC requirements.
Reliability, Applications and Measurement Conditions
| Service life |
3 years at 100% load, 40°C and 8 operating hours per day. |
| MTBF, minimum |
450 thousand hours, MIL-HDBK-217F at 25°C. |
| Manufacturer warranty |
The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. |
Listed applications include consumer electronics, telecommunications, office equipment and industrial equipment. Select this complete model for the required output and connection.
Unless otherwise specified, parameters are measured at 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is measured at the plug terminal at 50% load.
Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation.
Line regulation is measured from low to high input at rated load. Load regulation is measured from 10% to 100% of rated load. Check the static input and temperature curves together when selecting the operating load.
