MEAN WELL SI06W8 series: isolated single-output DC-DC converter - SI06W8-05

Description

MEAN WELL SI06W8-05 — DC-DC converter

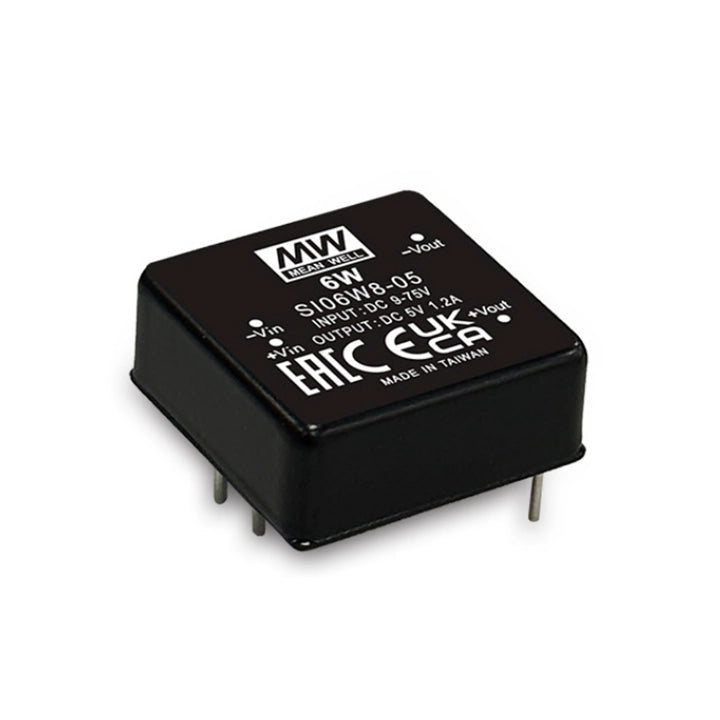

MEAN WELL SI06W8-05 is an isolated, regulated single-output DC-DC converter providing 5 V DC, with a specified current range of 0–1200 mA. Its 1 × 1 inch DIP package accepts 9–75 V DC with an 8:1 input range and provides 3 kV DC input-to-output isolation. This standard version has no remote-control function.

Download MEAN WELL SI06W8 Datasheet (PDF)

Series section: PDF pages 1–6.

Model and output specifications

Parameter Specification
Complete model SI06W8-05
Model selection SI06W8 identifies the single-output 6 W converter series. W8 specifies the 8:1 input range. Output code 05 identifies 5 V DC. The blank final suffix selects the standard version without remote control.
Output voltage 5 V DC.
Output current range 0–1200 mA. No minimum load is required.
Rated power and load limit 6 W; observe both the specified current limit and rated-power limit.
Voltage accuracy ±2%.
Line regulation ±0.2%, measured from low to high input voltage at rated load.
Load regulation ±0.5%, measured over 0–100% of rated load.
Ripple and noise 100 mVp-p, measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Maximum capacitive load 1000 µF.
Typical switching frequency 300 kHz, PWM.

Input, protection and control

Parameter Specification
Input voltage 9–75 V DC, 8:1 operating range. Listed nominal inputs: 12, 24, 36, 48 and 72 V DC.
Input current 5 mA at no load and 309 mA at full load, at the specified normal 24 V DC input condition.
Typical efficiency 81%, at the stated reference test conditions.
Input surge 100 V DC for 100 ms maximum; this is a surge limit, not the continuous input rating.
Input filter and fuse Capacitor-network input filter. The manufacturer recommends a 2 A slow-blow fuse.
Short-circuit protection Continuous protection with automatic recovery.
Overload protection 110–230% of rated output power; recovers automatically after the fault condition is removed.
Overvoltage protection Clamping by TVS diode.
Input undervoltage lockout Start-up threshold: 8.8 V; shutdown threshold: 8.5 V. Maintain the specified 9–75 V DC range for normal operation.
Remote control Not fitted in this standard version; pin 3 is N.P. The separately specified R version provides remote ON/OFF control.

Operating conditions and isolation

Parameter Specification
Operating temperature and derating −40 to +90°C with free-air convection. The natural-convection curve allows 100% load through +71°C, 50% at +85°C and 20% at +90°C. Follow the curve between these points; +90°C is the operating limit.
Maximum case temperature +105°C. This is a case-temperature limit, not an ambient-temperature rating.
Working humidity 5–95% RH, non-condensing.
Storage conditions −55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient ±0.05%/°C over 0–71°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.
Input-to-output withstand voltage 3 kV DC (3000 V DC).
Isolation resistance 1000 MΩ between input and output, measured at 500 V DC, 25°C and 70% RH.
Typical isolation capacitance 1000 pF between input and output.
Reference test conditions Unless otherwise specified, parameters are measured at normal 24 V DC input, rated load, 25°C and 70% RH.

Dimensions and PCB installation

Parameter Specification
Package and case DIP 1 × 1 inch package with industry-standard pinout; black-coated copper case with a non-conductive base.
Dimensions 25.4 × 25.4 × 10.2 mm (L × W × H). General dimensional tolerance: ±0.5 mm.
Pin assignment Pin 1 = +Vin; pin 2 = −Vin; pin 3 = N.P.; pin 4 = −Vout; pin 5 = N.P.; pin 6 = +Vout. Check the bottom-view pin drawing against the top-view PCB footprint.
PCB layout The drawing uses a 2.54 mm grid and shows 20.32 mm between the pin rows. Use the full mechanical drawing for the unequal pin spacing. Pin diameter: 1.0 ±0.1 mm; lead length: 5.80 mm. The PCB drawing specifies a 1.2 mm hole diameter with +0.2/−0.1 mm tolerance.
Soldering limit 1–3 seconds at 260°C maximum, measured 1.5 mm from the case.
Unit weight reference 20 g per converter, as explicitly stated in the catalog packing entry.

EMC and reference information

Parameter Specification
Safety standard EAC TP TC 004 approved, as listed in the datasheet.
Radiated emissions BS EN/EN 55032 (CISPR 32): Class A without external components; Class B with the specified external components.
External EMC components For the radiated Class B reference circuit on PDF page 5: C1 and C2 are each 2.2 µF / 100 V; C3 and C4 are each listed as 152 pF / 5 kV; L1 is a 10 µH common choke. Follow that circuit and verify the final equipment’s EMC compliance. These are external design components, not an included accessory kit.
EMC immunity BS EN/EN 61000-4-2: contact ±4 kV; -4-3: 3 V/m; -4-4: ±0.5 kV; -4-5: line-to-line ±0.5 kV; -4-6: 3 Vrms; -4-8: 1 A/m.
Reliability reference MTBF > 400 khrs to MIL-HDBK-217F at 25°C. This is a reliability reference value.
Manufacturer warranty reference The catalog states a 3-year manufacturer warranty.
