MEAN WELL SKA40 series: Isolated single-output DC-DC converter - SKA40C-05

Description

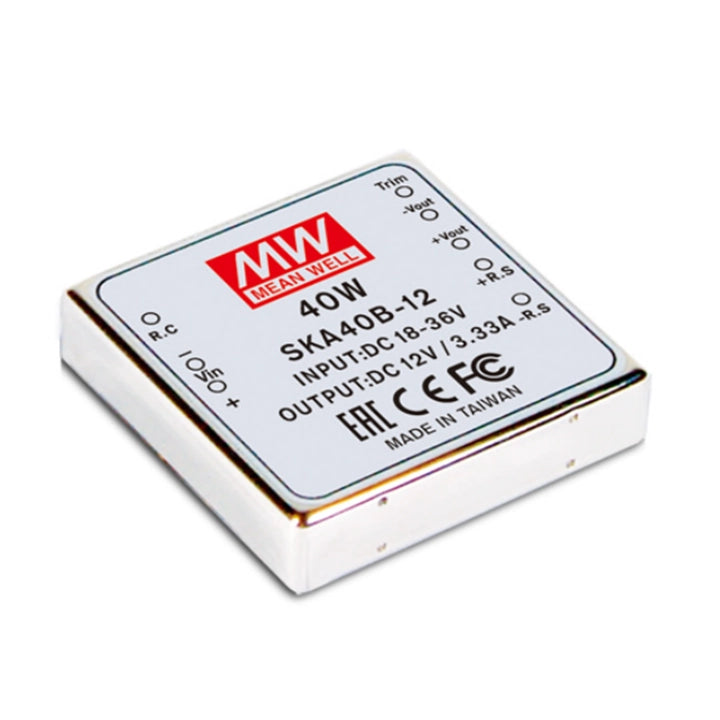

SKA40C-05 — Isolated single-output DC-DC converter

MEAN WELL SKA40C-05 is an isolated, regulated single-output DC-DC converter with 36–75 V DC input and 5 V DC output. Its rated output is 35 W with a 0.7–7 A output-current range. Remote ON/OFF, remote sense and external trimming are built in.

Download MEAN WELL SKA40 Datasheet (PDF)

Series section: PDF pages 6–7.

Model and output specifications

Output voltage 5 V DC.
Output current range 0.7–7 A. Maintain at least 0.7 A output load.
Rated output power 35 W.
Voltage accuracy ±2.0%.
Line regulation ±0.5%; measured from low to high input at rated load.
Load regulation ±0.5%; measured from 10% to 100% of rated load.
Ripple and noise 60 mVp-p maximum. Measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Switching frequency 200 kHz minimum.
Maximum capacitive load 1000 µF.
Output adjustment ±10% typical. Connect a trim resistor between TRIM (pin 8) and −Vout (pin 7) to raise the output, or between TRIM and +Vout (pin 6) to lower it. The drawing shows a 500 kΩ trimpot across the output with its wiper connected to TRIM.
Remote sense Built-in remote sense: pin 4 is −R.S and pin 5 is +R.S.

Input, control and protection

Input voltage 36–75 V DC; 2:1 input range.
Typical efficiency 91% under the reference test conditions.
Input DC current 1000 mA at full load; 65 mA at no load.
Input filter and fuse Pi-network input filter. An input fuse is recommended.
Remote ON/OFF R.C (pin 1), referenced to −Vin (pin 2): ON at greater than 2.5 V up to 75 V DC, or with the control open; OFF below 0.5 V DC, or shorted to −Vin.
Overcurrent protection 110–180% of rated output power; hiccup mode with automatic recovery after the fault is removed.
Short-circuit protection All outputs are protected by hiccup mode, with automatic recovery after the fault is removed.
Fault-duration limit Do not operate in overload or short circuit for more than 30 seconds.
Output overvoltage protection 7–8.95 V; clamping by a TVS diode.

Operating conditions and isolation

Operating temperature and cooling −40 to +80°C; free-air convection. Apply the stated load derating.
Load derating The graph permits 100% load through +60°C, decreasing to 50% at +80°C. The operating range ends at +80°C; the further graph extension does not extend this rating.
Working humidity 20–90% RH, non-condensing.
Storage conditions −55 to +105°C; 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.
Reference test conditions Normal input, rated load, 25°C and 70% RH, unless otherwise specified.
Input-to-output withstand voltage 1.5 kV DC.
Isolation resistance 100 MΩ between input and output, tested at 500 V DC, 25°C and 70% RH.

Mechanical design and installation

Dimensions 50.8 × 50.8 × 11.0 mm (L × W × H).
Pin assignment Pin 1: R.C; pin 2: −Vin; pin 3: +Vin; pin 4: −R.S; pin 5: +R.S; pin 6: +Vout; pin 7: −Vout; pin 8: TRIM. Check the bottom-view orientation before PCB assembly.
Mechanical drawing details Six-sided shielded metal case. Lead projection 5.8 mm; pin diameter 1.0 mm (the inch annotation is 0.04 ±0.005 in). Pin-row spacing 45.7 mm. Use the complete bottom-view drawing for the PCB footprint.
Unit weight reference 50 g, stated as a catalog packing reference per unit.
Manufacturer packaging reference 5 pieces per tube; tube gross weight 320 g. Up to 200 pieces per carton; carton gross weight 13.6 kg. These are manufacturer packaging references.

Standards and manufacturer references

Safety standards EAC TP TC 020/2011 approved. EAC TP TC 004 approval is listed for this 48 V input type.
EMC emission BS EN/EN55032 Class A, FCC Part 15 Class A and EAC TP TC 020.
EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6 and -8; light-industry level, criteria A; EAC TP TC 020.
Catalog markings FCC, EAC, CE and UKCA are shown in the catalog.
Manufacturing test 100% burn-in test.
Manufacturer warranty reference The catalog states a 2-year manufacturer warranty.
Optional versions The series lists 3.3 V and 9 V output alternatives. These are separate factory configurations, not adjustment settings or an alternate rating of this model; confirm the complete ordering code with the manufacturer.
