Description

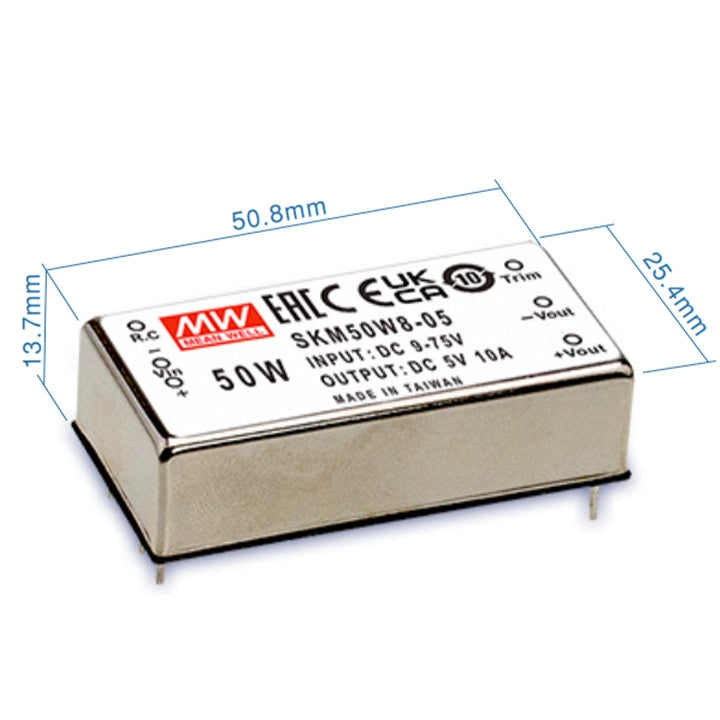

Rated power: 50W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 2367mA Output voltage: 5V Output current: 0 ~ 10A Efficiency (TYP.):88% Capacitive load (maximum):680μF Size (mm):50.8X25.4X13.7
Click to download Airtac product catalog
Product Features
1. The DIP2 "x1" package has industry standard pins.
2.8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required.
3. Comply with BS EN/EN55032 radiation Class A, no additional parts are required, and the efficiency is as high as 90%.
4. Protection function: short circuit (continuous)/overload/overvoltage/undervoltage lockout, 3KVdc input/output isolation, remote on/off control, output adjustable range (± 10%),3-year warranty
