MEAN WELL SKM10W8 series: isolated single-output DC-DC converter - SKM10W8-05

Description

MEAN WELL SKM10W8-05 — DC-DC converter

MEAN WELL SKM10W8-05 is an isolated, regulated DC-DC converter with a 5 V DC single output and a 9–75 V DC input range. Its 1 × 1 inch DIP package supports PCB integration in industrial control, telecom/datacom, wireless networks and instrumentation. Remote ON/OFF control is built in.

Download MEAN WELL SKM10W8 Datasheet (PDF)

Series section: PDF pages 41–47.

Model and output specifications

Parameter Specification
Complete model SKM10W8-05
Output configuration Single regulated output.
Output voltage 5 V DC.
Output current range 0–2000 mA. No minimum load is required.
Rated power and load limit 10 W series rating. Observe both the output-current limits and the rated total power.
Voltage accuracy ±1.5%.
Line regulation ±0.5%, measured from low to high input voltage at rated load.
Load regulation ±0.5%, measured over 0–100% of rated load.
Ripple and noise 120 mVp-p, measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Maximum capacitive load 2000 µF.
Typical switching frequency 440 kHz.

Input and protection

Parameter Specification
Input voltage 9–75 V DC; 8:1 range. Nominal input voltages: 12, 24, 36, 48, 72 V DC.
Input current 10 mA at no load; 248 mA at full load, at the reference test conditions.
Typical efficiency 84% at the reference test conditions.
Input filter and fuse Pi-type input filter. Recommended external fuse: 3 A, time-delay/slow-blow type.
Input surge limit 100 V DC for 100 ms maximum; not a continuous input rating.
Short-circuit protection Continuous protection with automatic recovery.
Overload protection 110–200% of rated output power; recovers automatically after the fault is removed.
Overvoltage protection Zener-diode clamp.
Input undervoltage lockout Start-up threshold: 8.5 V DC; shutdown threshold: 8.1 V DC. These do not extend the normal input-voltage range.

Control and adjustment

Parameter Specification
Remote ON/OFF control R.C. is referenced to −Vin. Power ON: Above 3.5 V up to 75 V, or open circuit. Power OFF: Below 1 V, or short circuit.
External output trim ±10% typical adjustment range. Connect the external resistor from Trim to −Vout for trim-up or from Trim to +Vout for trim-down. Observe the rated current and power limits.
Trim design reference R1 = 2.32 kΩ; R2 = 2.32 kΩ; R3 = 0 kΩ; Rt = 8.2 kΩ; Vref = 2.5 V. Use the corresponding datasheet equations to calculate the external resistor; these internal design constants are not supplied accessories.

Operating conditions and isolation

Parameter Specification
Operating temperature and cooling −40 to +90°C, with free-air convection and load derating.
Load derating Natural convection: 100% load through +73°C, 60% at +85°C and 50% at +90°C. Ambient operation remains limited to −40 to +90°C.
Maximum case temperature +105°C; this is the case limit, not an ambient-temperature rating.
Working humidity 20–90% RH, non-condensing.
Storage conditions −55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient ±0.03%/°C over 0–73°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes.
Input-to-output withstand voltage 3 kV DC (3000 V DC).
Isolation resistance 1000 MΩ between input and output, at 500 V DC, 25°C and 70% RH.
Typical isolation capacitance 1000 pF between input and output.
Reference test conditions Unless otherwise specified: normal 48 V DC input, rated load, 25°C and 70% RH.

Dimensions and PCB installation

Parameter Specification
Package and construction DIP 1 × 1 inch package with industry-standard pinout. Five-sided shielded metal case.

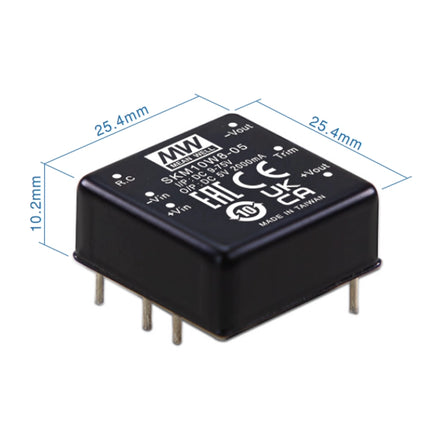

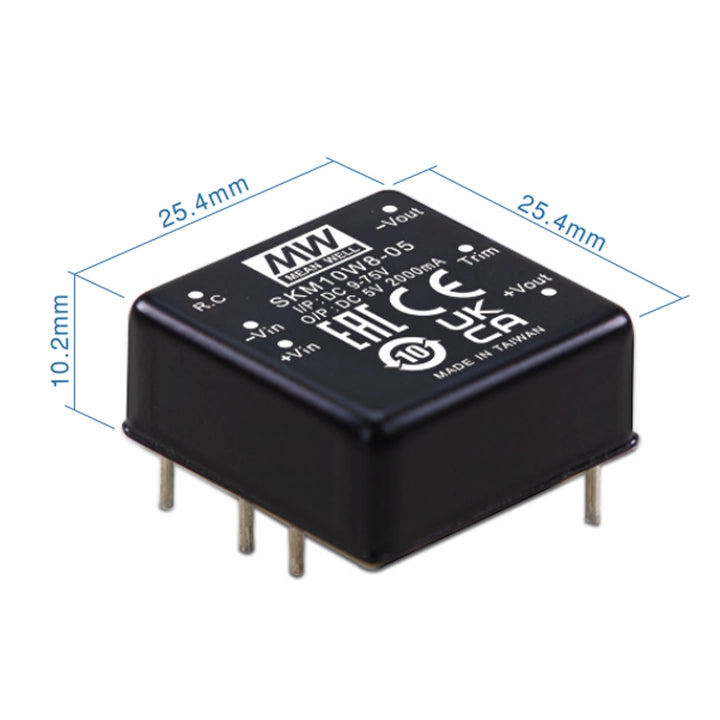

Dimensions 25.4 × 25.4 × 10.2 mm (L × W × H).
Pin assignment 1 +Vin; 2 −Vin; 3 Remote ON/OFF; 4 −Vout; 5 Trim; 6 +Vout. Check the bottom-view pin drawing against the top-view PCB footprint.
PCB layout Pin diameter: 1 ±0.1 mm. Lead length: 5.8 mm minimum. PCB hole diameter: 1.2 mm (+0.2/−0.1 mm). Use the datasheet footprint for the unequal pin spacing, 2.54 mm grid and 20.32 mm spacing between pin rows.
Soldering limit 3–5 seconds at 260°C maximum, measured 1.5 mm from the case.
Unit weight reference 18 g, catalog packing reference per unit.
Catalog packing 12 pieces per tube; 600 pieces per carton.

EMC and reference information

Parameter Specification
Safety standards EAC TP TC 020/2011 approved.
EMC emission conditions Conducted and radiated emissions: BS EN/EN55032 (CISPR32) Class A with the specified external components. Verify the completed equipment against the applicable EMC requirements.
External EMC circuit Conducted/radiated Class A reference: F1 = 3 A slow-blow; C1 = 4.7 µF / 100 V; C2 = 1000 pF / 4 kV. Follow the complete reference circuit, including the capacitor across the isolation barrier. External components are not an included kit.
EMC immunity BS EN/EN 61000-4-2: Level 3, ±8 kV air and Level 2, ±4 kV contact; -4-3: Level 2, 3 V/m; -4-4: Level 1, 0.5 kV; -4-5: Level 2, 0.5 kV line-to-line; -4-6: Level 2, 3 V (e.m.f.).
Reliability reference MTBF: >2381 khrs to MIL-HDBK-217F at 25°C. This is a reliability reference value.
Manufacturer warranty reference The catalog states a 3-year manufacturer warranty.
