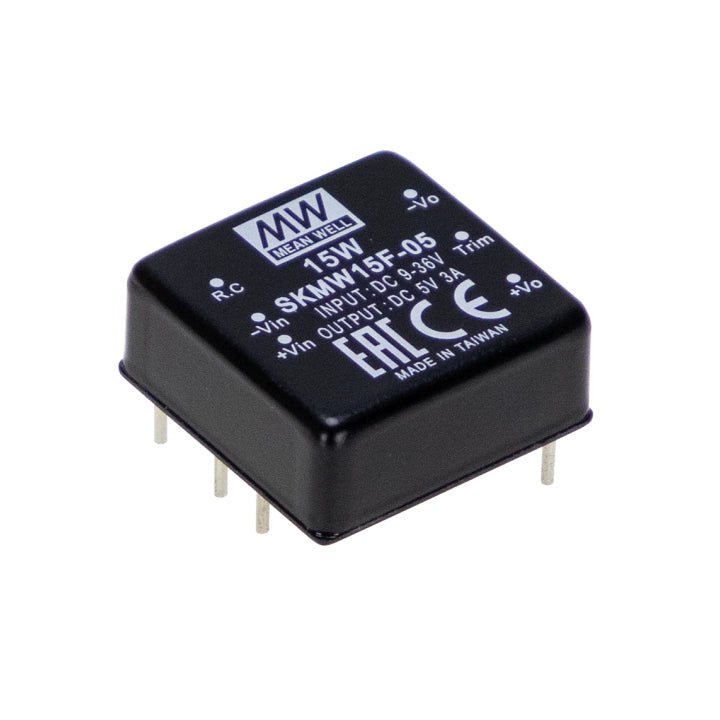

MEAN WELL SKMW15 Series: Regulated Voltage Converter - SKMW15F-05

Description

Series: Single group output Rated power: 15W Input voltage (range):Normal 24V(9~36V) Input current no-load: 80mA, full load: 730mA Output voltage: 5V Output current: 0 ~ 3000mA Efficiency (TYP.):85% Capacitive load (max):820 μF Size (mm):25.4X25.4X10.2

Click to download Airtac product catalog

Product Features

1. The DIP 1 "X1" package has industry standard pins.

2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required.

3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 89%.

4. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 3KVDC input/output isolation, 3 years warranty.

MEAN WELL SKMW15 Series: Regulated Voltage Converter - SKMW15F-05

Product form

Series: Single group output Rated power: 15W Input voltage (range):Normal 24V(9~36V) Input current no-load: 80mA, full load: 730mA Output voltage:... Read more

$64.85 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 15W Input voltage (range):Normal 24V(9~36V) Input current no-load: 80mA, full load: 730mA Output voltage: 5V Output current: 0 ~ 3000mA Efficiency (TYP.):85% Capacitive load (max):820 μF Size (mm):25.4X25.4X10.2

    Click to download Airtac product catalog

    Product Features

    1. The DIP 1 "X1" package has industry standard pins.

    2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required.

    3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 89%.

    4. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 3KVDC input/output isolation, 3 years warranty.
