Description

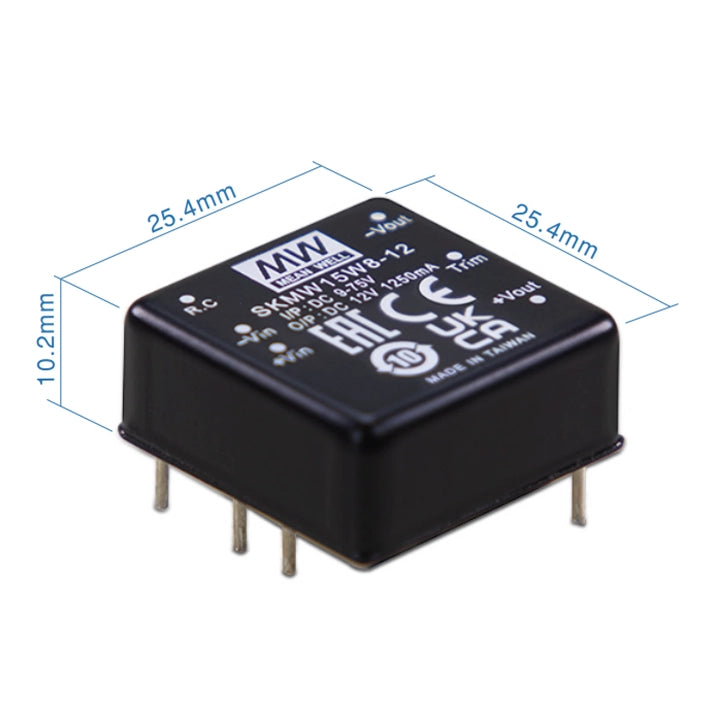

Series: Single group output Rated power: 15W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 7mA, full load: 718mA Output voltage: 12V Output current: 0 ~ 1250mA Efficiency (TYP.):87% Capacitive load (max):330μF Size (mm):25.4X25.4X10.2
Click to download Airtac product catalog
Product Features
1. The DIP 1 "X1" package has industry standard pins.
2.8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required.
3. Comply with BS EN/EN55032 Radiation Class A, no additional parts are required, and the efficiency is as high as 88%.
4. Protection function: short circuit (continuous)/overload/overvoltage/undervoltage lockout, 3KVdc input/output isolation, remote on/off control, output adjustable range (± 10%),3-year warranty.
