MEAN WELL SKMW30W8 series: voltage regulator converter - SKMW30W8-05

Description

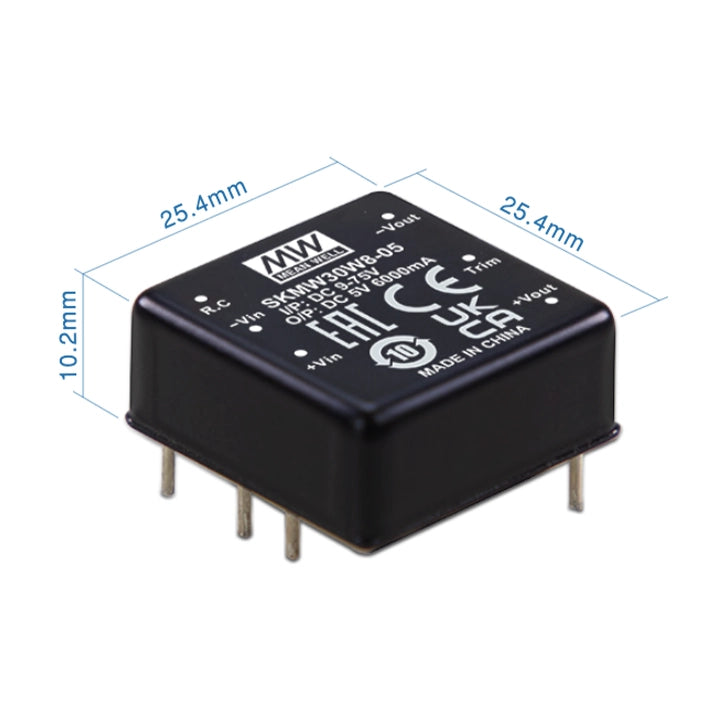

Series: Single group output Rated power: 30W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 719mA Output voltage: 5V Output current: 0 ~ 6000mA Efficiency (TYP.):87% Capacitive load (maximum):6000μF Size (mm):25.4X25.4X10.2

Click to download Airtac product catalog

Product Features

1. The DIP 1 "X1" package has industry standard pins.

2, 8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required, efficiency as high as 90%.

3. Protection function: short circuit (continuous)/over load/over voltage/over temperature/under voltage lockout, 1.5KVdc input/output isolation.

4. Remote on/off control, adjustable output range (± 10%),3-year warranty.

MEAN WELL SKMW30W8 series: voltage regulator converter - SKMW30W8-05

Product form

Series: Single group output Rated power: 30W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 719mA Output voltage:... Read more

$63.86 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 30W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 719mA Output voltage: 5V Output current: 0 ~ 6000mA Efficiency (TYP.):87% Capacitive load (maximum):6000μF Size (mm):25.4X25.4X10.2

    Click to download Airtac product catalog

    Product Features

    1. The DIP 1 "X1" package has industry standard pins.

    2, 8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required, efficiency as high as 90%.

    3. Protection function: short circuit (continuous)/over load/over voltage/over temperature/under voltage lockout, 1.5KVdc input/output isolation.

    4. Remote on/off control, adjustable output range (± 10%),3-year warranty.
