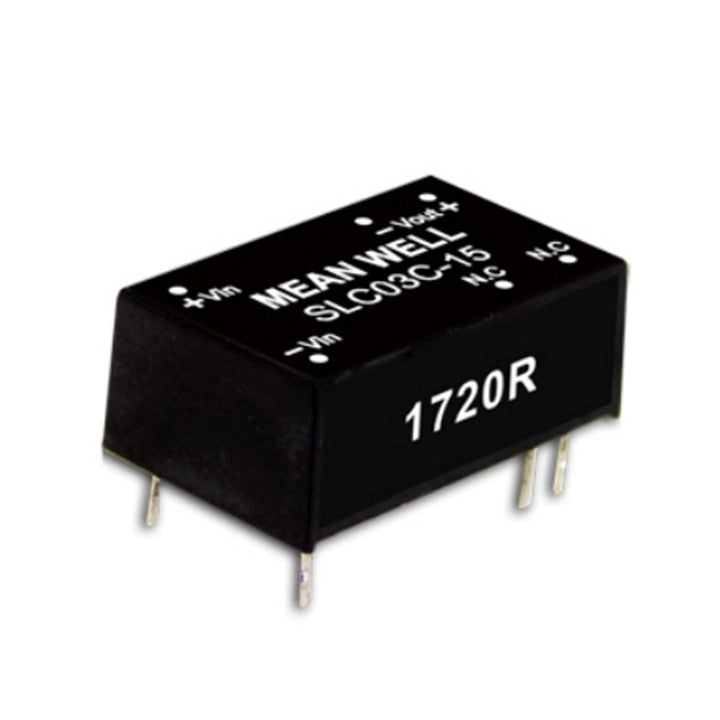

MEAN WELL SLC03 Series: DC-DC Regulated Converter - SLC03C-05

Description

Series: Single group output Rated power: 3W Input voltage (range):48V(36~75V) Input current no-load: 7mA, full load: 77mA Output voltage: 5V Output current: 600mA Efficiency (TYP.):81% Capacitive load (max):1000μF Size (mm):22.1X13.8X8.55

Click to download Airtac product catalog

Product Features

1. The DIP16 package has industry standard pins.

2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load.

3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%.

4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.

MEAN WELL SLC03 Series: DC-DC Regulated Converter - SLC03C-05

Product form

Series: Single group output Rated power: 3W Input voltage (range):48V(36~75V) Input current no-load: 7mA, full load: 77mA Output voltage: 5V... Read more

$41.14 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 3W Input voltage (range):48V(36~75V) Input current no-load: 7mA, full load: 77mA Output voltage: 5V Output current: 600mA Efficiency (TYP.):81% Capacitive load (max):1000μF Size (mm):22.1X13.8X8.55

    Click to download Airtac product catalog

    Product Features

    1. The DIP16 package has industry standard pins.

    2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load.

    3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%.

    4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
