SLC03C-12 — Isolated regulated single-output DC-DC converter

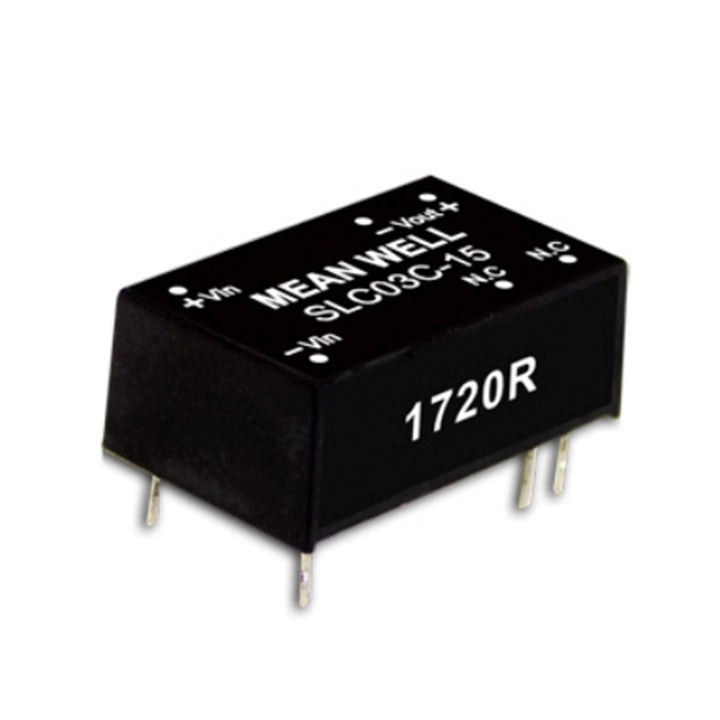

MEAN WELL SLC03C-12 is a 3 W isolated, regulated single-output DC-DC converter in a DIP16 package. It accepts 36–75 V DC and supplies 12 V DC, with up to 250 mA output. No minimum load is required. It is designed for industrial control, telecom/datacom equipment, wireless networks, instruments, analyzers, detectors and data switches.

Download MEAN WELL SLC03 Datasheet (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

Series section: PDF pages 3–7.

Output and model selection

Model	SLC03C-12
Output type	Isolated, regulated single output.
Output voltage	12 V DC.
Output current	0–250 mA; no minimum load required.
Rated output power	3 W.
Typical efficiency	82% at nominal input and rated load, 25°C and 70% RH.
Maximum capacitive load	470 µF.
Voltage accuracy	±2%.
Ripple and noise	50 mVp-p. Measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Line regulation	±0.2%, measured from low input to high input at rated load.
Load regulation	±0.5%, measured from 10% to 100% rated load.
Switching frequency	100 kHz typical.

Input and protection

Input voltage	36–75 V DC; 48 V DC nominal.
Input-range reference	Use the 36–75 V DC range stated in the model encoding and selection table. The common specification row gives a different lower limit; confirm the supplied ratings before operation outside 36–75 V DC.
Input current	7 mA at no load; 76 mA at full load.
Input surge voltage	100 V DC for 100 ms maximum.
Input filter and fuse	Internal capacitor filter. An external 200 mA slow-blow fuse is recommended.
Internal power dissipation	1000 mW.
Undervoltage lockout	Start-up voltage: 34 V DC. Shutdown voltage: 30 V DC.
Short-circuit protection	Continuous short-circuit protection with automatic recovery.
Overload protection	150–250% of rated output power; recovers automatically after the fault condition is removed.

Environment and cooling

Cooling	Free-air convection.
Operating temperature	−40°C to +85°C, subject to the load derating curve.
Load derating	Natural convection: 100% load through +71°C, reducing to 50% at +85°C. The plotted tail beyond +85°C does not extend the specified operating-temperature range.
Maximum case temperature	+100°C.
Working humidity	20–90% RH, non-condensing.
Storage temperature and humidity	−40°C to +105°C; 10–95% RH, non-condensing.
Temperature coefficient	0.03%/°C from 0°C to +80°C.
Vibration	10–500 Hz, 2G; 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.

Dimensions and installation

Dimensions	22.1 × 13.8 × 8.55 mm (L × W × H).
Case material	Non-conductive black plastic, UL 94V-0 rated.
Pin assignment	Bottom view: pin 1 = −Vin; pin 7 = N.C.; pin 8 = N.C.; pin 9 = +Vout; pin 10 = −Vout; pin 16 = +Vin. Do not use N.C. pins as output connections.
Mechanical drawing details	DIP16 package with industry-standard pinout. Pin-row spacing: 10.16 mm; lengthwise pin dimensions: 15.24 mm and 2.54 mm. Exposed pin length: 3.81 mm. Pin cross-section: 0.50 × 0.30 mm.
Mechanical tolerances	Drawing dimensions x.x: ±0.5 mm; x.xx: ±0.25 mm. Pin tolerance: ±0.07 mm.
Soldering	At 1.5 mm from the case, solder for 3–5 seconds at 265°C maximum.
Unit weight reference	4.5 g, catalog packing reference per unit; not a measured net shipping weight.
Standard tube packing	36 pieces per tube; one tube gross weight 220 g. Maximum 1800 pieces per carton, one carton gross weight 11.8 kg; carton 620 × 230 × 230 mm. Packaging gross weights are not individual product weights.

Isolation, compliance and manufacturer references

Input-to-output withstand voltage	1.5 kV DC.
Isolation resistance	100 MΩ between input and output, tested at 500 V DC, 25°C and 70% RH.
Isolation capacitance	80 pF typical.
Safety standard	EAC TP TC 020/2011 approved. EAC TP TC 004 approval applies to this 48 V input type.
Radiated emissions	BS EN/EN55032 (CISPR32) Class B without additional components.
Conducted emissions	The catalog conducted-emission entry is N/A; no conducted class is specified.
ESD immunity	BS EN/EN61000-4-2, Level 3, ±8 kV air discharge.
Radiated susceptibility	BS EN/EN61000-4-3, Level 2, 3 V/m.
EFT/burst immunity	BS EN/EN61000-4-4, Level 1, 0.5 kV; the external input-filter capacitor condition below applies.
Surge immunity	BS EN/EN61000-4-5, Level 2, 0.5 kV line-to-line; the external input-filter capacitor condition below applies.
Conducted immunity	BS EN/EN61000-4-6, Level 2, 3 V.
Magnetic-field immunity	BS EN/EN61000-4-8, Level 1, 1 A/m.
External capacitor for immunity	An external input-filter capacitor is required to meet BS EN/EN61000-4-4 and BS EN/EN61000-4-5. The catalog recommends 220 µF / 100 V.
Catalog markings	EAC, CE and UKCA are shown in the catalog.
MTBF	300,000 hours minimum, MIL-HDBK-217F at 25°C.
Manufacturer warranty reference	The manufacturer catalog states a 3-year warranty.
Specification conditions	Unless otherwise stated, parameters are specified at 48 V DC nominal input, rated load, 25°C and 70% RH.

Equipment integration

EMC system verification	This converter is a component power supply. Reconfirm EMC in the finished equipment with the converter installed and connected to its load; application, wiring and assembly affect the result.
EMI test guidance	The linked guidance describes representative tests on a metal plate with twisted output wires laid flat within the plate area. Select a test arrangement that represents the intended application.
