MEAN WELL SMU01-N series: DC-DC unregulated converter - SMU01N-12N

Description

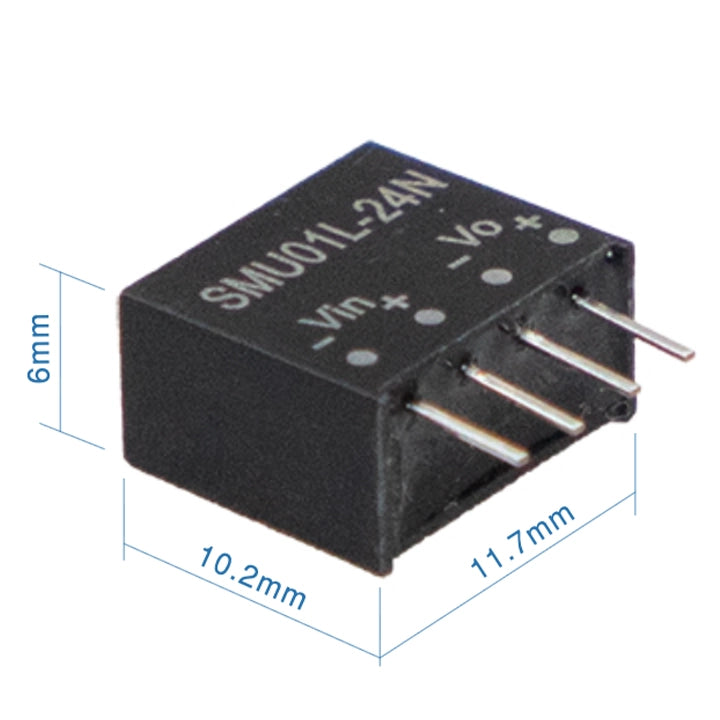

New series Rated power: 1W Input voltage (range):24V(21.6~26.4V) Input current no-load: 5mA, full load: 49mA Output voltage: 12V Output current: 84mA Efficiency (TYP.):85% Capacitive load (maximum):220μF Size (mm):11.7X6X10.2

Click to download Airtac product catalog

Product Features

1. Industrial standard SIP-4 package, ± 10% input range, operating temperature range -40 ℃ ~ +105 ℃.

2. Comply with BS EN/EN55032 radiation level B, no additional components required, low no-load input current, and efficiency as high as 88%.

3. Protection: short circuit (continuous),1500VDC input/output isolation, 3 years warranty.

MEAN WELL SMU01-N series: DC-DC unregulated converter - SMU01N-12N

Product form

New series Rated power: 1W Input voltage (range):24V(21.6~26.4V) Input current no-load: 5mA, full load: 49mA Output voltage: 12V Output current:... Read more

$9.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    New series Rated power: 1W Input voltage (range):24V(21.6~26.4V) Input current no-load: 5mA, full load: 49mA Output voltage: 12V Output current: 84mA Efficiency (TYP.):85% Capacitive load (maximum):220μF Size (mm):11.7X6X10.2

    Click to download Airtac product catalog

    Product Features

    1. Industrial standard SIP-4 package, ± 10% input range, operating temperature range -40 ℃ ~ +105 ℃.

    2. Comply with BS EN/EN55032 radiation level B, no additional components required, low no-load input current, and efficiency as high as 88%.

    3. Protection: short circuit (continuous),1500VDC input/output isolation, 3 years warranty.
