MEAN WELL SMU02-N series: DC-DC unregulated converter - SMU02N-09N

Description

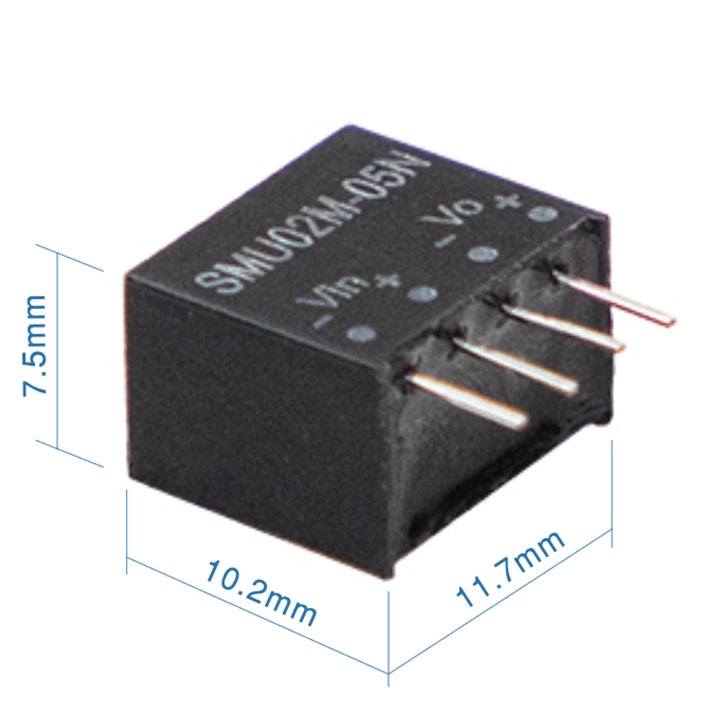

New series Rated power: 2W Input voltage (range):24V(21.6~26.4V) Input current no-load: 6mA, full load: 96mA Output voltage: 9V Output current: 222mA Efficiency (TYP.):87% Capacitive load (maximum):220μF Size (mm):11.7X7.5X10.2

Click to download Airtac product catalog

Product Features

1. Industrial standard SIP-4 package, ± 10% input range, operating temperature range -40 ℃ ~ +105 ℃.

2. Comply with BS EN/EN55032 radiation level B, no additional components required, low no-load input current, and efficiency as high as 90%.

3. Protection: short circuit (continuous),1500VDC input/output isolation, 3 years warranty.

MEAN WELL SMU02-N series: DC-DC unregulated converter - SMU02N-09N

Product form

New series Rated power: 2W Input voltage (range):24V(21.6~26.4V) Input current no-load: 6mA, full load: 96mA Output voltage: 9V Output current:... Read more

$9.43 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    New series Rated power: 2W Input voltage (range):24V(21.6~26.4V) Input current no-load: 6mA, full load: 96mA Output voltage: 9V Output current: 222mA Efficiency (TYP.):87% Capacitive load (maximum):220μF Size (mm):11.7X7.5X10.2

    Click to download Airtac product catalog

    Product Features

    1. Industrial standard SIP-4 package, ± 10% input range, operating temperature range -40 ℃ ~ +105 ℃.

    2. Comply with BS EN/EN55032 radiation level B, no additional components required, low no-load input current, and efficiency as high as 90%.

    3. Protection: short circuit (continuous),1500VDC input/output isolation, 3 years warranty.
