MEAN WELL SPAN02 series: Regulated SIP DC/DC converter - SPAN02A-03

Description

SPAN02A-03 — Regulated SIP DC/DC converter

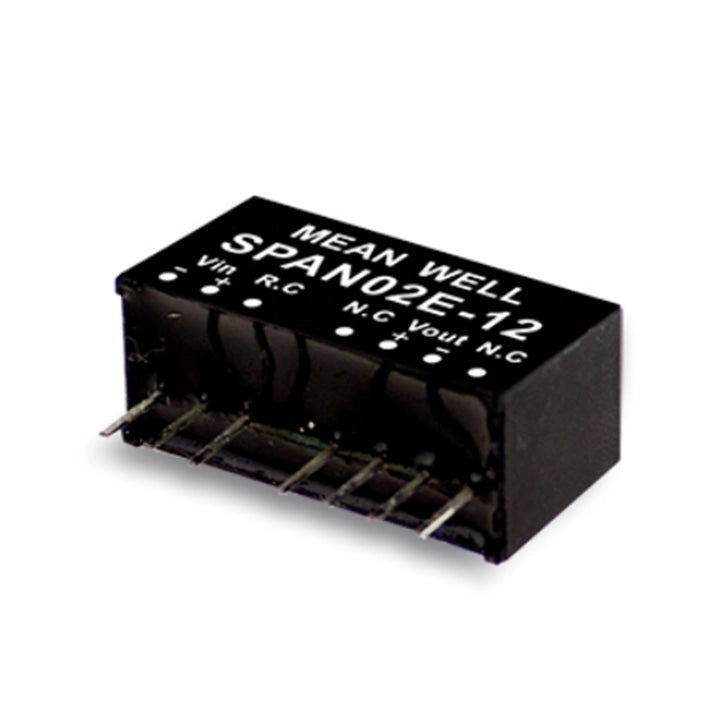

The MEAN WELL SPAN02A-03 is an isolated, regulated single-output SIP8 DC/DC converter in the 2 W SPAN02/DPAN02 family. It accepts 9–18 V DC (12 V nominal) and provides 3.3 V DC, with 0–500 mA. The 3.3 V version is limited to 1.65 W by its 500 mA output-current rating. Remote ON/OFF control is provided; observe the pin-specific control and thermal limits.

Download MEAN WELL SPAN02 Datasheet (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

SPAN02 electrical, environmental, mechanical and packing specifications: PDF pages 3–7.

Electrical specifications

Model and output configuration SPAN02A-03; isolated, regulated single-output converter with industry-standard SIP8 pinout.
Output voltage 3.3 V DC.
Output current range 0–500 mA. No minimum load is required.
Output power and current limit This is a 2 W series. The selected 3.3 V output is limited to 500 mA, corresponding to 1.65 W calculated from voltage × current, before thermal derating.
Nominal input and operating range 12 V DC nominal; 9–18 V DC operating range, 2:1 range family.
Input current 30 mA at no load; 181 mA at full load under the general measurement conditions.
Typical efficiency 76% at nominal input and rated load under the general measurement conditions.
Series efficiency capability The SPAN02/DPAN02 family offers efficiency up to 85% across its models; use the selected model’s typical value above.
Maximum capacitive load 500 µF.
Input surge limit 25 V DC for 100 ms maximum.
Input filter and recommended fuse Internal input capacitor; a 500 mA slow-blow input fuse is recommended.
Internal power dissipation 500 mW.
Output voltage accuracy ±1.5%.
Ripple and noise 75 mVp-p. Measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Line regulation ±0.5%, measured from low line to high line at rated load.
Load regulation ±0.5%, measured from 10% to 100% rated load.
Typical switching frequency 100 kHz.
General measurement conditions Unless otherwise specified: nominal 12 V input, rated load, 25°C and 70% RH ambient.

Protection, control and thermal operation

Short-circuit protection Continuous short-circuit protection with automatic recovery.
Overload protection Automatic recovery after the fault is removed.
Under-voltage lockout Start-up voltage: 7.3 V DC; shutdown voltage: 5.8 V DC.
Remote control R.C. is referenced to −Vin. Power ON: R.C. below 0.8 V DC or open circuit. Power OFF: the specified R.C. control range is above 4 V through 15 V DC.
Operating and case temperature −40 to +90°C ambient, subject to derating; case temperature +100°C maximum.
Cooling and load derating Free-air natural convection. The curve shows 100% load from −40 to +85°C and 60% at +90°C. Do not extend the specified operating range beyond +90°C.
Working humidity 20–90% RH, non-condensing.
Storage conditions −55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient 0.03%/°C over 0 to +85°C.
Soldering conditions At 1.5 mm from the case: 1–3 seconds at 260°C maximum.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.

Isolation, EMC and reliability

Applicable safety approvals EAC TP TC 020/2011 approved.
Isolation withstand voltage Input to output: 1.5 kV DC.
Isolation resistance Input to output: 100 MΩ at 500 V DC, 25°C and 70% RH.
Typical isolation capacitance 10 pF.
EMC emission BS EN/EN 55032 (CISPR 32): radiated Class A without additional components. The conducted-emission entry is N/A.
ESD immunity BS EN/EN 61000-4-2, Level 2: ±8 kV air and ±4 kV contact.
Radiated RF immunity BS EN/EN 61000-4-3, Level 2: 3 V/m.
EFT and surge immunity BS EN/EN 61000-4-4: Level 1, 0.5 kV; BS EN/EN 61000-4-5: Level 1, 0.5 kV line to line.
Conducted RF and magnetic-field immunity BS EN/EN 61000-4-6: Level 2, 3 V e.m.f.; BS EN/EN 61000-4-8: Level 2, 3 A/m.
MTBF 2,500 Khrs, MIL-HDBK-217F at 25°C.
Manufacturer warranty 3 years.

Mechanical details, installation and packing

Dimensions and material 21.8 × 9.2 × 11.1 mm (L × W × H); catalog reference 0.86 × 0.36 × 0.44 inch. Non-conductive black plastic case, UL 94 V-0 rated.
Pin assignment Pin 1: −Vin; pin 2: +Vin; pin 3: R.C.; pin 5: N.C.; pin 6: +Vout; pin 7: −Vout; pin 8: N.C. The bottom-view drawing identifies the pin numbers; pin position 4 is absent.
Lead and mounting geometry Body stand-off: 0.5 mm. Lead extension: 4.1 mm; lead cross-section references: 0.5 × 0.3 mm. Pin pitch: 2.54 mm; total pin span: 17.8 mm. Bottom-view position references are 2 mm and 3.5 mm.
Mechanical tolerances General dimensions x.x: ±0.5 mm; pin pitch: ±0.05 mm.
Typical applications Telecom and datacom systems, wireless networks, industrial control, instruments, analyzers, detectors, data switches and distributed power architectures.
Per-unit mass 2.7 g as the catalog packing reference per unit, not a measured net or shipping weight.
Packing quantities and gross masses 14 pieces per tube; tube gross weight 56.3 g. A carton contains 147 tubes / 2,058 pieces and has a gross weight of 10.267 kg.
Packaging dimensions Tube length: 330 mm; the tube-profile drawing marks 11.6, 10.4, 12.8 and 21 mm. Carton: 390.9 × 284.8 × 175.7 mm (L × W × H). These are packaging dimensions.

Installation and system verification

Complete-system EMC verification Verify EMC with the converter installed in the final equipment and connected to a representative load. Wiring, assembly and the application affect the result. Follow the model's specified EMC conditions and any required external components; the linked EMI testing guidance does not certify the finished equipment.

MEAN WELL SPAN02 series: Regulated SIP DC/DC converter - SPAN02A-03

Product form

SPAN02A-03 — Regulated SIP DC/DC converter The MEAN WELL SPAN02A-03 is an isolated, regulated single-output SIP8 DC/DC converter in the... Read more

$23.02 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    SPAN02A-03 — Regulated SIP DC/DC converter

    The MEAN WELL SPAN02A-03 is an isolated, regulated single-output SIP8 DC/DC converter in the 2 W SPAN02/DPAN02 family. It accepts 9–18 V DC (12 V nominal) and provides 3.3 V DC, with 0–500 mA. The 3.3 V version is limited to 1.65 W by its 500 mA output-current rating. Remote ON/OFF control is provided; observe the pin-specific control and thermal limits.

    Download MEAN WELL SPAN02 Datasheet (PDF)
    Download MEAN WELL EMI Testing Guidance (PDF)

    SPAN02 electrical, environmental, mechanical and packing specifications: PDF pages 3–7.

    Electrical specifications

    Model and output configuration SPAN02A-03; isolated, regulated single-output converter with industry-standard SIP8 pinout.
    Output voltage 3.3 V DC.
    Output current range 0–500 mA. No minimum load is required.
    Output power and current limit This is a 2 W series. The selected 3.3 V output is limited to 500 mA, corresponding to 1.65 W calculated from voltage × current, before thermal derating.
    Nominal input and operating range 12 V DC nominal; 9–18 V DC operating range, 2:1 range family.
    Input current 30 mA at no load; 181 mA at full load under the general measurement conditions.
    Typical efficiency 76% at nominal input and rated load under the general measurement conditions.
    Series efficiency capability The SPAN02/DPAN02 family offers efficiency up to 85% across its models; use the selected model’s typical value above.
    Maximum capacitive load 500 µF.
    Input surge limit 25 V DC for 100 ms maximum.
    Input filter and recommended fuse Internal input capacitor; a 500 mA slow-blow input fuse is recommended.
    Internal power dissipation 500 mW.
    Output voltage accuracy ±1.5%.
    Ripple and noise 75 mVp-p. Measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
    Line regulation ±0.5%, measured from low line to high line at rated load.
    Load regulation ±0.5%, measured from 10% to 100% rated load.
    Typical switching frequency 100 kHz.
    General measurement conditions Unless otherwise specified: nominal 12 V input, rated load, 25°C and 70% RH ambient.

    Protection, control and thermal operation

    Short-circuit protection Continuous short-circuit protection with automatic recovery.
    Overload protection Automatic recovery after the fault is removed.
    Under-voltage lockout Start-up voltage: 7.3 V DC; shutdown voltage: 5.8 V DC.
    Remote control R.C. is referenced to −Vin. Power ON: R.C. below 0.8 V DC or open circuit. Power OFF: the specified R.C. control range is above 4 V through 15 V DC.
    Operating and case temperature −40 to +90°C ambient, subject to derating; case temperature +100°C maximum.
    Cooling and load derating Free-air natural convection. The curve shows 100% load from −40 to +85°C and 60% at +90°C. Do not extend the specified operating range beyond +90°C.
    Working humidity 20–90% RH, non-condensing.
    Storage conditions −55 to +125°C; 10–95% RH, non-condensing.
    Temperature coefficient 0.03%/°C over 0 to +85°C.
    Soldering conditions At 1.5 mm from the case: 1–3 seconds at 260°C maximum.
    Vibration 10–500 Hz, 2 G; 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.

    Isolation, EMC and reliability

    Applicable safety approvals EAC TP TC 020/2011 approved.
    Isolation withstand voltage Input to output: 1.5 kV DC.
    Isolation resistance Input to output: 100 MΩ at 500 V DC, 25°C and 70% RH.
    Typical isolation capacitance 10 pF.
    EMC emission BS EN/EN 55032 (CISPR 32): radiated Class A without additional components. The conducted-emission entry is N/A.
    ESD immunity BS EN/EN 61000-4-2, Level 2: ±8 kV air and ±4 kV contact.
    Radiated RF immunity BS EN/EN 61000-4-3, Level 2: 3 V/m.
    EFT and surge immunity BS EN/EN 61000-4-4: Level 1, 0.5 kV; BS EN/EN 61000-4-5: Level 1, 0.5 kV line to line.
    Conducted RF and magnetic-field immunity BS EN/EN 61000-4-6: Level 2, 3 V e.m.f.; BS EN/EN 61000-4-8: Level 2, 3 A/m.
    MTBF 2,500 Khrs, MIL-HDBK-217F at 25°C.
    Manufacturer warranty 3 years.

    Mechanical details, installation and packing

    Dimensions and material 21.8 × 9.2 × 11.1 mm (L × W × H); catalog reference 0.86 × 0.36 × 0.44 inch. Non-conductive black plastic case, UL 94 V-0 rated.
    Pin assignment Pin 1: −Vin; pin 2: +Vin; pin 3: R.C.; pin 5: N.C.; pin 6: +Vout; pin 7: −Vout; pin 8: N.C. The bottom-view drawing identifies the pin numbers; pin position 4 is absent.
    Lead and mounting geometry Body stand-off: 0.5 mm. Lead extension: 4.1 mm; lead cross-section references: 0.5 × 0.3 mm. Pin pitch: 2.54 mm; total pin span: 17.8 mm. Bottom-view position references are 2 mm and 3.5 mm.
    Mechanical tolerances General dimensions x.x: ±0.5 mm; pin pitch: ±0.05 mm.
    Typical applications Telecom and datacom systems, wireless networks, industrial control, instruments, analyzers, detectors, data switches and distributed power architectures.
    Per-unit mass 2.7 g as the catalog packing reference per unit, not a measured net or shipping weight.
    Packing quantities and gross masses 14 pieces per tube; tube gross weight 56.3 g. A carton contains 147 tubes / 2,058 pieces and has a gross weight of 10.267 kg.
    Packaging dimensions Tube length: 330 mm; the tube-profile drawing marks 11.6, 10.4, 12.8 and 21 mm. Carton: 390.9 × 284.8 × 175.7 mm (L × W × H). These are packaging dimensions.

    Installation and system verification

    Complete-system EMC verification Verify EMC with the converter installed in the final equipment and connected to a representative load. Wiring, assembly and the application affect the result. Follow the model's specified EMC conditions and any required external components; the linked EMI testing guidance does not certify the finished equipment.
