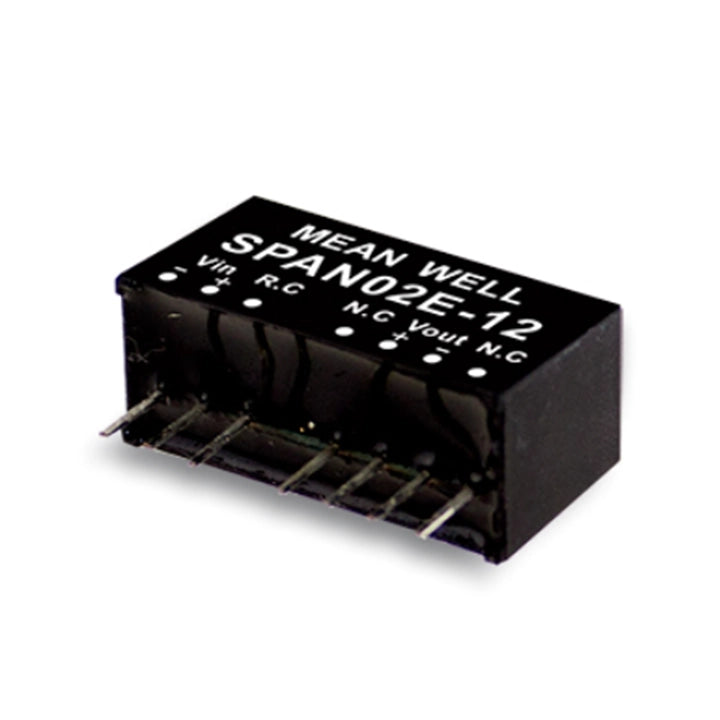

MEAN WELL SPAN02 Series: DC-DC Regulated Converter - SPAN02E-12

Description

Series: Single group output Rated power: 2W Input voltage (range):5V(4.5~9V) Input current no-load: 60mA, full load: 501mA Output voltage: 12V Output current: 0 ~ 167mA Efficiency (TYP.):80% Capacitive load (maximum):167μF Size (mm):21.8X9.2X11.1

Click to download Airtac product catalog

Product Features

1. SIP8 package has industry standard pins, 2:1 wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required.

2. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 85%.

3. Protection: short circuit (continuous)/overload, 1.5KVDC input/output isolation, remote on/off, 3 years warranty.

MEAN WELL SPAN02 Series: DC-DC Regulated Converter - SPAN02E-12

Product form

Series: Single group output Rated power: 2W Input voltage (range):5V(4.5~9V) Input current no-load: 60mA, full load: 501mA Output voltage: 12V... Read more

$20.02 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 2W Input voltage (range):5V(4.5~9V) Input current no-load: 60mA, full load: 501mA Output voltage: 12V Output current: 0 ~ 167mA Efficiency (TYP.):80% Capacitive load (maximum):167μF Size (mm):21.8X9.2X11.1

    Click to download Airtac product catalog

    Product Features

    1. SIP8 package has industry standard pins, 2:1 wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required.

    2. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 85%.

    3. Protection: short circuit (continuous)/overload, 1.5KVDC input/output isolation, remote on/off, 3 years warranty.
