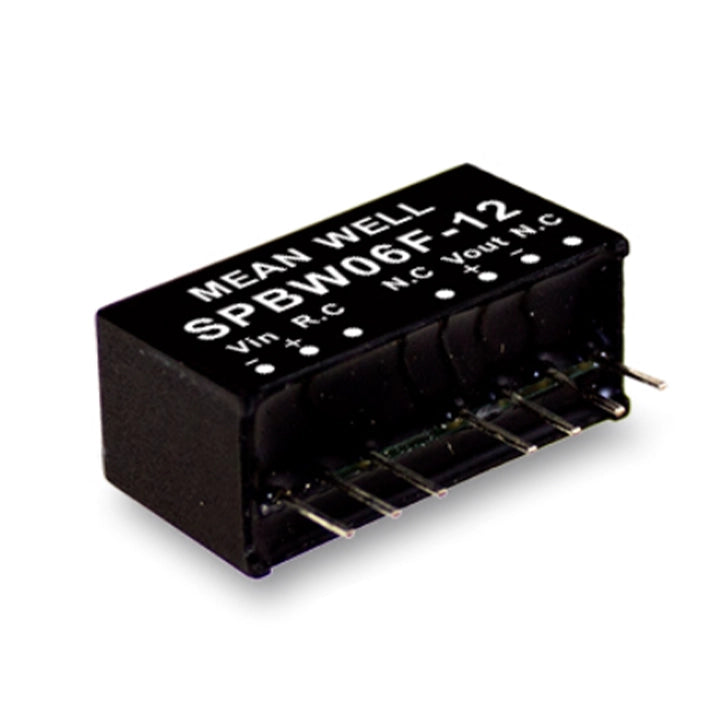

SPBW06F-05 — Regulated SIP DC/DC converter

The MEAN WELL SPBW06F-05 is an isolated, regulated single-output SIP8 DC/DC converter in the 6 W SPBW06/DPBW06 family. It accepts 9–36 V DC (24 V nominal) and provides 5 V DC, with 0–1200 mA. Remote ON/OFF control is provided; observe the specified control method, external EMC components and temperature derating.

Download MEAN WELL SPBW06 Datasheet (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

SPBW06 electrical, environmental, mechanical and packing specifications: PDF pages 13–18.

Electrical specifications

Model and output configuration	SPBW06F-05; isolated, regulated single-output DC/DC converter with industry-standard SIP8 pinout.
Output voltage	5 V DC.
Output current range	0–1200 mA. No minimum load is required.
Output power and current limit	6 W total converter rating, subject to the stated current limits and thermal derating.
Nominal input and operating range	24 V DC nominal; 9–36 V DC operating range, 4:1 range family.
Input current	4 mA at no load; 298 mA at full load under the general measurement conditions.
Typical efficiency	85% at nominal input and rated load under the general measurement conditions.
Series efficiency capability	The SPBW06/DPBW06 family offers efficiency up to 89% across its models; use the selected model’s typical value above.
Maximum capacitive load	2200 µF.
Input surge limit	50 V DC for 100 ms maximum.
Input filter and recommended fuse	Internal input capacitor; a 1.25 A fast-acting input fuse is recommended.
Internal power dissipation	500 mW.
Output voltage accuracy	±1.5%.
Ripple and noise	100 mVp-p. Measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Line regulation	±0.2%, measured from low line to high line at rated load.
Load regulation	±0.5%, measured from 0% to 100% rated load.
Switching frequency	580 kHz typical.
General measurement conditions	Unless otherwise specified: nominal 24 V input, rated load, 25°C and 70% RH ambient.

Protection, control and thermal operation

Short-circuit protection	Continuous short-circuit protection with automatic recovery.
Overload protection	Automatic recovery after the fault is removed.
Remote control	Power ON: leave R.C. open at high impedance. Power OFF: supply 2–4 mA to the R.C. pin, referenced to −Vin. The recommended circuit applies this current through a 1 kΩ series resistor. If remote control is unused, leave R.C. open.
Operating and case temperature	−40 to +85°C ambient, subject to derating; case temperature +100°C maximum.
Cooling and load derating	Free-air natural convection. For this 5 V DC model, the curve shows 100% load from −40 to +61°C and 50% at +85°C. Do not extend the specified operating range beyond +85°C.
Working humidity	20–90% RH, non-condensing.
Storage conditions	−55 to +125°C; 10–95% RH, non-condensing.
Temperature coefficient	0.03%/°C over 0 to +65°C.
Soldering conditions	At 1.5 mm from the case: 1–3 seconds at 260°C maximum.
Vibration	10–500 Hz, 2 G; 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.

Isolation, EMC and reliability

Applicable safety approvals	EAC TP TC 020/2011 approved.
Isolation withstand voltage	Input to output: 1.5 kV DC.
Isolation resistance	Input to output: 100 MΩ at 500 V DC, 25°C and 70% RH.
Typical isolation capacitance	50 pF.
EMC emission	BS EN/EN 55032 (CISPR 32): radiated Class A/B with external components. The conducted-emission entry is N/A.
ESD immunity	BS EN/EN 61000-4-2, Level 2: ±8 kV air and ±4 kV contact.
Radiated RF immunity	BS EN/EN 61000-4-3, Level 2: 3 V/m.
EFT and surge immunity	BS EN/EN 61000-4-4: Level 1, 0.5 kV; BS EN/EN 61000-4-5: Level 1, 0.5 kV line to line.
Conducted RF and magnetic-field immunity	BS EN/EN 61000-4-6: Level 2, 3 V e.m.f.; BS EN/EN 61000-4-8: Level 2, 3 A/m.
MTBF	1,850 Khrs, MIL-HDBK-217F at 25°C.
Manufacturer warranty	3 years.
EMC suggestion circuit	Use the catalog’s BS EN/EN 55032 external-component circuit. L1 is in the positive input lead. C1 is across the input before L1, and C2 is across the module input after L1. C4 links module-side +Vin to +Vout; C3 links −Vin to −Vout. All listed capacitors are ceramic.
Class A external components	C1 = 10 µF / 50 V; C2 = N.C.; C3 = C4 = 150 pF / 2 kV; L1 = 10 µH.
Class B external components	C1 = 10 µF / 50 V; C2 = N.C.; C3 = C4 = 1500 pF / 2 kV; L1 = 10 µH.

Mechanical details, installation and packing

Dimensions and material	21.8 × 9.2 × 11.1 mm (L × W × H); catalog reference 0.86 × 0.36 × 0.44 inch. Non-conductive black plastic case, UL 94 V-0 rated.
Pin assignment	Pin 1: −Vin; pin 2: +Vin; pin 3: R.C.; pin 5: N.C.; pin 6: +Vout; pin 7: −Vout; pin 8: N.C. The bottom-view drawing identifies the pin numbers; pin position 4 is absent.
Lead and mounting geometry	Body stand-off: 0.5 mm. Lead extension: 4.1 mm; lead cross-section references: 0.5 × 0.3 mm. Pin pitch: 2.54 mm; total pin span: 17.8 mm. Bottom-view position references are 2 mm and 3.5 mm.
Mechanical tolerances	General dimensions x.x: ±0.5 mm; pin pitch: ±0.05 mm.
Typical applications	Telecom and datacom systems, wireless networks, industrial control, instruments, analyzers, detectors, data switches and distributed power architectures.
Per-unit mass	4.5 g as the catalog packing reference per unit, not a measured net or shipping weight.
Packing quantities and gross masses	14 pieces per tube; tube gross weight 81.5 g. A carton contains 147 tubes / 2,058 pieces and has a gross weight of 13.98 kg.
Packaging dimensions	Tube length: 330 mm; the tube-profile drawing marks 11.6, 10.4, 12.8 and 21 mm. Carton: 390.9 × 284.8 × 175.7 mm (L × W × H). These are packaging dimensions.

Installation and system verification

Complete-system EMC verification	Verify EMC with the converter installed in the final equipment and connected to a representative load. Wiring, assembly and the application affect the result. Follow the model's specified EMC conditions and any required external components; the linked EMI testing guidance does not certify the finished equipment.
