Name: MEAN WELL SPWM-150 series: DALI-2 PWM output LED driver - SPWM-150-12DA2
Brand: MEAN WELL
SKU: SPWM-150-12DA2
Price: 91.18 USD
Availability: InStock

MEAN WELL SPWM-150 series: DALI-2 PWM output LED driver - SPWM-150-12DA2

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

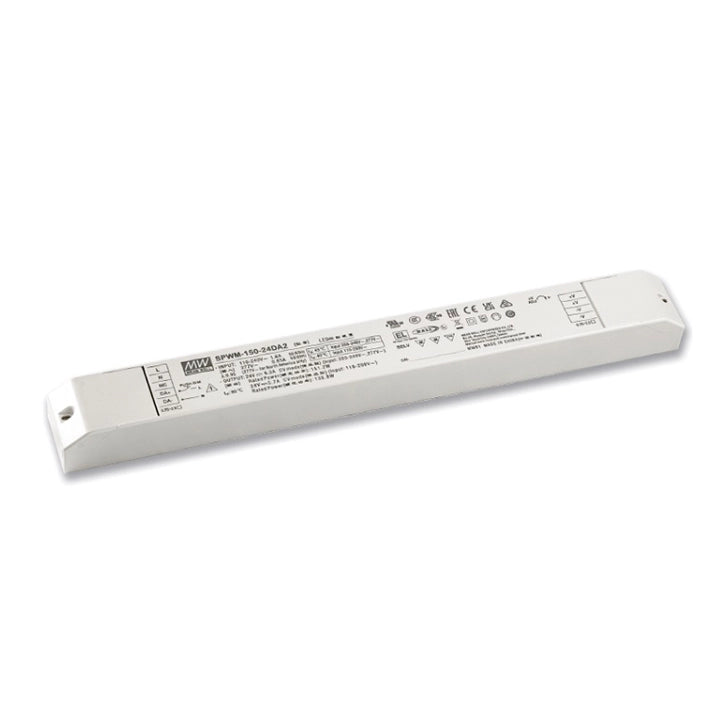

MEAN WELL SPWM-150-12DA2

MEAN WELL SPWM-150-12DA2 is a DALI-2 constant-voltage PWM output LED driver for compatible 12 V LED strips, rated 12.5 A and 150 W. Its slim Class II housing uses terminal-block connections. Select for the exact DA2 control version and apply the input and thermal derating below.

Download MEAN WELL SPWM-150 Datasheet (PDF)Download MEAN WELL SPWM User Manual (PDF)

Datasheet section: PDF pages 10–18; specifications on page 11.

Model, output and control

Parameter	Specification
Model	SPWM-150-12DA2
Series and function code	SPWM-150; DA2: DALI-2 DT6 control
Output mode	Constant voltage with PWM-style output; dimming varies output-current duty cycle. Built-in active power factor correction (PFC).
DC output voltage	12 V
Rated output current	12.5 A maximum
Rated output power	150 W maximum
Voltage adjustment range	11–14 V via +V ADJ; keep the load within rated current and power.
Output PWM frequency	3.2 kHz, fixed typical output waveform frequency.
Dimming interface	DALI-2 DT6 brightness control and primary-side PUSH
Dimming range	Minimum dimming level 0.1% for this DALI-2 version.

Input and performance

Parameter	Specification
Input voltage	100–305 VAC or 156–410 VDC; apply input-voltage and thermal derating. Before DC wiring, verify the manufacturer’s polarity requirements for this model.
Input frequency	47–63 Hz
Typical efficiency	92% at the catalog test conditions
Typical power factor	>0.97 / 115 VAC; >0.95 / 230 VAC; >0.92 / 277 VAC at full load; PF changes with load.
THD	<10% at ≥50% load / 115 or 230 VAC, or ≥75% / 277 VAC; consult the model-specific load curves.
Typical AC input current	1.5 A / 115 VAC; 1 A / 230 VAC; 0.8 A / 277 VAC
Inrush current	Cold start: 55 A typical at 230 VAC; 500 μs pulse width measured at 50% peak, per NEMA 410.
Circuit-breaker reference	5 / 8 units for type B / type C 16 A breakers at 230 VAC, respectively. Catalog reference only; verify the actual breaker and system conditions.
Leakage current	<0.25 mA at 277 VAC
No-load or standby power	<0.5 W with dimming off.
Setup and rise time	500 ms setup, 80 ms rise / 230 VAC; 1200 ms setup, 80 ms rise / 115 VAC. Cold-start measurement; rapid switching may increase setup time. DALI power-on timing requires a compatible controller; otherwise setup can exceed 0.5 s.
Hold-up time	10 ms / 230 VAC or 115 VAC typical

Protection and operating conditions

Parameter	Specification
Overload protection	105–150% of rated output; Hiccup mode; automatic recovery after the fault is removed.
Short-circuit protection	Hiccup mode; automatic recovery after the fault is removed.
Overvoltage protection	15–20 V; Output shuts down; remove the fault, then re-power to recover.
Overtemperature protection	Output shuts down; remove the fault, then re-power to recover.
Working case temperature	−20 to +80°C; maximum case temperature +80°C, subject to derating.
Cooling and load derating	Free-air convection, vertical mounting, as specified by the catalog curves. At 110 VAC: 90% load through +40°C, falling to 60% at +50°C. At 230 VAC: 100% through +45°C, falling to 60% at +50°C. Keep measured Tc at or below +80°C; the case-temperature limit does not replace the ambient curve.
Input/load derating	At 60 Hz, vertical mounting: 80% at 100 VAC, rising to 90% at 110 VAC; the 90% plateau continues below 200 VAC, with a step to 100% at 200 VAC through 305 VAC. Below 110 VAC at −20°C, a restart may occur within 5 seconds after power-on.
Humidity and storage	Working: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient	±0.03%/°C over 0–50°C
Altitude derating	Above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m for this fanless design.
Vibration	5–100 Hz, 2 G, 12 minutes per cycle, 72 minutes along each X/Y/Z axis.

Control wiring and operation

Parameter	Specification
DALI/PUSH connection	Use the DALI pair for DALI control. For primary-side PUSH, follow the dedicated wiring diagram: connect TB1 pin 5 (DA−/N) to neutral and a push button between line and pin 4 (DA+/PUSH); pin 3 is NC.
PUSH timing and limits	Factory brightness 100%. Short press: 0.1–1 second; long press: >1 second. One common push button supports up to 10 drivers; maximum cable length to the last driver is 20 m.
PUSH brightness	Short press switches on/off. Long press dims up/down and stops at maximum or minimum dim (not dim-off); each next push reverses direction. Brightening from off is possible. This DA2 version has no PUSH2 colour button.

Safety, insulation and compliance

Parameter	Specification
Safety and design standards	UL8750 Class P; CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13; Class II plastic housing without FG and SELV output. BS EN/EN62384, GB/T19510.1, GB/T19510.213 and EAC TP TC 004; AS/NZS61347-1/-2-13 are design references. RCM is voluntary; the catalog identifies Non-IC independent LED control gear as unsuitable for residential installations under that classification.
EMC	Emission: BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 / GB17625.1 Class C at ≥50% load; BS EN/EN61000-3-3. Immunity: BS EN/EN61547; BS EN/EN61000-4-2 ESD 8 kV air / 4 kV contact; -4-3/-4-4/-4-6/-4-8 level 2; -4-5 line-to-line 2 kV (level 4); -4-11:2020 30% dip for 10 periods and 100% interruption for 0.5 periods. Final equipment requires EMC requalification.
Insulation	Input/output withstand: 3.75 kVAC. Insulation resistance input/output: 100 MΩ at 500 VDC, 25°C / 70% RH.
MTBF	1926.4 / 158.1 thousand hours minimum, Telcordia SR-332 / MIL-HDBK-217F (25°C), respectively; statistical estimates, not guaranteed service life.
Flicker measurement	PstLM ≤1 and SVM ≤0.4, measured at full load with the light source provided by MEAN WELL.
DALI standards	IEC62386-101, -102, -207 (DT6) and Part 251; apply only the selected mode and the supplied DA2 version.
Emergency-lighting scope	DA2/DA2Q emergency operation is listed to BS EN/EN61347-2-13 Appendix J (EL), DC input 176–280 V. This is the emergency condition; the normal input specification remains as listed above.

Dimensions and installation

Parameter	Specification
Dimensions	340 × 38 × 28.5 mm (L × W × H); slim plastic terminal-block housing.
Terminal connections	TB1: 1 AC/L, 2 AC/N, 3 NC, 4 DA+/PUSH, 5 DA−/N. TB2: 1 +V, 2 +V, 3 −V, 4 −V.
Terminal wire preparation	TB1/TB2: 0.75–2.50 mm² (18–14 AWG), 6–7 mm stripping length, M2.5 terminal screws; suggested tightening torque 0.4 N·m (3.5 lb·in).
Mounting	Use the model-specific drawing and 4.2 mm mounting features. Provide ≥15 cm spacing between drivers and do not stack them. The SPWM manual requires a ≥7 mm shim below the fixing screws to leave a heat-dissipation gap.
Installation	Qualified personnel only. Disconnect power before wiring or maintenance; verify secure, correct wiring before energizing. Do not open the case. Do not install in damp locations, excessive heat, direct sunlight or near fire. Close and secure the protective terminal covers. Capacitive loads are not recommended.
Weight	400 g; catalog packing reference per unit (0.40 kg × 1000), not a measured net or shipping parcel weight.
Service-life reference	Typical lifetime >50,000 hours when the marked Tc/TMP point is about +75°C or below. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement; not an additional store promise.

Unless stated otherwise, catalog parameters are measured at 230 VAC input, rated current and +25°C ambient. Typical figures and load curves apply only to their stated conditions. Read the linked drawings and installation instructions before system design.
