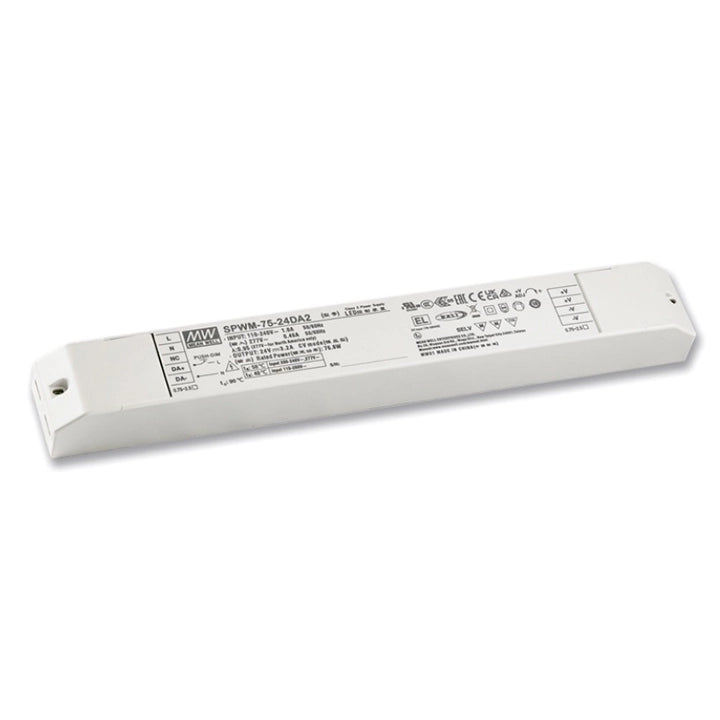

Description
Output voltage: 24V Output Rated Current (Max.):3.2A Output power rating (Max.):76.8W Output voltage adjustment range: 23~26V Input voltage: 100 ~ 305VAC,156 ~ 410VDC Function: Support DALI-2 DT8 control mode (4 channel output), standard product Size (mm):290X38X28.5
Product Features
1. Suitable for DALI-2 DT6 (dimming) and DT8 (adjustable color temperature/color).
2, 1 or 4 channel constant voltage PWM form output; Standby power consumption <0.5W.
3. Optional function: three-in-one dimming/DALI-2 + pressing control.
4. Long thin shell design, terminal desktop wiring.
5. Built-in active PFC function, Class II design, no FG.
6. Protection type: short circuit/overload/overvoltage/overtemperature.
7. The minimum dimming level is 0.1%.
8, natural air cooling, 5 years warranty.
