SUS01M-12 — Isolated unregulated single-output DC-DC converter

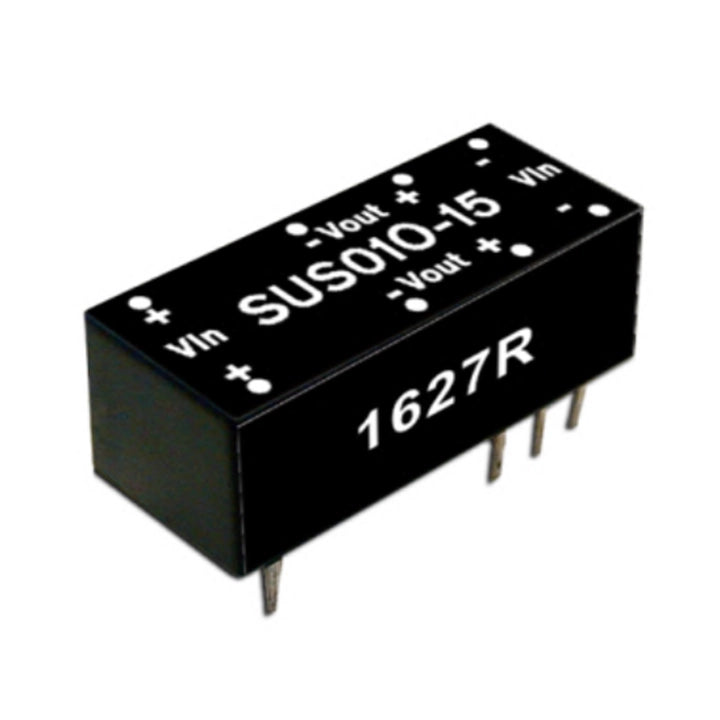

MEAN WELL SUS01M-12 is an isolated, unregulated single-output DC-DC converter in a dual-in-line plastic package. It accepts 10.8–13.2 V DC (12 V DC nominal) and provides 12 V DC, with a 0–84 mA output-current range and a 1 W rated-power limit. Its output varies with input and load as specified by the regulation figures. Internal SMD construction, a built-in EMI filter and free-air convection cooling support compact board-level power conversion.

Download MEAN WELL SUS01 Datasheet (PDF)

Series section: PDF pages 8–9.

Output and input specifications

Model SUS01M-12
Output type Isolated, unregulated single output.
Output voltage 12 V DC.
Output current range 0–84 mA.
Rated output power 1 W; observe both the output-current range and rated-power limit.
Efficiency 82% at nominal input and rated load, 25°C and 70% RH.
Ripple and noise 100 mVp-p maximum. Measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Line regulation ±1.2% for a 1% input variation; measured from low input to high input at rated load.
Load regulation ±8.0%, measured from 20% to 100% rated load.
Voltage accuracy ±2.0%.
Switching frequency 50 kHz minimum.
Input voltage 10.8–13.2 V DC; 12 V DC nominal.
Input current 112 mA at full load; 11 mA at no load.
Input filter and fuse Built-in EMI filter, capacitor type. An external fuse is recommended.

Protection and operating conditions

Overload and short-circuit limitation Momentary only; the catalog identifies the protection type as “Broken”. Automatic recovery is not specified. Avoid sustained overload or short-circuit operation.
Operating temperature and cooling −25°C to +71°C, with free-air convection and load derating.
Load derating The natural-convection curve permits 100% load through +60°C; reduce load above +60°C within the specified +71°C operating limit. The plotted tail to +100°C does not extend that operating limit.
Working humidity 20–90% RH, non-condensing.
Storage temperature and humidity −25°C to +105°C; 10–95% RH.
Temperature coefficient ±0.03%/°C from 0°C to +50°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.

Isolation and compliance

Input-to-output withstand voltage 1.5 kV DC.
Isolation resistance 100 MΩ between input and output, tested at 500 V DC, 25°C and 70% RH.
Isolation capacitance 80 pF maximum.
Safety standard EAC TP TC 020/2011 approved.
EMC emissions Compliance with BS EN/EN55032 Class B, FCC Part 15 Class B and EAC TP TC 020.
EMC immunity Compliance with BS EN/EN61000-4-2, -3, -4, -5, -6 and -8; light-industry level, criteria A; EAC TP TC 020.
Catalog markings FCC, EAC, CE and UKCA are listed in the manufacturer catalog.

Mechanical and manufacturer references

Dimensions 22.6 × 9.9 × 8.9 mm (L × W × H).
Construction Internal SMD technology, non-conductive plastic case and dual-in-line package.
Pin assignment Bottom view: pins 1 and 16 = +Vin; pins 6 and 11 = −Vout; pins 7 and 10 = +Vout; pins 8 and 9 = −Vin.
Mechanical drawing details Pin-row spacing: 7.62 mm. Lengthwise pin dimensions: 12.7 mm and 2.54 mm. Exposed pin length: 3.81 mm; the drawing also labels a 0.5 mm pin dimension.
Unit weight reference 3.1 g, catalog packing reference per unit; not a measured net shipping weight.
Standard tube packing 22 pieces per tube; one tube gross weight 110 g. Maximum 3080 pieces per carton, one carton gross weight 16.2 kg; carton 620 × 230 × 230 mm. Packaging gross weights are not individual product weights.
Manufacturing test 100% burn-in test.
MTBF 700,000 hours minimum, MIL-HDBK-217F at 25°C.
Manufacturer warranty reference The manufacturer catalog states a 2-year warranty.
Specification conditions Unless otherwise stated, parameters are specified at 12 V DC nominal input, rated load, 25°C and 70% RH.
