MEAN WELL TKA30 series: Isolated triple-output DC-DC converter - TKA30B-C

Description

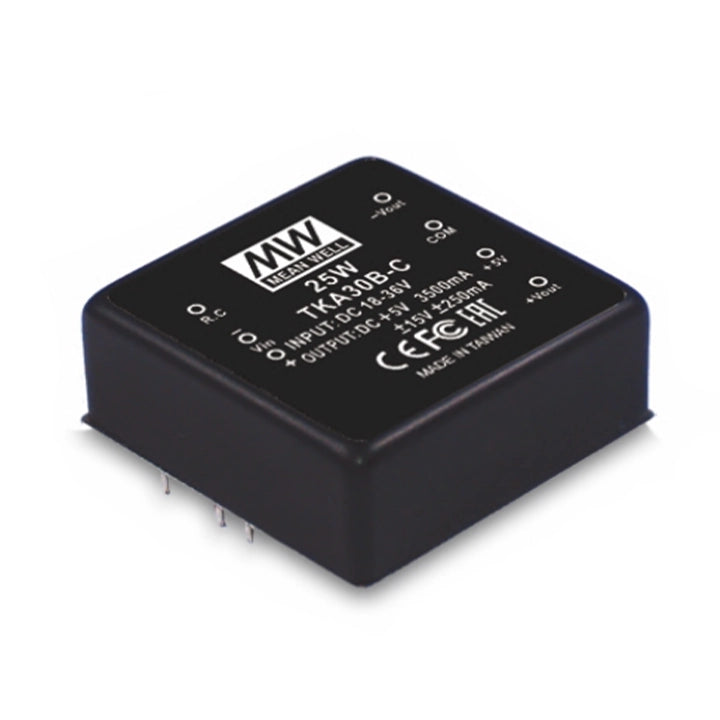

TKA30B-C — Isolated triple-output DC-DC converter

MEAN WELL TKA30B-C is an isolated triple-output DC-DC converter accepting 18–36 V DC. It provides +5 V and ±15 V DC relative to the Common return, with 25 W total rated output power. The specified current range is 700–3500 mA on +5 V; 50–250 mA on each auxiliary rail; maintain the minimum loads and the combined power limit. Its 2 × 2 inch metal package provides 1.5 kV DC input-to-output isolation. Remote ON/OFF control is provided.

Download MEAN WELL TKA30 Datasheet (PDF)

Series section: PDF pages 14–15.

Model and output specifications

Complete model TKA30B-C
Model selection TKA30 identifies the triple-output series. Input code B selects 18–36 V DC. Output code C selects +5 V and ±15 V DC.
Output voltage +5 V and ±15 V DC relative to Common. The +5 V main output and positive and negative auxiliary outputs are all present on this model.
Output current range 700–3500 mA on +5 V; 50–250 mA on each auxiliary rail. Maintain the stated minimum current on each output.
Rated power and load limit 25 W total across all three output rails. Observe every rail current limit and the combined output-power limit together.
Voltage accuracy ±2.0% on +5 V; ±5.0% on the auxiliary outputs.
Line regulation The datasheet lists ±0.5% and ±1.0% line-regulation values, measured from low to high input at rated load. Confirm the applicable value for this model and output rail with MEAN WELL before using it as a design limit.
Load regulation ±2.0% on +5 V and ±5.0% on the auxiliary outputs, measured over 20–100% of rated load.
Ripple and noise 100 mVp-p maximum, measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors.
Switching frequency 100 kHz minimum.

Input and protection

Input voltage 18–36 V DC; 2:1 input range.
Input current 1.27 A at full load; 18 mA at no load, at the reference test conditions.
Typical efficiency 82% at the reference test conditions.
Input filter and protection Built-in EMI filter with a Pi network. An external input fuse is recommended.
Overload protection 110–250% of rated output power; hiccup mode with automatic recovery after the fault is removed.
Short-circuit protection All outputs are protected; hiccup mode with automatic recovery after the fault is removed.
Fault-duration limit Do not allow operation in overload or short circuit for more than 30 seconds.
Optional configurations The catalog lists a 4:1 input-range option. The stated specifications for this model are 2:1 and 1.5 kV DC; confirm the optional configuration with the manufacturer before selection.

Control and adjustment

Remote ON/OFF control R.C. is referenced to −Vin. The stated power-ON condition is >4.5–5.5 V DC or open circuit; power OFF is below 0.8 V DC or short circuit to −Vin. Follow the specified control conditions.

Operating conditions and isolation

Operating temperature and cooling −40 to +85°C, with free-air convection and the specified load derating.
Load derating Full load through 71°C; reduce to 80% load at 85°C. Apply the curve only within the specified operating range.
Working humidity 20–90% RH, non-condensing.
Storage conditions −40 to +105°C; 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle for 60 minutes along each of the X, Y and Z axes.
Reference test conditions Normal input, rated load, 25°C ambient and 70% RH, unless otherwise stated.
Input-to-output withstand voltage 1.5 kV DC.
Isolation resistance 100 MΩ at 500 V DC, 25°C and 70% RH.

Mechanical design and installation

Dimensions 50.8 × 50.8 × 21 mm (L × W × H).
Case and production testing Metal case with shielding on all six sides and epoxy encapsulation; 100% burn-in test.
Pin assignment 1 R.C.; 2 No Pin; 3 −Vin; 4 +Vin; 5 +15 V auxiliary output; 6 +5 V main output; 7 COM; 8 −15 V auxiliary output. Check the bottom-view orientation before PCB assembly.
Mechanical drawing details Pin diameter: 1.0 mm (+0.2/−0.1 mm); lead length: 5.8 mm. Bottom-view drawing: pin-row separation is 45.72 mm; the four output-side pins span 30.48 mm. Follow the complete drawing for the asymmetric input-side positions.
Unit weight reference 110 g, explicitly stated as a catalog packing reference per unit. Tube and carton gross weights are separate packaging data.

EMC and manufacturer references

Safety standards EAC TP TC 020/2011 approved.
Catalog approvals FCC, EAC, CE and UKCA are listed in the manufacturer’s features.
EMC emission BS EN/EN 55032 Class B; FCC Part 15 Class B; EAC TP TC 020.
EMC immunity BS EN/EN 61000-4-2, -4-3, -4-4, -4-5, -4-6 and -4-8; light-industrial level, criterion A; EAC TP TC 020.
MTBF reference 100 khrs minimum to MIL-HDBK-217F at 25°C; a reliability reference, not a service-life guarantee.
Manufacturer warranty reference The catalog states a 2-year manufacturer warranty.
