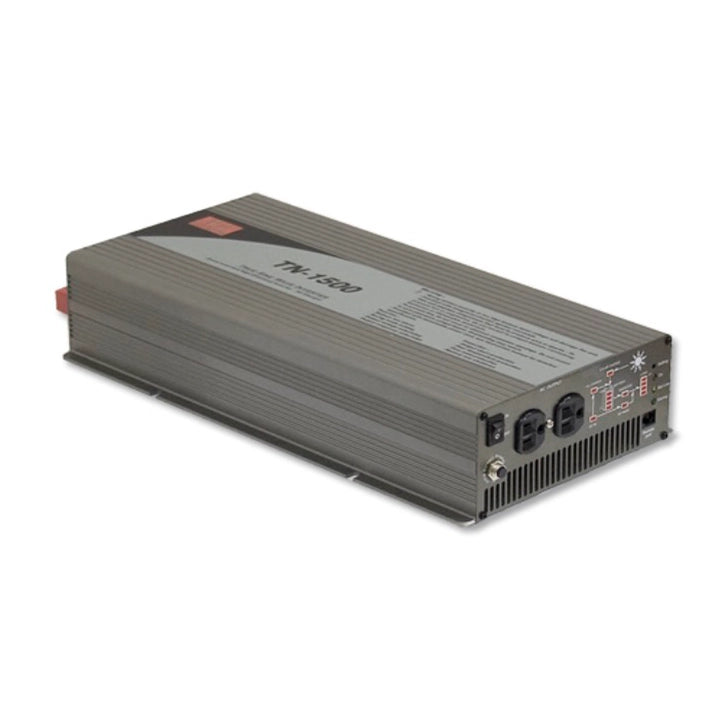

Description
Output power rating (Typ.):1500W Maximum output power (Typ.):180 seconds 1725W/10 seconds 1875W/3000W instantaneous power can be impacted 30 times Output AC voltage: factory set value 230VAC,200/220/230/240VAC selected by setting button switch Output frequency: 50±0.1Hz,50/60Hz selected by setting button switch Input battery voltage: 48V Input voltage range (Typ.):42 ~ 60VDC Input DC Current (Typ.):37.5A Size (mm):420X220X88 AC output socket: Europe
Product Features
1. Built-in AC power grid and solar dual-source charging function.
2. Pure sine wave output (THD<3%), instantaneous output power up to 200%.
3. Digital control by microprocessor, output voltage and frequency can be adjusted.
4, the highest efficiency can reach 91%.
5. Front panel indicator shows load/battery/operating status.
6. High frequency design.
7. Protection function: DC input: reverse polarity/battery low voltage alarm/battery low voltage shutdown, AC output: short circuit/overload/over temperature/circuit breaker trip protection.
8, 3 years warranty.
