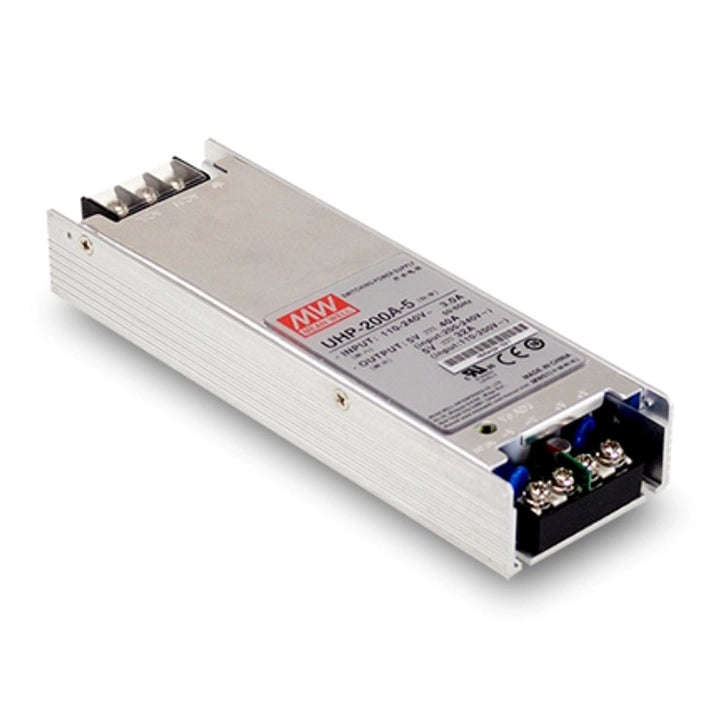

The MEAN WELL UHP-200A-5 is a 5 V, 40 A enclosed power supply for LED displays, rated at 200 W. Its 26 mm profile, active PFC and DC OK signal suit compact sign cabinets. Full performance requires the specified mounting plate, clearances and input/temperature derating.
Product Datasheet
Download MEAN WELL UHP-200A Datasheet (PDF)
The UHP-200A section is on PDF pages 8, 9, 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation.
Model and Output Ratings
| Full model |
UHP-200A-5 |
| Series |
UHP-200A |
| Output voltage code |
5 V version |
| DC output voltage |
5 V |
| Rated output current |
40 A |
| Rated output power |
200 W |
| Output current range |
0-40 A |
| Output voltage adjustment |
4.7-5.3 V |
| Maximum ripple and noise |
200 mVp-p |
| Voltage tolerance |
±4.0% |
| Line regulation |
±0.5% |
| Load regulation |
±2.5% |
The series designation identifies the power-supply family; use the rated output power for this voltage version. Apply the output-current, power and derating limits together.
Input and Electrical Performance
| Input voltage |
90-264 VAC; 127-370 VDC |
| Input frequency |
47-63 Hz |
| Temporary surge-input withstand |
300 VAC for 5 seconds |
| Typical efficiency |
88.5% |
| Typical power factor |
≥0.97 at 115 VAC; ≥0.95 at 230 VAC, full load |
| Typical AC input current |
2.4 A at 115 VAC; 1.2 A at 230 VAC |
| Typical cold-start inrush current |
85 A at 230 VAC |
| Leakage current |
<1.0 mA at 240 VAC |
| Set-up / rise time |
2000 / 200 ms at 230 VAC and full load; 3000 / 200 ms at 115 VAC and 80% load |
| Typical hold-up time |
10 ms at 230 VAC; 10 ms at 115 VAC |
Unless otherwise stated, specifications are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.
Set-up time is measured at the first cold start; repeated on/off switching can increase it. Transient-response measurements require at least 10% load. The catalogue tolerance note includes line and load regulation.
Protection and DC OK Signal
| Overload threshold |
110-140% of rated output power |
| Overload and short-circuit recovery |
Hiccup mode; automatic recovery after the fault is removed |
| Overvoltage threshold |
5.6-7.1 V |
| Overvoltage recovery |
Hiccup mode; automatic recovery after the fault is removed |
| Overtemperature protection |
Output shutdown; automatic recovery after the fault condition is removed |
| DC OK state |
Contact closed when the supply turns on; contact open when it turns off |
| DC OK maximum rating |
10 VDC / 1 mA |
| CN1 signal pins |
1: DC OK +V; 2: DC COM |
Wire the DC OK interface according to the optocoupler circuit and polarity shown in the datasheet. It is a low-current status interface, not an additional power output.
Terminals and Matching Connector Parts
| TB1 input pins |
1: AC/L; 2: AC/N; 3: FG / protective earth |
| TB1 terminal reference |
DECA T14-EM11033703; maximum tightening torque 13 kgf·cm |
| TB2 / TB3 output pins |
1-2: -V; 3-4: +V |
| Output terminal reference |
MW TB-HTP-200-40A; maximum tightening torque 8 kgf·cm |
| CN1 board connector |
JST B2B-PH-K-S or equivalent |
| CN1 mating housing |
JST PHR-2 or equivalent |
| CN1 mating crimp terminal |
JST SPH-002T-P0.5S or equivalent |
The JST housing and crimp-terminal codes identify the matching parts for a DC OK lead. Select them when assembling the signal cable; the catalogue does not state that a completed lead or the mating parts are supplied with the power supply. The TB references identify the terminals in the mechanical drawing.
Cooling, Mounting and Derating
| Cooling |
Fanless, free-air convection with the specified mounting plate |
| Working temperature |
-30 to +70°C, subject to derating |
| Thermal curve, horizontal orientation |
100% load through 50°C; reduce linearly to 60% at 70°C |
| Input-voltage load curve, 60 Hz |
60% at 90 VAC; rises to 80% at 110 VAC; 80% below 180 VAC; 100% at 180-264 VAC |
| Required mounting arrangement |
Firmly mount at the centre of a flat, smooth aluminium plate, or a cabinet surface of the same size |
| Suggested heat-dissipation plate |
380 × 380 × 3 mm |
| Drawing mounting screws |
M3 × 4 |
| Minimum surrounding clearance |
5 cm, including the space above the unit |
| Working humidity |
20-95% RH, non-condensing |
| Storage conditions |
-40 to +85°C; 10-95% RH |
| Temperature coefficient |
±0.03%/°C over 0-50°C |
| Vibration |
10-500 Hz, 5 G; 10 minutes/cycle, 60 minutes on each X/Y/Z axis |
The datasheet requires the mounting plate to achieve the published thermal and input-voltage curves. Keep its surface even and smooth, or use thermal grease as described. Apply input-voltage and temperature limits together; the full temperature range is not a full-load rating.
Dimensions, Weight and Reliability
| Catalogue specification dimensions, L × W × H |
167 × 55 × 26 mm |
| Case drawing |
249A; dimensional tolerance ±1 mm |
| Mounting holes |
Four Ø3.3 mm holes; 158.5 mm longitudinal spacing, as shown in the case drawing |
| Mass, catalogue PACKING reference per unit |
420 g |
| Catalogue packing |
0.42 kg; 20 units / 11.4 kg / 0.76 CUFT |
| Minimum MTBF |
1949.0K hours, Telcordia SR-332; 211.7K hours, MIL-HDBK-217F at 25°C |
| Power indication |
LED power-on indicator |
| Manufacturer datasheet warranty reference |
3 years |
The per-unit catalogue packing mass is a reference, not a measured parcel weight. The mechanical drawing labels the width as 56 mm, while the specification table lists 55 mm. Use the complete mechanical drawing to check mounting, clearance and terminal access.
Safety and EMC
| Catalogue-approved safety standards |
UL 62368-1; TUV BS EN / EN 62368-1; GB 4943.1; EAC TP TC 004 |
| Withstand voltage |
Input-output: 3 kVAC; input-FG: 2 kVAC; output-FG: 0.5 kVAC |
| Isolation resistance |
100 MΩ at 500 VDC, 25°C and 70% RH, between input-output, input-FG and output-FG |
| EMC emission |
BS EN / EN 55032 (CISPR 32), Class A; GB 17625.1; GB/T 9254.1; BS EN / EN 61000-3-2 and -3; EAC TP TC 020 |
| EMC immunity |
BS EN / EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN / EN 55035, light-industry level with 4 kV surge; EAC TP TC 020 |
This is a component power supply; verify EMC and safety in the completed equipment. The catalogue EMC test used a 360 × 360 × 1 mm metal plate. That test plate is separate from the 380 × 380 × 3 mm thermal-installation recommendation.
CISPR 32 Class A equipment may cause radio interference in a residential environment.
