XBG-100-AB constant-power LED driver

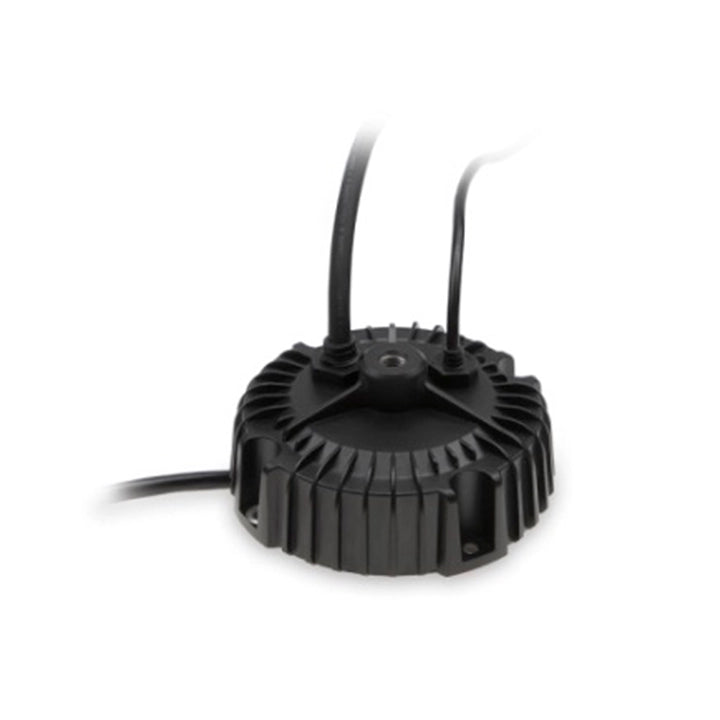

MEAN WELL XBG-100-AB is a 100 W AC/DC constant-power LED driver for bay, stage and spot lighting. Its default output current is 2100 mA, with a 27–56 V constant-current operating region. The metal round housing is IP67-rated and cooled by free-air convection. Select the LED load within the combined voltage, current, power and temperature limits. Built-in potentiometer adjusts the output operating point. AB adds isolated 3-in-1 dimming with dim-to-off: 0–10 VDC, 10 V PWM or resistance.

Download MEAN WELL XBG-100 Datasheet (PDF)

Catalog pages 50–57; series revision 2026-02-09.

Download MEAN WELL LED Installation Manual

Output and model selection

Parameter	Model-specific information
Complete model	XBG-100-AB
Series and option codes	XBG-100; AB function: Built-in potentiometer adjusts the output operating point. AB adds isolated 3-in-1 dimming with dim-to-off: 0–10 VDC, 10 V PWM or resistance. The AC input uses a fixed cable.
Default output current	2100 mA.
Rated output power	100 W; observe voltage, current and power limits simultaneously.
Constant-current region	27–56 V.
Full-power current range	1750–2780 mA. The series headline describes full-power operation across approximately 70–100% of the current setting; use the model-specific I–V envelope to select a valid load.
Output-current adjustment	875–2780 mA via the built-in potentiometer.
Open-circuit voltage	60 V maximum.
Current ripple / tolerance	3.0% maximum ripple at rated current; current tolerance ±5%.
High-performance I–V envelope	The plotted boundary points are: 875 mA / 56 V; 1750 mA / 56 V; 2780 mA / 36 V; 2780 mA / 27 V; 1750 mA / 27 V. These linked operating points define an envelope, not independently combinable maxima.
Setup time	500 ms at 230 VAC; 1200 ms at 115 VAC. Measured at first cold start; repeated switching can increase the setup time.

Input and electrical loading

Parameter	Model-specific information
Input voltage / frequency	90–305 VAC; 127–431 VDC; 47–63 Hz. Apply the input and temperature loading limits.
Active power factor correction	Built-in active PFC. Typical full-load power factor: ≥0.97 at 115 VAC; ≥0.95 at 230 VAC; ≥0.92 at 277 VAC.
Total harmonic distortion	Less than 10% at load ≥50% for 115/230 VAC, and load ≥75% for 277 VAC.
Typical efficiency	92% at the specified catalog test conditions.
Typical AC input current	1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC.
Typical cold-start inrush	50 A at 230 VAC; pulse width 400 µs at 50% Ipeak, per NEMA 410.
16 A circuit breaker loading	At 230 VAC: maximum 8 units on type B or 14 units on type C.
Leakage current	Less than 0.75 mA at 277 VAC.
Input/load characteristic	At 60 Hz, the plotted limit rises from 80% load at 90 VAC to 100% at 100 VAC, then remains at 100% through 305 VAC.
Mains switching	Use behind a mains switch without permanent connection to the mains, as required by the catalog ErP installation note.
Standby consumption	Less than 0.5 W for this AB option.

Protection behavior

Parameter	Model-specific information
Short circuit	Hiccup mode or constant-current limiting; automatically recovers after the fault is removed.
Over-power protection	105–150%; hiccup mode, automatically recovers after the fault is removed.
Overvoltage	61–78 V; shuts down the output. Re-power on after correcting the fault to recover.
Overtemperature	Shuts down the output; re-power on after correcting the overtemperature condition to recover.

Isolated 3-in-1 dimming

Parameter	Model-specific information
Interface	Apply the control signal between DIM+ (purple) and DIM− (pink). Do not connect DIM− to Vo−.
Analog / PWM / resistance	Use 0–10 VDC, or a 10 V PWM signal at 100 Hz–3 kHz, or resistance. Typical dimming source current is 100 µA.
Low-level and off behavior	Minimum dimming level is approximately 8%; output current is undefined between 0% and 8%. About 0 VDC, 0 Ω or a 10 V PWM signal at 0% duty cycle can reduce output to 0%.
Synchronized resistance control	For N synchronized drivers, the curve runs in 10 kΩ/N steps up to 100 kΩ/N at full output. Match controller and driver quantities to the catalog circuit.
LED connection	Connect directly to LEDs; use with additional downstream drivers is not suitable.

Environment, cooling and derating

Parameter	Model-specific information
Cooling and case temperature	Fanless free-air convection. Tcase −40 to +85°C; maximum case temperature +85°C at the marked tc point. Case temperature is not ambient temperature.
Horizontal installation limits	At 100 VAC, full load extends to +50°C ambient; at 230 VAC, to approximately +55°C. The horizontal case-temperature curve stays at full load through +85°C. The −40 to below −30°C region is marked for 230 VAC input only. Observe both ambient and case limits.
Working humidity	20–95% RH, non-condensing.
Storage conditions	−40 to +80°C; 10–95% RH, non-condensing.
Temperature coefficient	±0.03%/°C over 0–60°C.
Vibration	10–500 Hz, 5G; 12 minutes per cycle, 72 minutes on each of X, Y and Z axes.
Altitude derating	For this fanless model above 2000 m (6500 ft), reduce the permitted ambient temperature by 3.5°C per additional 1000 m.
Reference performance curves	PF, THD and efficiency plots use Tcase 65°C. THD and efficiency examples use a 1750 mA setting; they are not guaranteed values at every operating point.

Dimensions, wiring and installation

Parameter	Model-specific information
Housing / dimensions	Round metal IP67 housing; with a fitted protective-earth connection. Ø130 × 56 mm (D × H), as listed in the specification table; the mechanical drawing separately gives Ø126.6 × 56 mm. Confirm the mechanical fit against the actual drawing before installation.
Mechanical drawing	Case No. 280; dimensions in mm, tolerance ±1 mm. Drawing diameter Ø126.6 mm and height 56 mm. Four Ø6 mm mounting holes on a 113 × 113 mm span.
Fixed AC input cable	300 ±20 mm; SJOW 17 AWG × 3 conductors / H05RN-F 3 × 1.0 mm². AC/L = brown; AC/N = blue; PE = green/yellow protective earth.
DC output cable	200 ±20 mm; SJOW 17 AWG × 2 conductors, with the drawing also marking 05RN-F 1.0 mm². +V = red; −V = black.
Temperature measurement	Use the marked tc point at the 20 / 14.5 mm offsets in the drawing. The Ta reference is illustrated at 150 mm and 45° from the housing.
Unit mass	800 g: catalog PACKING reference per unit, 0.8 kg × 1000. Not a measured shipping weight.
Suspension and transport	Inspect for cracks if packaging is damaged; do not drop or bump the driver. Tighten all screws, including the suspension screw, with spring washers. Limit the complete luminaire, including the driver, to 10 kg. Protect against shock during packing and transport. The hanger, chain and high-bay illustrations are installation examples, not included accessory order codes.
Control cable	UL 2517, 22 AWG × 2 conductors, 350 ±20 mm. DIM+ = purple; DIM− = pink.

Installation manual requirements

Parameter	Model-specific information
Installation safety	Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself.
Ventilation and mounting	Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements.
System wiring and protection	Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system.
Environmental and load limits	Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person.
Connection seals and support	If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications.
Protective-earth installation	Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram.
Weather protection	This IP67 model with an output adjustment device must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.
Dimming isolation	This model’s catalog explicitly specifies an isolated 3-in-1 dimming circuit. Follow its analog DIM interface; do not substitute the HBG nonisolated-interface instruction.
Control-circuit installation	The catalog control conductors are 22 AWG, smaller than 18 AWG. The installation manual requires connection only to a SELV controller or network for such standalone dimming conductors; contact MEAN WELL before using FELV control. Verify compatibility with this exact analog or digital interface.

Standards and catalog conditions

Parameter	Model-specific information
Safety standards	UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1, 61347-2-13 independent and 62384; IS 15885 (Part 2/Sec 13); GB/T 19510.1 and GB/T 19510.213; IP67; EAC TP TC 004, as listed in the catalog. Products supplied from the Americas may lack PSE/CCC/BIS/KC logos; verify the required regional marks for the actual unit.
Type HL installation condition	For this AB option, use a built-in installation or fill the Io adjustment hole with potting compound to meet the catalog Type HL application condition for Class I, Division 2. Final luminaire suitability must be assessed.
Output safety designation	SELV is shown in the series catalog; maintain the specified wiring and final equipment protection.
Withstand voltage	Input–output: 3.75 kVAC; input–earth: 2 kVAC; output–earth: 1.5 kVAC.
Isolation resistance	100 MΩ at 500 VDC, 25°C and 70% RH, for input–output, input–earth and output–earth.
EMC emission	Conducted and radiated: BS EN/EN 55015 (CISPR 15), GB/T 17743. Harmonics: BS EN/EN 61000-3-2 and GB 17625.1, Class C at load ≥50%. Voltage flicker: BS EN/EN 61000-3-3.
EMC immunity	BS EN/EN 61547. Tests to BS EN/EN 61000-4-2: level 3, 8 kV air / level 2, 4 kV contact; -4-3 radiated level 3; -4-4 EFT level 3; -4-5 surge 4 kV line–line / 6 kV line–earth; -4-6 conducted level 3; -4-8 magnetic field level 4; -4-11 dips >95% for 0.5 periods and 30% for 25 periods, interruptions >95% for 250 periods.
Final equipment EMC	This driver is a component of final equipment; the complete luminaire installation must be requalified for EMC because wiring and installation affect compliance.
MTBF	2871.3 thousand hours minimum, Telcordia SR-332 (Bellcore); 188.8 thousand hours minimum, MIL-HDBK-217F at 25°C.
Service life and warranty	The specification lists 50,000 hours minimum; its typical-life note states more than 50,000 hours with the tc point at about 75°C or below. The catalog states a 5-year warranty, subject to the manufacturer’s warranty terms.
Lifetime reference curve	Approximately 100,000 hours at Tcase ≤65°C, 70,000 at 70°C, 50,000 at 75°C and 35,000 at 80°C. Approximately 25,000 hours at 85°C. These are readings of the reference curve, not an extension of the warranty or a guarantee at every operating point.
Measurement conditions	Unless otherwise specified: 230 VAC input, rated output current and 25°C ambient. Typical values and example curves retain their stated test conditions.
Circuit operating frequencies	Block diagram: PFC oscillator 45–50 kHz; PWM oscillator 60–130 kHz.
