Description

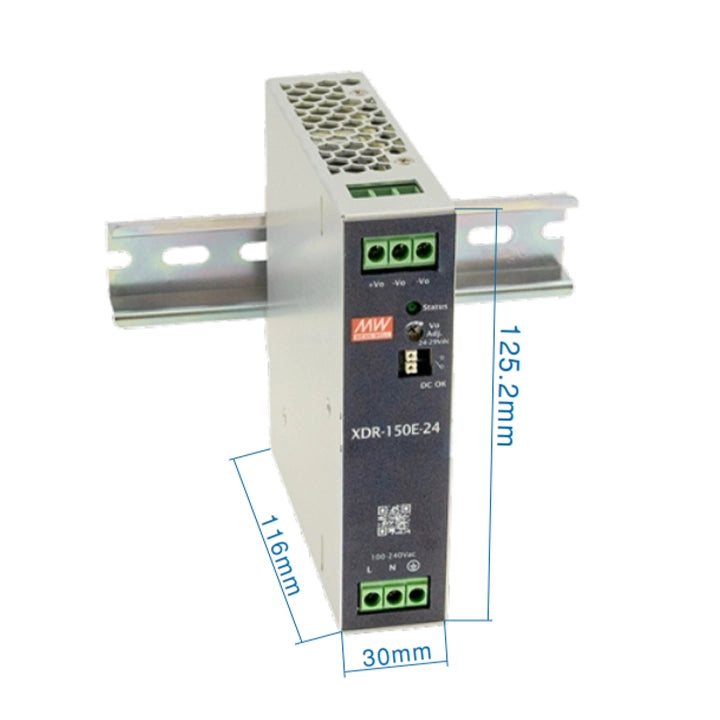

Output voltage: 24V Output current rating 115VAC:5.2A,230VAC:6.5A Output current range 115VAC:0~5.2A,230VAC:0 ~ 6.5A Output power rating 115VAC:124.8W,230VAC:156W economic type Voltage adjustment range: 24~29V Input AC voltage range: 85 ~ 264VAC Input DC voltage range: 120 ~ 370VDC Size (mm):30X125.2X116
Click to download Airtac product catalog
Product Features
1.85 ~ 264Vac input, multi-field global certification (ITE 62368-1, industrial 61558-1/-2-16,61010),30mm ultra-thin width.
2. The efficiency is as high as 91%, no-load power consumption is 0.6W ~ 1W, built-in constant current limiting circuit, protection: short circuit/overload/overvoltage/overtemperature, fanless design, natural air cooling.
3. Overvoltage category III (OVC III),-40 ~ +70 ℃ wide working temperature range (>+50 ℃ reduction), working height up to 5000 meters.
4. Built-in DC OK relay contact, can be installed on TS-35/7.5 or 15 DIN rail, 3 years warranty.
