Description

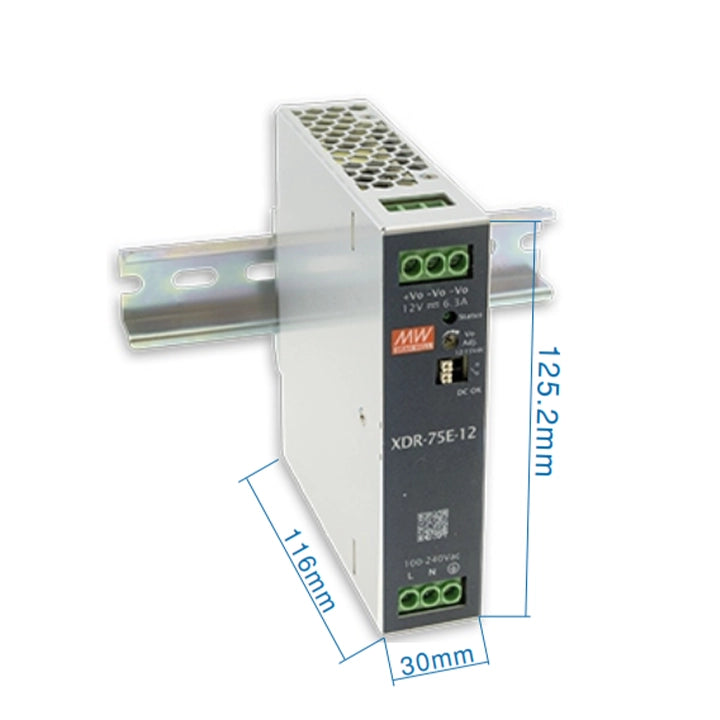

Output voltage: 12V Output current: 0 ~ 6.3A Output power rating: 75.6W economic type Output voltage adjustment range: 12~15V Input AC voltage range: 85 ~ 264VAC Input DC voltage range: 120 ~ 370VDC Size (mm):30X125.2X116
Click to download Airtac product catalog
Product Features
1.85 ~ 264Vac input, multi-field global certification (ITE 62368-1, industrial 61558-1/-2-16,61010),30mm ultra-thin width.
2. The efficiency is as high as 91%, no-load power consumption <1W, built-in constant current limiting circuit, protection: short circuit/overload/overvoltage/overtemperature, fanless design, natural air cooling.
3. Overvoltage category III (OVC III),-40 ~ +70 ℃ wide working temperature range (>+50 ℃ reduction), working height up to 5000 meters.
4. Built-in DC OK relay contact, can be installed on TS-35/7.5 or 15 DIN rail, 3 years warranty.
