Description

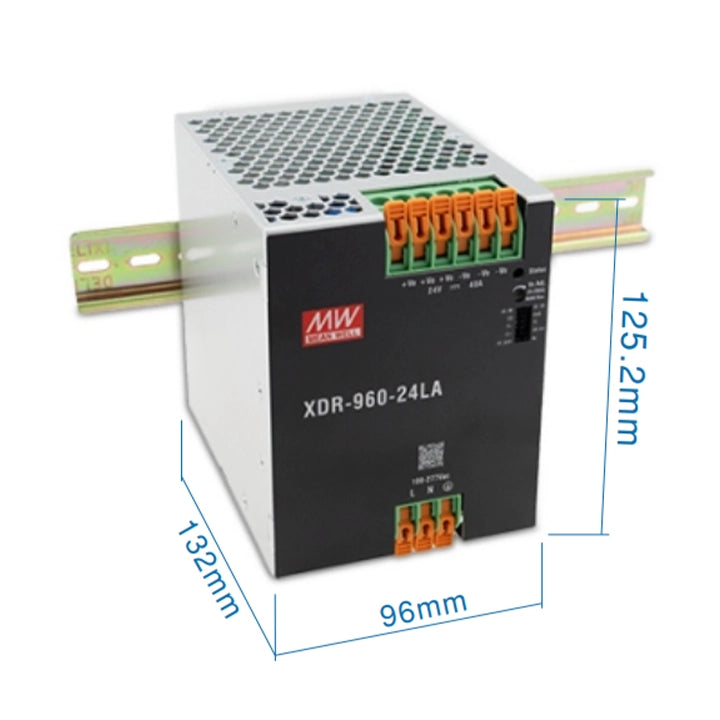

Output voltage: 24V Output load current range: 0 ~ 40A Rated power: 960W Peak current (5 seconds):80A Peak power (5 seconds):1920W Voltage adjustment range: 24~29V Input AC voltage range: 85 ~ 305VAC Input DC voltage range: 80 ~ 431VDC (50% load reduction 80VDC) Output Terminal Type: Lever-Actuated Size (mm):96X125.2X132
Click to download Airtac product catalog
Product Features
1.85 ~ 305Vac input (277Vac available), multi-domain global certification (ITE 62368-1, Industrial 61558-1/-2-16,61010) and Marine DNV,SEMI47,CID2 HazLoc certification.
2.96mm ultra-thin width, efficiency up to 96%,R.C no-load power consumption <1.5W, built-in MODBus protocol, 200 peak power, 600 transient peak current, built-in constant current limiting circuit.
3. Parallel function, up to 3840W(3+1), protection: short circuit/overload/overvoltage/overtemperature, fanless design, natural air cooling, overvoltage category III (OVC III),-40 ~ +85 ℃ wide operating temperature range (>+60 ℃ reduction).
4. The working height can reach 5000 meters, with built-in remote switch control and DC OK relay contact, ultra-low surge current <10 ~ 23A, built-in ORing FET, tool-free terminal block (LA type).
5. Protective coating, can be installed on TS-35/7.5 or 15 DIN rail, 5 years warranty.
