MEAN WELL XLC-25 series: constant-voltage LED driver - XLC-25-24-S

Description

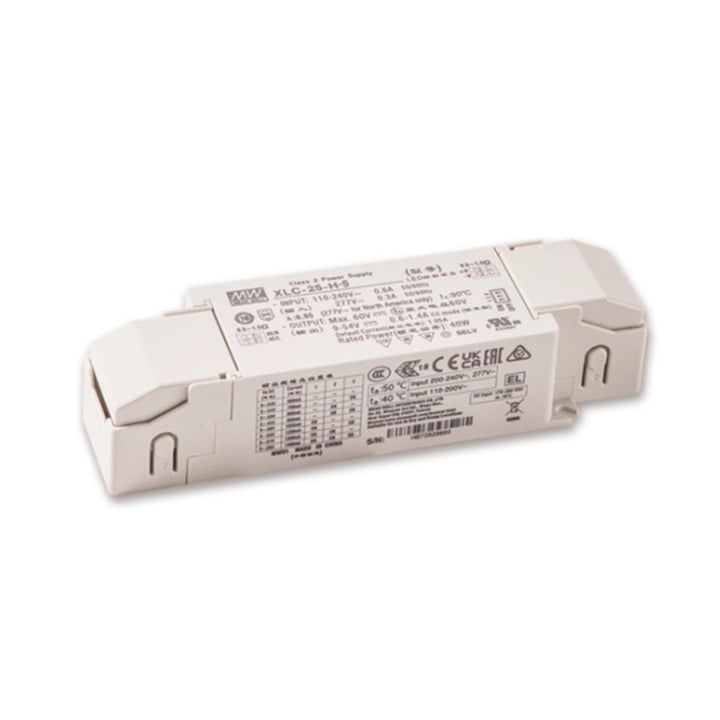

MEAN WELL XLC-25-24-S

XLC-25-24-S is a 25.2 W constant-voltage LED driver. It supplies 24 VDC at 1.05 A. Independent type with strain-relief caps (S). Non-dimming.

Output specifications

Parameter Specification
Model and configuration XLC-25-24-S; Independent type with strain-relief caps (S). Non-dimming.
Output mode Fixed 24 VDC constant-voltage output.
Rated output power 25.2 W (catalog rating)
Output current 1.05 A
Maximum ripple and noise 240 mVp-p; 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 μF and 47 μF capacitors.
Voltage tolerance ±4%; includes initial setup tolerance, line regulation and load regulation.
Line and load regulation Line ±0.5%; load ±2%.
Typical efficiency 88%.
Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient.

Control and dimming

Parameter Specification
Control function Non-dimming Blank function. Fixed-voltage output; no adjustable-current H function.

Input and protection

Parameter Specification
AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source.
Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC.
Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC.
AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC.
Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410.
16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation.
Leakage current <0.75 mA at 277 VAC.
Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time.
Short circuit Hiccup mode; automatically recovers after the fault is removed.
Overload protection 105–220% of rated output power; hiccup mode with automatic recovery after fault removal.
Overvoltage protection 26–32 V; output shuts down and latches off; reapply power to recover.
Overtemperature protection Output shuts down; automatically recovers after the fault is removed.

Thermal and environmental limits

Parameter Specification
Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them.
Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating.
Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together.
Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver.
Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis.
Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration.
MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively.

Safety and compliance conditions

Parameter Specification
Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV.
Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references.
Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range.
RCM and regional marks Catalog RCM note: voluntary RCM; the S independent control gear is Non-IC classified and is not suitable for residential installations. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region.
Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH.
EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3.
EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods.
Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL.
ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation.

Mechanical and installation details

Parameter Specification
Dimensions 147 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm.
Unit weight 160 g, catalog individual-unit PACKING value.
Mounting and case Case XLC-25-S; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances.
Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V.
Wiring size TB1 input: 0.75–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing.
Strain relief S configuration includes strain-relief caps.

Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC.

Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
