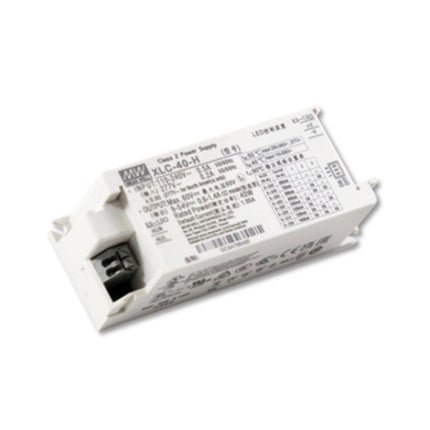

MEAN WELL XLC-40-H
XLC-40-H is a 40 W multiple-stage constant-power LED driver. Its 0.6–1.4 A output is configured by DIP switch, with a 1050 mA factory setting. Built-in type without strain-relief caps. Non-dimming.
Output specifications
| Parameter |
Specification |
| Model and configuration |
XLC-40-H; Built-in type without strain-relief caps. Non-dimming. |
| Output mode |
Multiple-stage constant-power H type with selectable constant-current operating points. |
| Rated output power |
40 W (catalog rating) |
| Output current |
0.6–1.4 A adjustable |
| Default current |
1050 mA |
| Constant-current region |
9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 40 W power limit. |
| Open-circuit voltage |
60 V; the output hiccups under no-load conditions. |
| Current ripple |
<4% at full load. |
| Current tolerance |
±5% (main output specification). |
| Current setting |
DIP switch setting, selected by this model suffix. |
| Typical efficiency |
88%; measured at 800 mA / 50 V output set by DIP switch or NFC. |
| Measurement basis |
Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. |
Output-current configuration
Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 40 W product rating.
| Parameter |
Specification |
| 600 mA |
9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / OFF. |
| 700 mA |
9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / ON. |
| 800 mA |
9–50 V recommended operating window. DIP 1/2/3: OFF / ON / OFF. |
| 900 mA |
9–45 V recommended operating window. DIP 1/2/3: OFF / ON / ON. |
| 1050 mA (default) |
9–38 V recommended operating window. DIP 1/2/3: ON / OFF / OFF. |
| 1200 mA |
9–33 V recommended operating window. DIP 1/2/3: ON / OFF / ON. |
| 1300 mA |
9–31 V recommended operating window. DIP 1/2/3: ON / ON / OFF. |
| 1400 mA |
9–29 V recommended operating window. DIP 1/2/3: ON / ON / ON. |
Control and dimming
| Parameter |
Specification |
| Control function |
Non-dimming Blank function. Output current is configured by DIP switch. |
Input and protection
| Parameter |
Specification |
| AC and DC input |
100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. |
| Power factor |
Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. |
| Total harmonic distortion |
<10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. |
| AC input current |
0.5 A / 115 VAC; 0.25 A / 230 VAC; 0.2 A / 277 VAC. |
| Cold-start inrush |
10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. |
| 16 A circuit breaker loading |
51 / 51 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. |
| Leakage current |
<0.75 mA at 277 VAC. |
| Setup and rise time |
500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. |
| Short circuit |
Hiccup mode; automatically recovers after the fault is removed. |
| Overtemperature protection |
Derates to the lowest output level. Automatically recovers after the fault is removed. |
Thermal and environmental limits
| Parameter |
Specification |
| Cooling and ambient limits |
Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. |
| Case temperature |
Tcase −25 to +90°C; maximum +90°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. |
| Input/load derating |
At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. |
| Altitude derating |
Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. |
| Humidity and storage |
Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. |
| Temperature coefficient |
±0.03%/°C over 0–50°C. |
| Vibration |
10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. |
| Lifetime and warranty |
>50,000 hours typical life when Tcase at the tc point is about 75°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. |
| MTBF |
3935.2 / 342.9 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. |
Safety and compliance conditions
| Parameter |
Specification |
| Construction |
Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. |
| Safety standards |
ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. |
| Emergency-lighting condition |
The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. |
| RCM and regional marks |
Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. |
| Insulation |
Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. |
| EMC emissions |
BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. |
| EMC immunity |
BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. |
| Light flicker |
PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. |
| ErP and final equipment |
For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. |
Mechanical and installation details
| Parameter |
Specification |
| Dimensions |
107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. |
| Unit weight |
193 g, catalog individual-unit PACKING value. |
| Mounting and case |
Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. |
| Terminal assignment |
TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. |
| Wiring size |
TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. |
| Strain relief |
Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. |
Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC.
Catalog reference: XLC-40, pages 42–52 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
