Description

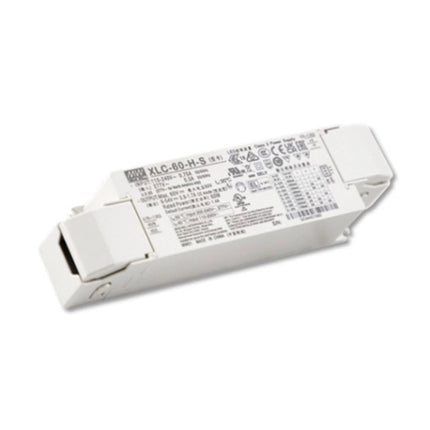

输出开路电压:60V Output current rating: 1400mA Output current adjustment range (via DIP switch or NFC):0.9 ~ 1.7A Output constant current range: 9~54V Output power rating: 60W Input voltage: 100 ~ 305VAC,155 ~ 400VDC Function: The output current can be adjusted by Dial switch or NFC, and built-in DALI-2 dimming function, standard product Housing type: with free-standing side cover (free-standing) Current setting mode: NFC setting Size (mm):176 X45X 32,136X45X32
Product Features
1. The constant power design can adjust the output current (H type) in a wide range, and the constant voltage output model can be 12V/24V/48V.
2. NFC induction adjusts the output current, full voltage input 100 ~ 305VAC, with PFC function.
3, plastic shell double insulation and Class II design, in line with UL8750 class 2/class P power supply.
4. Comply with IEEE 1789 and ErP no stroboscopic standard, standby power consumption <0.5W.
5. The minimum dimming brightness level is 0.1%.
6. The full potting design conforms to IP67 waterproof and dustproof (XLN series) and emergency lighting (EL) function.
7. Dimming function: three-in-one, DALI-2, KNX, Matter; The output and dimming circuit conform to the isolation design.
8. Independent or built-in LED drive power supply optional (XLC series);5-year warranty> 50,000 hrs life.
