MEAN WELL XLC-60-MA series: Matter constant-power LED driver - XLC-60-H-MAS

Description

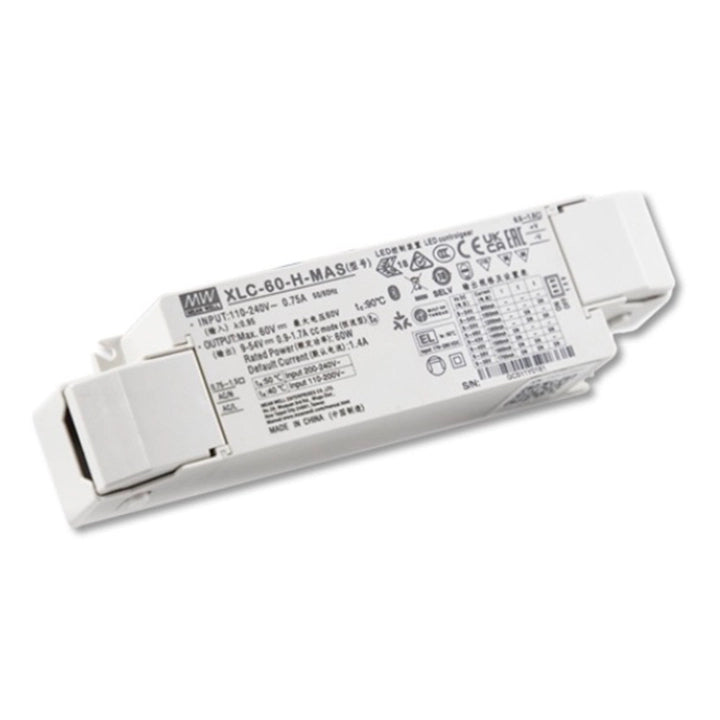

MEAN WELL XLC-60-H-MAS

XLC-60-H-MAS is a 60 W multiple-stage constant-power LED driver with Matter 1.3 over Thread wireless dimming. Current is selectable from 0.9–1.7 A via DIP switch, with a 1400 mA factory default. Independent type with strain-relief caps (S). Applications include recessed, down, panel, commercial and decorative lighting.

Output specifications

Parameter Specification
Model and configuration XLC-60-H-MAS; Independent type with strain-relief caps (S).
Output mode H type: selectable constant-current operating points within a multiple-stage constant-power envelope.
Rated output power 60 W; apply input-voltage and thermal limits.
Output current 0.9–1.7 A selectable by DIP switch; factory default 1400 mA.
Constant-current region 9–54 V overall envelope; each current setting has its own recommended LED-string voltage window below.
Open-circuit voltage 60 V; output hiccups under no-load conditions.
Current ripple <4%; measured at 50–100% of maximum voltage under rated power delivery.
Current tolerance ±5%.
Typical efficiency 90%; measured at 1050 mA / 54 V output set by DIP switch.
Measurement basis Unless otherwise stated: 230 VAC input, rated current and 25°C ambient.

Output-current selection

Select the current using DIP switch. Match the LED-string forward voltage to its listed window and the I–V envelope. Rounded table endpoints do not increase the 60 W rating.

Parameter Specification
900 mA 9–54 V recommended LED window. DIP 1/2/3: OFF / OFF / OFF.
1050 mA 9–54 V recommended LED window. DIP 1/2/3: OFF / OFF / ON.
1200 mA 9–50 V recommended LED window. DIP 1/2/3: OFF / ON / OFF.
1300 mA 9–46 V recommended LED window. DIP 1/2/3: OFF / ON / ON.
1400 mA (default) 9–43 V recommended LED window. DIP 1/2/3: ON / OFF / OFF.
1500 mA 9–40 V recommended LED window. DIP 1/2/3: ON / OFF / ON.
1600 mA 9–38 V recommended LED window. DIP 1/2/3: ON / ON / OFF.
1700 mA 9–36 V recommended LED window. DIP 1/2/3: ON / ON / ON.

Control and commissioning

Parameter Specification
Wireless control Matter 1.3 over Thread; Matter-certified wireless dimming. Minimum dimming level 0.5%, up to 100%, with OFF control. Built-in antenna.
Matter commissioning Use a compatible Matter ecosystem/app and its required Thread access or border-router arrangement, with a stable network. Add the hub where required, connect the phone to the correct network, power the luminaire and scan the individual driver’s QR code in the app. Confirm pairing readiness as described in the manual and the status note below. A previously paired unit can be factory-reset before pairing again.
Ecosystem examples The 2025.03 manual illustrates Apple Home with HomePod and iOS 16.1 or later, and Aqara Home with Hub M3 on the same LAN as the phone. Its Apple example allows direct pairing without HomePod for iPhone 15 Pro / 15 Pro Max or later models running iOS 18 or later; confirm the selected platform’s capabilities. These are third-party system examples, not supplied MEAN WELL accessories.
Network capacity The manual recommends no more than 250 Thread devices for typical applications; actual capacity depends on hub processing and topology. Consult the hub provider and test the installation rather than treating this as a guaranteed driver count.
Status indicator Fast flashing: factory reset running. Constant ON: Matter connected. Constant OFF: Matter disconnected and Bluetooth broadcast OFF. Slow-flash documentation differs: the 2025-03-11 XLC-60-MA catalog calls it factory reset, while the 2025.03 Ver 0 Matter manual calls it Bluetooth broadcast / pairing. Confirm the indication for the actual hardware with MEAN WELL.
Antenna placement The antenna is on the DC-output side. Keep it as far as practical from vertical metal structures. On a metal mounting plate, leave the antenna unobscured and provide a cutout beneath it. Range depends on surroundings and placement; adjust and test on site.
Reset button Hold RESET for 10 seconds; release when the indicator flashes quickly to complete factory reset.
AC reset sequence Follow all 11 phases: 1 ON 10–15 s; 2 OFF >30 s; 3 ON 2–5 s; 4 OFF >30 s; 5 ON 10–15 s; 6 OFF >30 s; 7 ON 2–5 s; 8 OFF >30 s; 9 ON 2–5 s; 10 OFF >30 s; 11 ON >25 s, waiting for the output to stop flashing. A valid sequence makes the output light flash for 15 s; cessation confirms completion, equivalent to button reset.
Restarting an incorrect reset sequence Before restarting at phase 1, use either manual recovery method: after an OFF interval >30 s, keep AC ON >25 s; or apply two ON periods of 2–5 s each, with OFF >30 s before, between and after them. Follow the full timing diagram, not arbitrary repeated switching.

Input and protection

Parameter Specification
AC and DC input 100–305 VAC; 155–400 VDC. Frequency 47–63 Hz. Confirm the applicable DC wiring before connection.
Power factor Active PFC. At full load: ≥0.95 at 115/230 VAC; ≥0.9 at 277 VAC.
Total harmonic distortion <20% at load ≥60% / 230 VAC or ≥75% / 277 VAC; <10% at full load / 230 VAC.
AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC.
Cold-start inrush 15 A, width 310 μs measured at 50% Ipeak, 230 VAC; per NEMA 410.
16 A circuit breaker loading 25 / 36 units on type B / type C respectively at 230 VAC, under catalog reference conditions. Verify the actual breaker and installation.
Leakage and standby Leakage <0.75 mA at 277 VAC. Standby <0.5 W with dimming OFF, measured at 230 VAC.
Setup and rise time 2500 ms setup / 100 ms rise at both 230 VAC and 115 VAC. Setup is measured at the first cold start; turning the driver ON/OFF may increase setup time.
Short circuit Hiccup mode; automatically recovers after the fault is removed.
Overtemperature protection Stage 1 reduces loading to 75%; stage 2 reduces it to 50%. Automatically recovers after the fault is removed.

Thermal and environmental limits

Parameter Specification
Cooling and ambient limits Free-air convection. Published curves apply to horizontal mounting: 100% load from −25°C through +40°C ambient at 110 VAC, and through +50°C at 230 VAC. These curves end at the stated limits; no higher-temperature slope is specified.
Case temperature Tcase −25 to +90°C; maximum +90°C at the designated tc point. The case limit is distinct from ambient temperature.
Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply input and thermal limits together.
Altitude derating For this fanless driver above 2000 m, reduce permissible ambient temperature by 3.5°C per additional 1000 m.
Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis.
Typical life 50,000 operating hours when the tc point is about 75°C or lower.
MTBF 4130.5 / 317.7 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively.

Safety and compliance conditions

Parameter Specification
Construction Plastic Class II housing with SELV output and active PFC.
Safety standards CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL) Appendix J; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004, as listed in the safety approval row. AS/NZS61347-1 and -2-13 are design references.
Emergency-lighting condition EL / Appendix J emergency installation: 176–280 VDC input. This condition is distinct from the normal DC-input range.
RCM condition Voluntary RCM. The S independent control gear is Non-IC classified and is not suitable for residential installations.
Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥60%; voltage flicker BS EN/EN61000-3-3.
EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods.
Light flicker Catalog flicker-free / CE ErP design: PstLM ≤1 and SVM ≤0.4, measured at full load with the MEAN WELL light source.
Final equipment and warranty The final-equipment manufacturer must requalify EMC on the complete installation. Manufacturer warranty: 5 years under normal usage, subject to its terms; do not replace parts or modify the product.

Mechanical and installation details

Parameter Specification
Dimensions 176 × 45 × 32 mm (L × W × H), drawing tolerance ±1 mm.
Unit weight 300 g; individual-unit PACKING weight.
Mounting Case XLC-60-S; two Ø3.6 mm mounting holes, 128 mm longitudinal spacing. Follow the complete casing drawing.
Temperature measurement point 54 mm from the output-side body edge and 22.5 mm from the lower body edge. Measure at the marked tc point.
Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V.
Catalog conductor preparation TB1: 0.75–1.5 mm²; TB2: 0.5–1.5 mm². Strip 8–9 mm. Values are from this model’s mechanical drawing.
Casing Independent type with strain-relief caps (S).

Match the LED load, casing and terminal arrangement to this exact model; maintain the specified free-air-convection conditions and check the tc point in the completed installation. Follow the applicable manual for commissioning and any documented source differences.

Catalog reference: XLC-60-MA, combined PDF pages 41–49; 2025-03-11.
