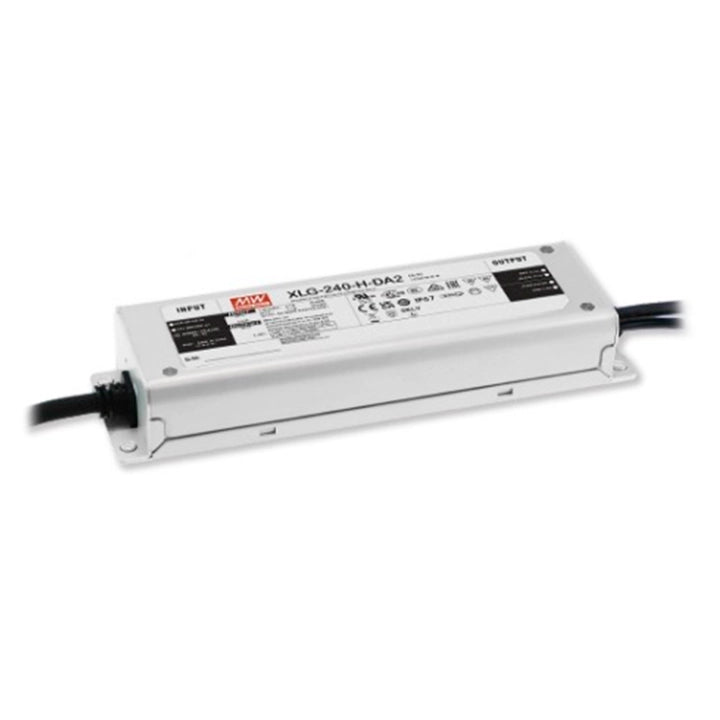

Description
Output current rating (default):4900mA Output power rating: 239.6W Output constant current range: 27~56V Output full power current range: 4280 ~ 6660mA Output open circuit voltage (maximum):65V Input voltage: 100 ~ 305VAC,142 ~ 431VDC Indian version (input overvoltage protection on request) Function: DALI-2 control technology and constant current output value can be adjusted by built-in potentiometer and 12V/250mA auxiliary output, fixed products Size (mm):216X63X35.5
Product Features
1. Full voltage input range: 100 ~ 305VAC(Class I).
2. Full power output in 70% ~ 100% constant power mode.
3. Metal case, IP67 protection grade, 6KV/4KV lightning protection.
4. The minimum dimming brightness of DALI-2 is 8%.
5.12V/250mA auxiliary power supply (optional, XLG-150-320).
6. The Indian version (EESL) has input overvoltage protection and can withstand.
7. 440VAC power supply stress up to 48 hours, protection type: short circuit/over temperature/input over voltage.
8, life> 50000 hours; 5 years warranty.
