MEAN WELL XLG-200 series: constant-power constant-current LED driver - XLG-200I-H

Description

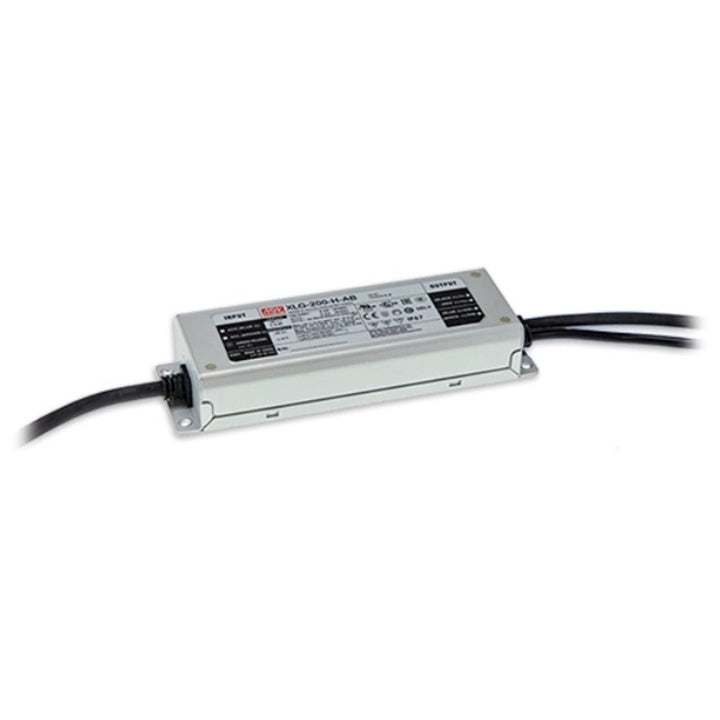

XLG-200I-H LED driver

MEAN WELL XLG-200I-H is a 200 W constant-power LED driver with a 3500 mA factory current setting and a 27–56 V constant-current operating region. This version provides fixed factory current. The LED load must fit the published I–V boundary and power limit; the full voltage/current rectangle is not usable.

Download MEAN WELL XLG-200 Datasheet (PDF)Download MEAN WELL LED Installation Manual

XLG catalog, PDF pages 51–59; XLG-200 specification dated 2026-02-04. The complete SKU identifies the output and control option.

Output and model selection

Rated output 200 W; factory current 3500 mA.
Constant-current voltage region 27–56 V, subject to the I–V operating envelope.
Full-power current range 3500–5550 mA. Rated power requires a compatible LED forward voltage within the operating boundary.
Current adjustment Factory-fixed current for Blank type; the default reference is 3500 mA. A different factory setting requires agreement with the manufacturer; no accessible adjustment or remote dimming function is specified for this Blank SKU.
I–V boundary points Catalog boundary vertices, in mA / V: 1750 / 56; 3500 / 56; 5550 / 36; 5550 / 27; 3700 / 27. These identify the operating area, not simultaneous maximum output values or an overload rating.
Open-circuit voltage 60 V maximum.
Current ripple 3% under the catalog condition “Load ≥50% rated voltage”.
Current tolerance ±5%.

Input and performance

Input voltage 100–305 VAC / 142–431 VDC. Respect the low-input-voltage derating curve; the DC range is an input rating, not an LED output range.
Input frequency 47–63 Hz.
Input/load derating At 60 Hz: 80% load at 100 VAC, increasing to 100% at 110 VAC; 100% from 110 to 305 VAC.
Power factor Active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load.
Total harmonic distortion <10% at load ≥50% on 115/230 VAC; <10% at load ≥75% on 277 VAC.
Efficiency 93% typical, under the catalog specification conditions.
AC input current 2.2 A at 115 VAC; 1.1 A at 230 VAC; 0.9 A at 277 VAC.
Inrush current Cold start 65 A at 230 VAC; pulse width 550 µs measured at 50% Ipeak, per NEMA 410.
Circuit-breaker reference Maximum 3 B-type / 6 C-type units on a 16 A breaker at 230 VAC, as listed in this model’s catalog. Verify the actual breaker and installation conditions.
Leakage current <0.75 mA at 277 VAC.
Setup time 500 ms at 230 VAC; 1200 ms at 115 VAC. The catalog measures the first cold start and states that repeated ON/OFF operation may increase setup time.
India input-overvoltage option XLG-200I only: input-overvoltage shutdown at 320–390 VAC, with automatic recovery when the fault clears. The catalog states survival of 440 VAC input stress for 48 hours; this is not an operating-input rating. Consult the manufacturer regarding India-version ordering/MOQ.

Control and operating limits

Control interface Fixed factory current. No DIM lead or remote 3-in-1 dimming function is specified for this complete suffix.

Protection and recovery

Short-circuit protection Hiccup mode or constant-current limiting; automatic recovery after the fault is removed.
Overvoltage protection 61–85 V; output shutdown, re-power to recover.
Overtemperature protection Output shutdown; re-power to recover.

Cooling, environment and reliability

Case-temperature rating Working Tcase -40 to +90°C; separately listed maximum case temperature +90°C. A case-temperature rating is not an unrestricted ambient-temperature rating.
Ambient/load derating Recommended horizontal mounting: 230 VAC: 100% through +50°C, then 60% at +70°C. 110 VAC: 100% through +40°C, then 60% at +50°C. Meet the ambient-load curve and case-temperature limits together.
Case/load curve For horizontal mounting, the case-load graph remains at 100% through +90°C and ends there. Observe the working-case rating above as well.
Low-temperature startup The −40 to −30°C portion of the ambient curve applies at 230 VAC only. Below 110 VAC and at −30°C, restarting may occur within the first 5 seconds after power-on.
Cooling and altitude Fanless free-air convection. Nonstandard mounting requires appropriate derating. Above 2000 m, reduce the allowed ambient temperature by 3.5°C per additional 1000 m.
Working humidity 20–95% RH, non-condensing.
Storage conditions -40 to +80°C; 10–95% RH, non-condensing.
Temperature coefficient ±0.03%/°C over 0–60°C.
Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis.
Performance-plot conditions PF, THD and efficiency plots use Tcase 75°C. The L-type examples do not replace the tabulated efficiency for this output version.
Lifetime reference Typical operating life >50,000 hours with the marked tc/TMP point about 75°C or less. This is an operating-life reference, separate from warranty.
MTBF 2300.1 K hours, Telcordia SR-332; 200.7 K hours, MIL-HDBK-217F at 25°C; catalog minimum estimates.

Mechanical installation and wiring

Dimensions 199 × 63 × 35.5 mm (L × W × H); case 244A; drawing tolerance ±1 mm.
Mounting geometry Four Ø4.5 mm mounting holes on 188 × 45.8 mm centers; inner longitudinal drawing dimension 175 mm. Use the exact mechanical drawing for mounting clearance and horizontal orientation.
Case measurement point The drawing marks tc 85 mm from the right body edge and 35 mm from the lower body edge. Measure at this marked location for thermal assessment.
AC input cable SJOW 17 AWG, 3 conductors / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. Brown = AC/L; blue = AC/N; green/yellow = FG. Connect FG to protective earth.
Output cable SJOW 17 AWG, 2 conductors / H05RN-F 2 × 1.0 mm²; 300 ±20 mm. Red = +V; black = −V. Verify LED polarity and the installation current rating.
Unit mass reference 850 g per unit, converted from the catalog PACKING single-unit mass; not carton mass or measured shipment weight.

Safety, EMC and specification conditions

Construction Metal enclosure, Class I protective-earth construction and IP67 ingress rating, with active PFC. IP67 does not authorize immersion or remove the installation restrictions. The catalog identifies SELV output for this applicable output branch.
Safety approvals and scope This I version has no UL/CSA certificate. ENEC BS EN/EN 61347-1 and 61347-2-13 (independent), BS EN/EN 62384; GB/T 19510.1 and 19510.213; EAC TP TC 004; IP67. J61347-1(H29) and J61347-2-13(H29); KC61347-1 and KC61347-2-13. IS15885(Part2/Sec13), subject to the catalog regional-mark notes.
Regional certification conditions Americas-sourced products may lack CCC/PSE/BIS/KC marks; confirm the exact delivered unit.
Withstand voltage Input–output 3.75 kVAC; input–FG 2.0 kVAC; output–FG 1.5 kVAC.
Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG.
EMC emissions BS EN/EN 55015 (CISPR 15), GB/T 17743; BS EN/EN 61000-3-2 / GB17625.1, Class C at load ≥50%; BS EN/EN 61000-3-3.
EMC immunity BS EN/EN 61547. EN 61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3 radiated and -4-6 conducted: level 3; -4-4 EFT/burst: level 3; -4-8 magnetic field: level 4.
Surge immunity EN 61000-4-5: 4 kV line–line / 6 kV line–earth. Optional 6 kV line–line / 10 kV line–earth requires the appropriate manufacturer configuration; it is not the standard rating.
Voltage dips and interruptions EN 61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods.
Measurement conditions Unless specifically stated otherwise: 230 VAC input, rated current and 25°C ambient. Ripple/noise uses 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF / 47 µF capacitors. The complete equipment installation must be requalified for EMC.
Warranty Manufacturer catalog: 5-year warranty, subject to MEAN WELL’s warranty statement and applicable conditions.

Installation and selection

Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself.
Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements.
System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded.
Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person.
Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications.
ErP switching requirement Use this LED driver behind a switch; it must not remain permanently connected to the mains for the catalog ErP lighting-fixture application.
Selection and applications Select the complete input/output/control suffix for the LED load. The family applications include street, architectural, bay, flood and horticultural lighting, subject to the exact electrical envelope, thermal design and installation limits.
Configuration and accessories External controllers, connection hardware and any optional surge configuration must be selected for the actual model. No dedicated separately ordered accessory is included by this product description; confirm the manufacturer’s complete ordering specification for a modified configuration.
