Description

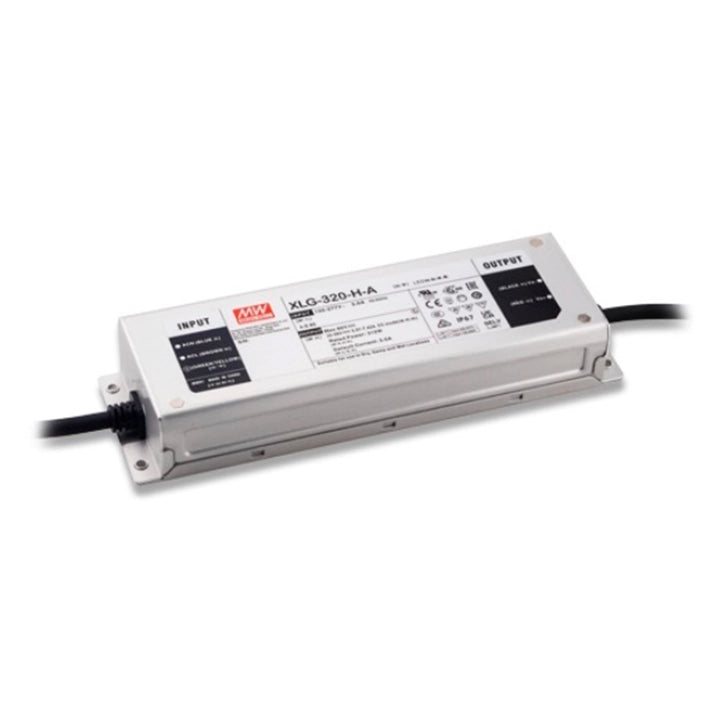

Rated output current: 6.5A Output power rating (maximum):312W Output DC voltage: 48V(43.2~52.8V adjustable) Input voltage: 100 ~ 305VAC,142 ~ 431VDC Function: The output voltage value can be adjusted by the internal potentiometer & three-in-one dimming function (constant voltage dimming without flicker), standard product Size (mm):246X77X39.5
Click to download Airtac product catalog
Product Features
1. Constant current mode output (XLG-20).
2. Constant power mode output (XLG-25 ~ 320).
3. Full power output in 70% ~ 100% constant power mode.
4. Wide input range: 100 ~ 305VAC.
5. Metal shell, IP67 protection grade; Built-in active PFC,Class 2 power supply (<100W).
6. 6KV/4KV lightning protection (10KV/6KV optional).
7. The Indian version (EESL) has input overvoltage protection (IOVP).
8. Protection type: short circuit/over current/over voltage/over temperature; 5 years warranty.
