Description

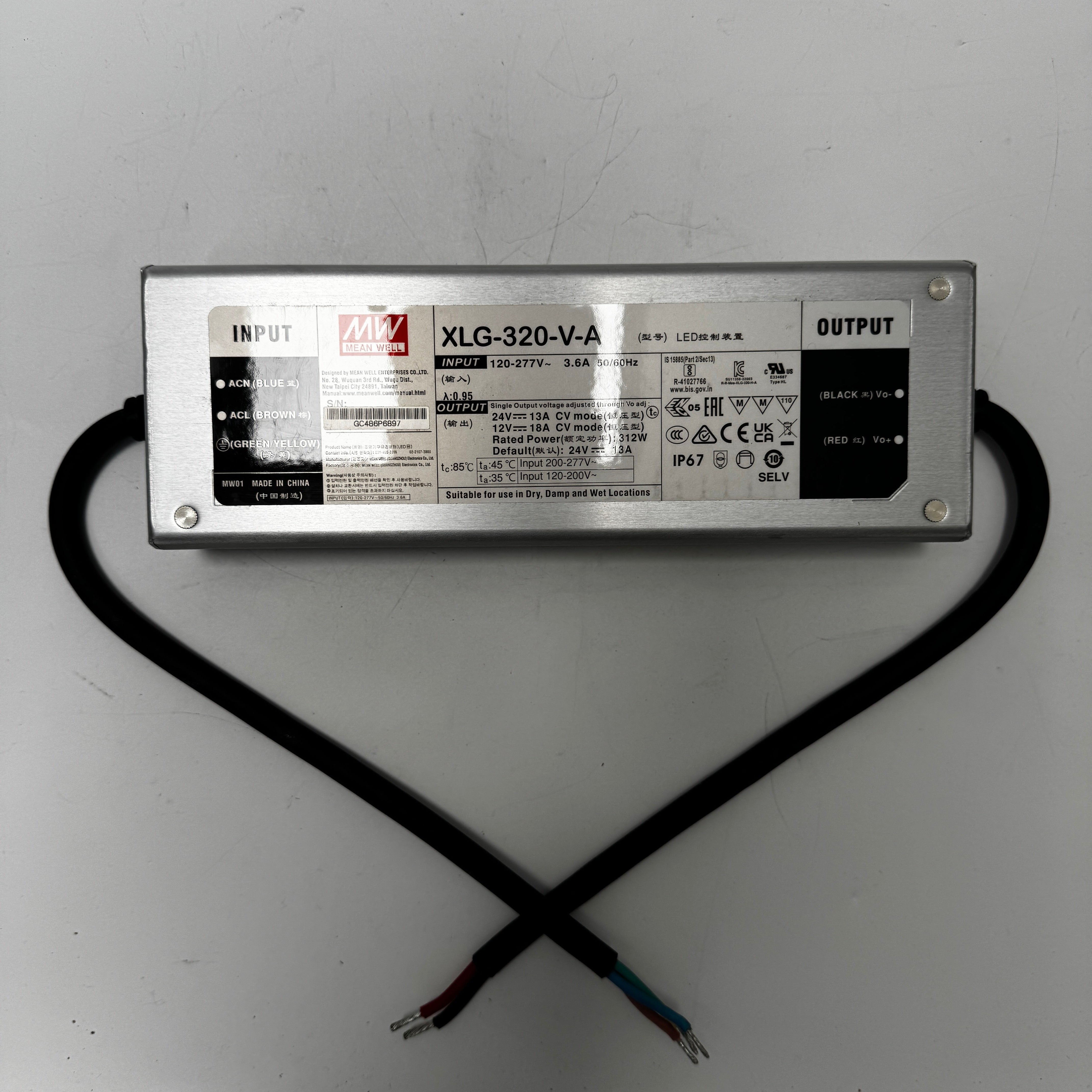

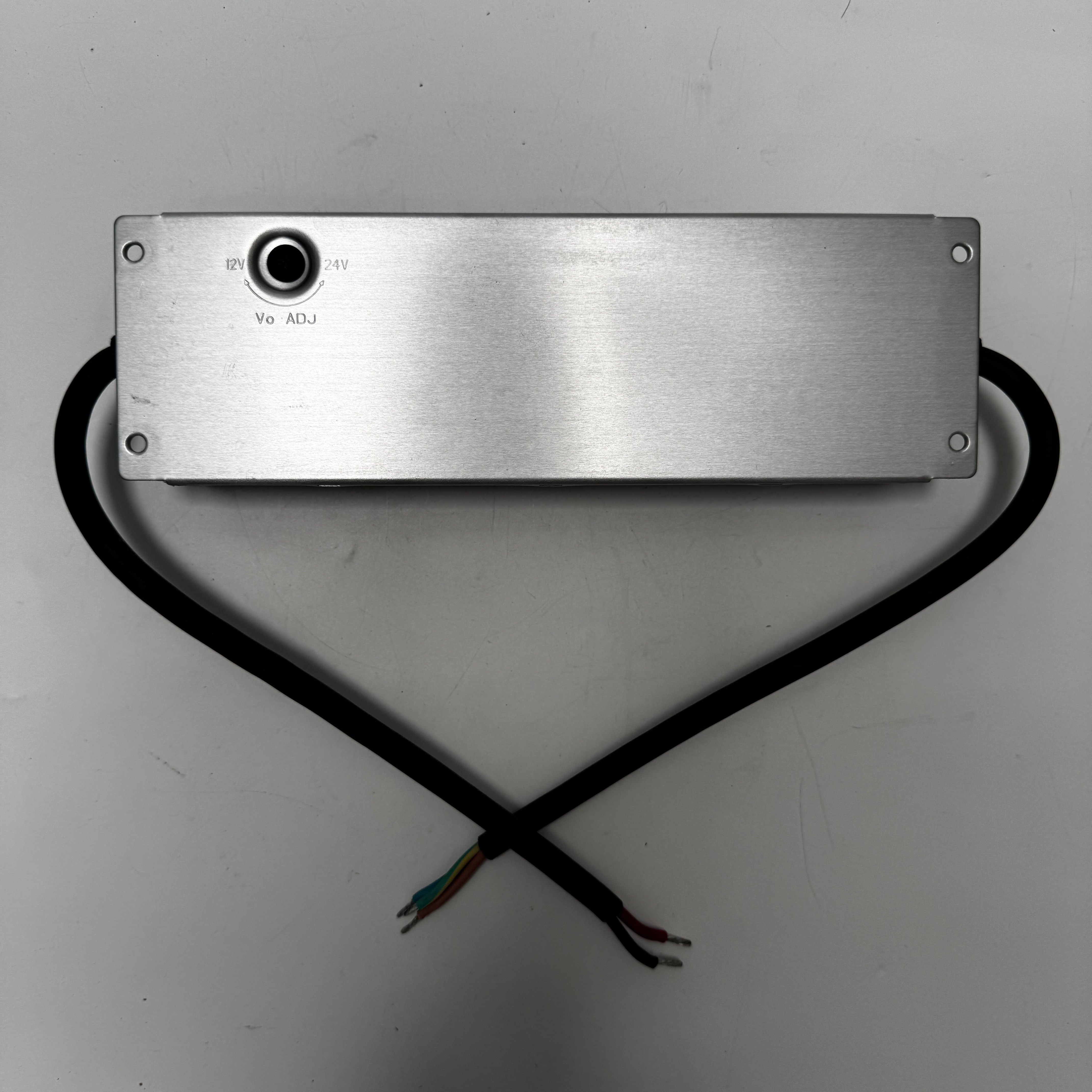

Output rated voltage (default):13A/24V Output power rating: 24V/312W,12V/216W Output constant current range: NC Output voltage adjustment range: 24V or 12V Output full power current range: 13 ~ 18A(24V/13A,12V/18A) Output open circuit voltage (maximum):NC Input voltage: 100 ~ 305VAC,142 ~ 431VDC Function: Constant power output value can be adjusted by internal potentiometer, standard product Size (mm):246X77X39.5
Product Features
1. Constant current mode output (XLG-20).
2. Constant power mode output (XLG-25 ~ 320).
3. Full power output in 70% ~ 100% constant power mode.
4. Wide input range: 100 ~ 305VAC.
5. Metal shell, IP67 protection grade; Built-in active PFC,Class 2 power supply (<100W).
6. 6KV/4KV lightning protection (10KV/6KV optional).
7. The Indian version (EESL) has input overvoltage protection (IOVP).
8. Protection type: short circuit/over current/over voltage/over temperature; 5 years warranty.
