MEAN WELL XLN-25 series: NFC Constant-Power LED Driver - XLN-25-H-DA2

Description

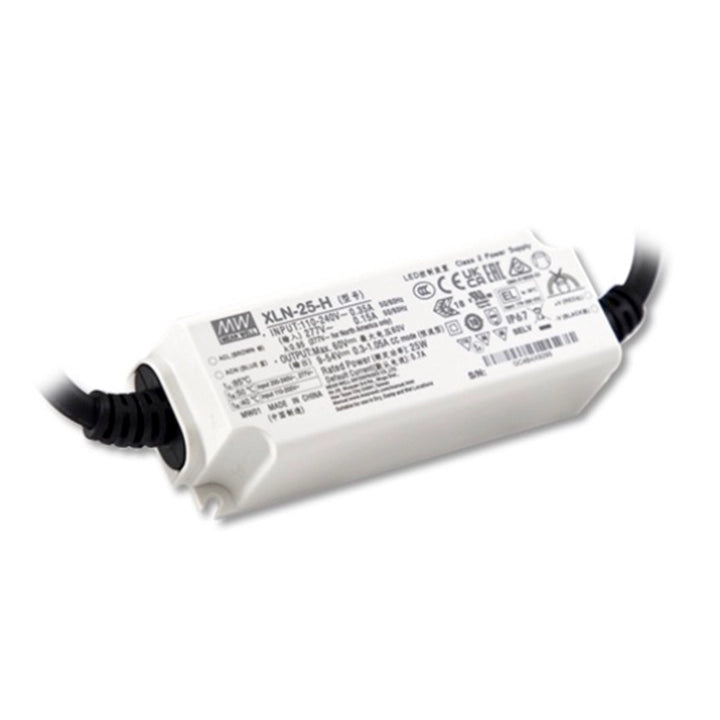

XLN-25-H-DA2 — NFC Constant-Power LED Driver

MEAN WELL XLN-25-H-DA2 is an independent LED driver with 25 W rated constant-power envelope, 700 mA default current and 300–1050 mA NFC adjustment. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. Select a compatible LED module and observe the output envelope, input and thermal limits below.

Download MEAN WELL XLN-25 Datasheet (PDF)

The combined catalog covers XLN-25 on PDF pages 1–10.

Output specifications

Parameter Specification
Full model XLN-25-H-DA2
Model code XLN-25 identifies the series; H identifies NFC-adjustable constant-current operation within a constant-power envelope. DA2 identifies DALI-2 and PUSH dimming.
Output mode Multiple-stage constant power with selectable constant current.
Rated power 25 W, subject to input and temperature limits.
Default output current 700 mA
NFC current adjustment 300–1050 mA; disconnect input power before NFC programming.
Constant-current operating region 9–54 V overall. The maximum permissible LED voltage depends on the selected current; 54 V is not available at every current setting.
Recommended current / voltage settings 300 mA: 9–54 V; 350 mA: 9–54 V; 400 mA: 9–54 V; 500 mA: 9–50 V; 600 mA: 9–42 V; 700 mA: 9–36 V (default); 900 mA: 9–28 V; 1050 mA: 9–24 V. These are the catalog’s rounded recommended windows; observe the rated 25 W power envelope and I–V plot together.
Open-circuit voltage 60 V; the output hiccups under no-load conditions.
Current ripple <4%.
Current tolerance ±5% in the specification table. The NFC procedure separately states a set-current versus actual-current numerical error within 2%; it does not replace the overall tolerance.

Control and current setting

Parameter Specification
Fitted control function Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%.
NFC app and device Use an NFC-capable phone and the MEAN WELL app. The catalog specifies Android 4.1 or iOS 12 updates. Locate the phone antenna and driver NFC sensing mark.
NFC programming sequence Turn off the driver input supply. Enable phone NFC; open MEAN WELL → Installation Manual/APP → PowerNFC, approach the sensing position and read the model and settings. Enter the required output current, tap Write, bring the phone antenna close to the sensing mark, and confirm the app displays Success. The interface also provides Read, Default and password controls.
DALI protocol DALI-2 DT6; IEC 62386-101, -102 and -207. Connect the DALI controller to the DA+ / DA− pair according to the catalog diagram.
PUSH control wiring Primary-side PUSH uses the DA+/PUSH lead through a momentary push button to AC/L, and DA−/N to AC/N. This is a mains-side connection; follow the manufacturer’s wiring diagram.
PUSH timing Factory dimming level: 100%. Short push 0.1–1 s toggles on/off; double click within 1.5 s sets 100%; long push 1.5–10 s changes brightness and reverses direction on each long push. Pulses shorter than 0.05 s do not change status.
PUSH system limits Up to 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m.
DALI startup condition The specified startup timing requires a DALI controller supporting the DALI power-on function; otherwise startup can exceed 0.5 s.
Dimming-off standby <0.5 W, measured at 230 VAC with dimming off.
NFC commissioning Use an NFC-enabled phone or tablet and the MEAN WELL app (Power NFC). Read and write parameters only with AC power off; otherwise internal magnetic interference can prevent normal current setting.
NFC reading and verification Keep the phone antenna less than 5 cm from the NFC tag. Read the current, edit the setting, then hold the antenna near the tag and select Setting. After Success, read the driver again to confirm that the intended current was saved.
NFC password The factory default has no password. A user password may contain up to 8 case-sensitive English letters or digits, with no special characters, and must be entered for subsequent writes. The password cannot be reset externally; retain it safely. Default restores the output current to its factory value.

Input and electrical performance

Parameter Specification
Input voltage 100–305 VAC or 141–400 VDC; low-line derating applies.
Input frequency 47–63 Hz
Power factor ≥0.97 at 115 VAC; ≥0.95 at 230 VAC; ≥0.92 at 277 VAC, all at full load.
Total harmonic distortion <10% at ≥50% load / 230 VAC or ≥75% load / 277 VAC; <15% at ≥50% load / 115 VAC.
Typical efficiency 88%; measured at 500 mA / 50 V.
AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC.
Setup and rise time 500 ms setup / 100 ms rise at 230 VAC; 1000 ms setup / 100 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it.
Cold-start inrush 10 A typical; width 100 μs measured at 50% peak current, 230 VAC; per NEMA 410.
16 A circuit-breaker loading 71 units on type B / 71 on type C at 230 VAC, as specified in the catalog.
Leakage current <0.75 mA at 277 VAC
Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load.

Protection functions

Parameter Specification
Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed.
Overtemperature protection Stage 1 derates to 75% load; stage 2 to 50% load. Automatic recovery after the fault condition is removed.

Environment and derating

Parameter Specification
Working case temperature Tcase −25 to +85°C; maximum case temperature 85°C. This is a case limit, not the ambient operating limit.
Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits.
Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 85°C. Apply case, ambient, input and output limits together.
Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits.
Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model.
Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes.
Life expectancy >50,000 hours typical when the marked Tc point is about 70°C or less; a temperature-dependent expectation, not a guaranteed service-life duration.
Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 700 mA and 1050 mA settings. Do not apply these curves as fixed-voltage-model guarantees.

Dimensions and wiring

Parameter Specification
Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation.
Housing dimensions 114 × 44 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm.
Mounting drawing Ø3.6 mm mounting slots; the drawing shows 106 mm longitudinal and 36 mm transverse reference dimensions.
Tc measurement point The drawing locates Tc at 56.1 mm longitudinally and 23.1 mm from the lower case edge.
AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
Single-unit catalog weight 320 g, catalog packing reference per unit. Taken directly from the per-unit PACKING entry. Not a carton-weight division or a measured shipping-package mass.
Control leads Purple: DA+/PUSH; pink: DA−/N, on the input side. UL2517, 18 AWG × 2, 180 mm nominal length.

Safety, EMC and reliability

Parameter Specification
Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog.
Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are listed as approved.
Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range.
Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥50% load; BS EN/EN 61000-3-3 voltage flicker.
EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods.
Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load.
MTBF 3949.8 K hours minimum, Telcordia SR-332 (Bellcore); 338.5 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life.
Regional markings Products sourced from China may lack the BIS logo; check the applicable certificate and supplied product. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos.
Catalog warranty 5 years, subject to the manufacturer’s warranty terms.

Selection and installation

Parameter Specification
LED-load selection Match the LED voltage and chosen current to the recommended operating envelope and rated power.
Applications Recessed, down, panel, commercial and decorative lighting.
ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement.
System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation.
Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls.

Related manufacturer instructions

Download MEAN WELL NFC User Manual

Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
