MEAN WELL XLN-40 series: NFC Constant-Power LED Driver - XLN-40-H-B

Description

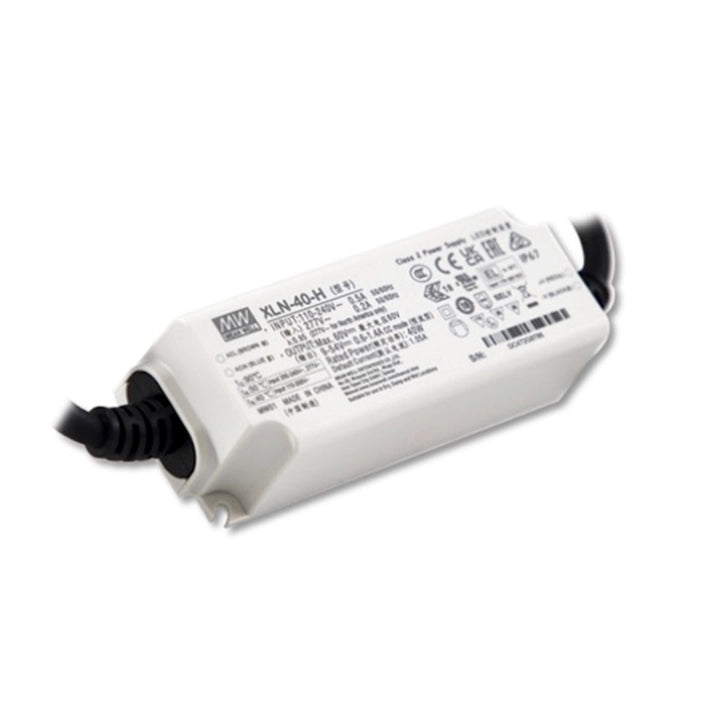

XLN-40-H-B — NFC Constant-Power LED Driver

MEAN WELL XLN-40-H-B is an independent LED driver with 40 W rated constant-power envelope, 1050 mA default current and 600–1400 mA NFC adjustment. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in 3-in-1 dimming with dim-to-off. Select a compatible LED module and observe the output envelope, input and thermal limits below.

Download MEAN WELL XLN-40 Datasheet (PDF)

The combined catalog covers XLN-40 on PDF pages 11–20.

Output specifications

Parameter Specification
Full model XLN-40-H-B
Model code XLN-40 identifies the series; H identifies NFC-adjustable constant-current operation within a constant-power envelope. B identifies 3-in-1 dimming.
Output mode Multiple-stage constant power with selectable constant current.
Rated power 40 W, subject to input and temperature limits.
Default output current 1050 mA
NFC current adjustment 600–1400 mA; disconnect input power before NFC programming.
Constant-current operating region 9–54 V overall. The maximum permissible LED voltage depends on the selected current; 54 V is not available at every current setting.
Recommended current / voltage settings 600 mA: 9–54 V; 700 mA: 9–54 V; 800 mA: 9–50 V; 900 mA: 9–45 V; 1050 mA: 9–38 V (default); 1200 mA: 9–33 V; 1300 mA: 9–31 V; 1400 mA: 9–29 V. These are the catalog’s rounded recommended windows; observe the rated 40 W power envelope and I–V plot together. The plot labels 1400 mA at 28.6 V while the rounded table lists 29 V.
Open-circuit voltage 60 V; the output hiccups under no-load conditions.
Current ripple <4% at full load.
Current tolerance ±5% in the specification table. The NFC procedure separately states a set-current versus actual-current numerical error within 2%; it does not replace the overall tolerance.

Control and current setting

Parameter Specification
Fitted control function Built-in 3-in-1 dimming with dim-to-off.
NFC app and device Use an NFC-capable phone and the MEAN WELL app. The catalog specifies Android 4.1 or iOS 12 updates. Locate the phone antenna and driver NFC sensing mark.
NFC programming sequence Turn off the driver input supply. Enable phone NFC; open MEAN WELL → Installation Manual/APP → PowerNFC, approach the sensing position and read the model and settings. Enter the required output current, tap Write, bring the phone antenna close to the sensing mark, and confirm the app displays Success. The interface also provides Read, Default and password controls.
3-in-1 control inputs Apply 0–10 VDC, a 10 V PWM signal at 300 Hz–3 kHz, or 0–100 kΩ resistance between DIM+ and DIM−. Typical dimming-source current: 100 μA.
Dimming floor and off Minimum dimming is about 8%; output current is undefined between 0% and 8%. Output can fall to 0% at approximately 0 VDC, 0 kΩ, or 0% duty of the 10 V PWM control signal.
Synchronized resistance control The chart scales full-level resistance as 100 kΩ / N, where N is the number of drivers under synchronized dimming.
Control wiring restriction Do not connect DIM− to the negative LED output (−V). Direct connection to compatible LEDs is suggested; do not cascade an additional LED driver.
Dimming-off standby <0.5 W, measured at 230 VAC with dimming off.
NFC commissioning Use an NFC-enabled phone or tablet and the MEAN WELL app (Power NFC). Read and write parameters only with AC power off; otherwise internal magnetic interference can prevent normal current setting.
NFC reading and verification Keep the phone antenna less than 5 cm from the NFC tag. Read the current, edit the setting, then hold the antenna near the tag and select Setting. After Success, read the driver again to confirm that the intended current was saved.
NFC password The factory default has no password. A user password may contain up to 8 case-sensitive English letters or digits, with no special characters, and must be entered for subsequent writes. The password cannot be reset externally; retain it safely. Default restores the output current to its factory value.

Input and electrical performance

Parameter Specification
Input voltage 100–305 VAC or 141–400 VDC; low-line derating applies.
Input frequency 47–63 Hz
Power factor ≥0.97 at 115 VAC; ≥0.95 at 230 VAC; ≥0.92 at 277 VAC, all at full load.
Total harmonic distortion <10% at ≥50% load / 230 VAC or ≥75% load / 277 VAC; <15% at ≥50% load / 115 VAC.
Typical efficiency 88%; measured at 800 mA / 50 V.
AC input current 0.5 A / 115 VAC; 0.25 A / 230 VAC; 0.2 A / 277 VAC.
Setup and rise time 500 ms setup / 100 ms rise at 230 VAC; 1000 ms setup / 100 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it.
Cold-start inrush 10 A typical; width 100 μs measured at 50% peak current, 230 VAC; per NEMA 410.
16 A circuit-breaker loading 51 units on type B / 51 on type C at 230 VAC, as specified in the catalog.
Leakage current <0.75 mA at 277 VAC
Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load.

Protection functions

Parameter Specification
Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed.
Overtemperature protection Derates to the lowest output level. Automatic recovery after the fault condition is removed.

Environment and derating

Parameter Specification
Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit.
Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits.
Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together.
Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits.
Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model.
Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes.
Life expectancy >50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration.
Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1050 mA and 1400 mA settings. Do not apply these curves as fixed-voltage-model guarantees.

Dimensions and wiring

Parameter Specification
Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation.
Housing dimensions 114 × 44 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm.
Mounting drawing Ø3.6 mm mounting slots; the drawing shows 106 mm longitudinal and 36 mm transverse reference dimensions.
Tc measurement point The drawing locates Tc at 56.1 mm longitudinally and 23.1 mm from the lower case edge.
AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
Single-unit catalog weight 311 g, catalog packing reference per unit. Taken directly from the per-unit PACKING entry. Not a carton-weight division or a measured shipping-package mass.
Control leads Purple: DIM+; pink: DIM−, on the output side. UL2517, 18 AWG × 2, 180 mm nominal length.

Safety, EMC and reliability

Parameter Specification
Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog.
Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals.
Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range.
Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥50% load; BS EN/EN 61000-3-3 voltage flicker.
EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods.
Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load.
MTBF 3935.2 K hours minimum, Telcordia SR-332 (Bellcore); 342.9 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life.
Regional markings Products sourced from China may lack the BIS logo; check the applicable certificate and supplied product. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos.
Catalog warranty 5 years, subject to the manufacturer’s warranty terms.

Selection and installation

Parameter Specification
LED-load selection Match the LED voltage and chosen current to the recommended operating envelope and rated power.
Applications Recessed, down, panel, commercial and decorative lighting.
ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement.
System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation.
Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls.
RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations.

Related manufacturer instructions

Download MEAN WELL NFC User Manual

Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
