Description

XLN-60-24 — Constant-Voltage LED Driver

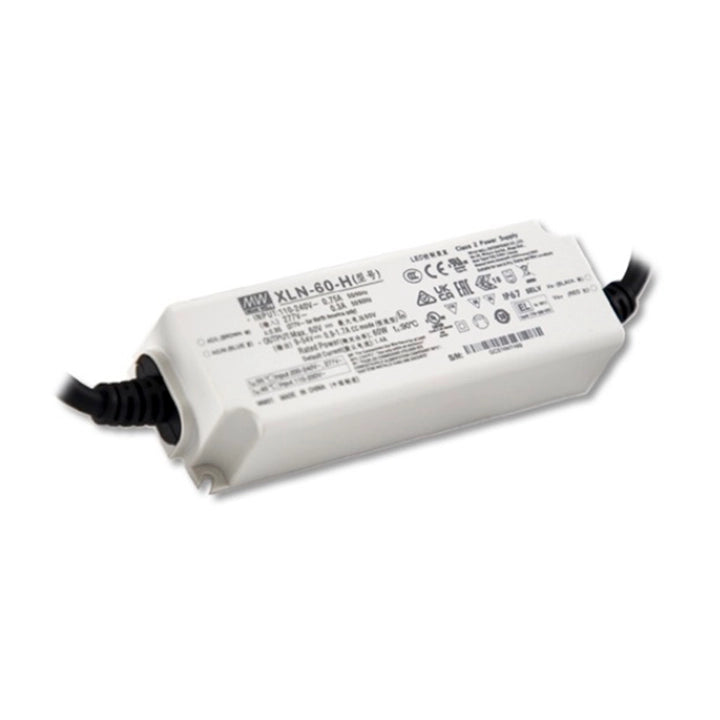

MEAN WELL XLN-60-24 is an independent LED driver with 24 VDC at 2.5 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Fixed-voltage output without NFC or built-in dimming. Select a compatible LED module and observe the output envelope, input and thermal limits below.

Download MEAN WELL XLN-60 Datasheet (PDF)

The combined catalog covers XLN-60 on PDF pages 21–30.

Output specifications

Parameter	Specification
Full model	XLN-60-24
Model code	XLN-60 identifies the series; 24 identifies the fixed output voltage. No function suffix identifies the standard version.
Output mode	Constant voltage.
Rated power	60 W, subject to input and temperature limits.
Rated output voltage	24 VDC
Rated output current	2.5 A
NFC setting	The voltage output is fixed; this SKU does not provide NFC current programming.

Control and current setting

Parameter	Specification
Fitted control function	Fixed-voltage output without NFC or built-in dimming.

Input and electrical performance

Parameter	Specification
Input voltage	100–305 VAC or 155–400 VDC; low-line derating applies.
Input frequency	47–63 Hz
Power factor	≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load.
Total harmonic distortion	<20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC.
Typical efficiency	87% at the catalog measurement conditions.
AC input current	0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC.
Setup and rise time	800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it.
Cold-start inrush	15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410.
16 A circuit-breaker loading	25 units on type B / 36 on type C at 230 VAC, as specified in the catalog.
Leakage current	<0.75 mA at 277 VAC
Measurement conditions	Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load.

Protection functions

Parameter	Specification
Short-circuit protection	Hiccup mode; automatic recovery after the fault condition is removed.
Overload protection	105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed.
Overvoltage protection	26–35 V; output shutdown, re-power on to recover.
Overtemperature protection	Shuts down output voltage; automatic recovery after the fault condition is removed.

Environment and derating

Parameter	Specification
Working case temperature	Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit.
Ambient temperature / load	Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +45°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits.
Case-temperature / load	The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together.
Low-input derating	Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits.
Cooling and altitude	Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model.
Working and storage humidity	Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient	±0.03%/°C over 0–50°C.
Vibration	10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes.
Life expectancy	50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration.
Performance curves	THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees.

Dimensions and wiring

Parameter	Specification
Housing and protection	Fully encapsulated IP67 plastic housing; independent type; Class II double insulation.
Housing dimensions	141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm.
Mounting drawing	Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing.
Tc measurement point	The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge.
AC input wiring	Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
DC output wiring	Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
Single-unit catalog weight	490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass.

Safety, EMC and reliability

Parameter	Specification
Construction and safety	Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog.
Listed safety standards	ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals.
Emergency-lighting input	EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range.
Withstand voltage / isolation	Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emissions	BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker.
EMC immunity	BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods.
Flicker performance	PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load.
MTBF	4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life.
Regional markings	Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product.
Catalog warranty	5 years, subject to the manufacturer’s warranty terms.

Selection and installation

Parameter	Specification
LED-load selection	Use a compatible 24 V constant-voltage LED load within 2.5 A and 60 W after derating.
Applications	Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting.
ErP installation requirement	Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement.
System EMC	The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation.
Options and accessories	This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls.
RCM installation limitation	RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations.

Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
