MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-24-B

Description

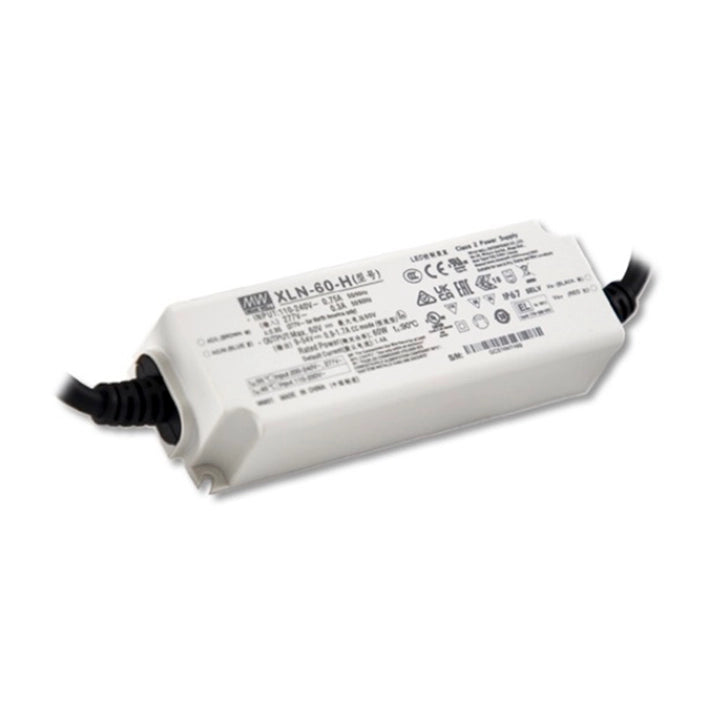

XLN-60-24-B — Constant-Voltage LED Driver

MEAN WELL XLN-60-24-B is an independent LED driver with 24 VDC at 2.5 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in 3-in-1 dimming with dim-to-off. Select a compatible LED module and observe the output envelope, input and thermal limits below.

Download MEAN WELL XLN-60 Datasheet (PDF)

The combined catalog covers XLN-60 on PDF pages 21–30.

Output specifications

Parameter Specification
Full model XLN-60-24-B
Model code XLN-60 identifies the series; 24 identifies the fixed output voltage. B identifies 3-in-1 dimming.
Output mode Constant voltage; PWM-style output dimming.
Rated power 60 W, subject to input and temperature limits.
Rated output voltage 24 VDC
Rated output current 2.5 A
NFC setting The voltage output is fixed; this SKU does not provide NFC current programming.

Control and current setting

Parameter Specification
Fitted control function Built-in 3-in-1 dimming with dim-to-off.
3-in-1 control inputs Apply 0–10 VDC, a 10 V PWM signal at 300 Hz–3 kHz, or 0–100 kΩ resistance between DIM+ and DIM−. Typical dimming-source current: 100 μA.
Dimming floor and off Minimum dimming is about 8%; output current is undefined between 0% and 8%. Output can fall to 0% at approximately 0 VDC, 0 kΩ, or 0% duty of the 10 V PWM control signal.
Synchronized resistance control The chart scales full-level resistance as 100 kΩ / N, where N is the number of drivers under synchronized dimming.
Control wiring restriction Do not connect DIM− to the negative LED output (−V). Direct connection to compatible LEDs is suggested; do not cascade an additional LED driver.
Output PWM frequency 4 kHz fixed, typical. Dimming changes output-current duty cycle; this is the LED-output frequency, distinct from an external PWM control signal.
Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version.

Input and electrical performance

Parameter Specification
Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies.
Input frequency 47–63 Hz
Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load.
Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC.
Typical efficiency 87% at the catalog measurement conditions.
AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC.
Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it.
Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410.
16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog.
Leakage current <0.75 mA at 277 VAC
Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load.

Protection functions

Parameter Specification
Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed.
Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed.
Overvoltage protection 26–35 V; output shutdown, re-power on to recover.
Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed.

Environment and derating

Parameter Specification
Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit.
Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +45°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits.
Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together.
Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits.
Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model.
Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes.
Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration.
Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees.

Dimensions and wiring

Parameter Specification
Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation.
Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm.
Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing.
Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge.
AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length.
Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass.
Control leads Purple: DIM+; pink: DIM−, on the output side. UL2517, 18 AWG × 2, 180 mm nominal length.

Safety, EMC and reliability

Parameter Specification
Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog.
Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals.
Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range.
Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker.
EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods.
Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load.
MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life.
Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product.
Catalog warranty 5 years, subject to the manufacturer’s warranty terms.

Selection and installation

Parameter Specification
LED-load selection Use a compatible 24 V constant-voltage LED load within 2.5 A and 60 W after derating.
Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting.
ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement.
System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation.
Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls.
RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations.

Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
