Description

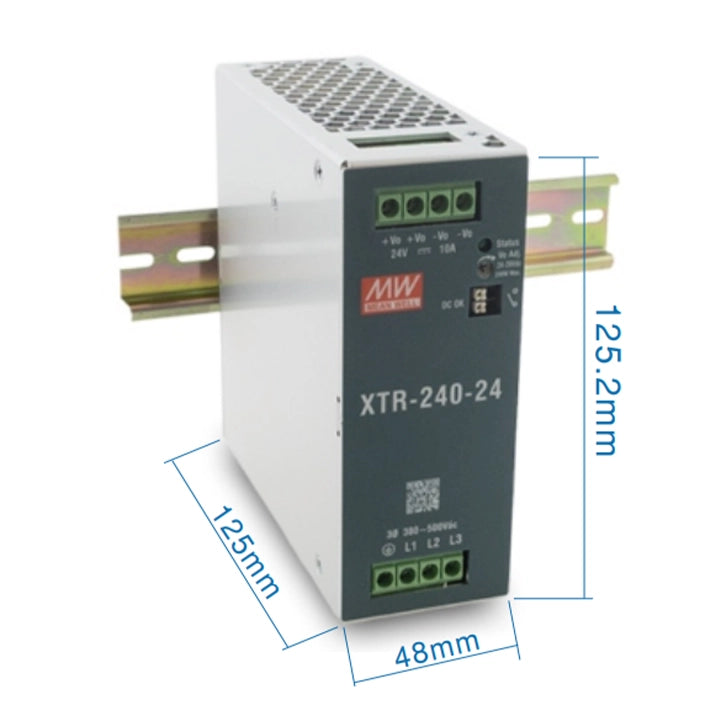

Output voltage: 24V Output current: 0 ~ 10A Rated power: 240W Parallel (optional) Peak current (5 seconds):15A Peak power (5 seconds):360W Voltage adjustment range: 24~29V Input voltage: three-phase 320 ~ 600VAC,450 ~ 800VDC (connected to L1,L3,FG or L2,L3,FG can be two-phase operation, L3 is DC +) Output terminal type: Screw Terminal Size (mm):48X125.2X125
Click to download Airtac product catalog
Product Features
1.320 ~ 600Vac three-phase wide range input, supporting occasional 600 ~ 700Vac surge input for 1 second (bidirectional operation), multi-domain global certification (ITE 62368-1,Industrial 61558-1/-2-16,61010) and Marine DNV,SEMI47,C1D2 HazLoc certification.
2.48mm ultra-thin width, efficiency up to 93.5%, no-load power consumption <2.5W,150% peak power, built-in constant current limiting circuit.
3. Parallel function, up to 960W(3 1)(optional), protection: short circuit/overload/overvoltage/overtemperature, fanless design, natural air cooling.
4. Overvoltage category III (OVC III),-40 ~ +85 ℃ wide operating temperature range (>+60 ℃ minus), operating altitude up to 5000 meters, built-in DC OK relay contact.
5. Ultra-low surge current <10A, built-in ORing FET (optional), tool-free terminal block (LA type), protective coating, can be installed on TS-35/7.5 or 15 DIN rail, 5-year warranty.
