Description

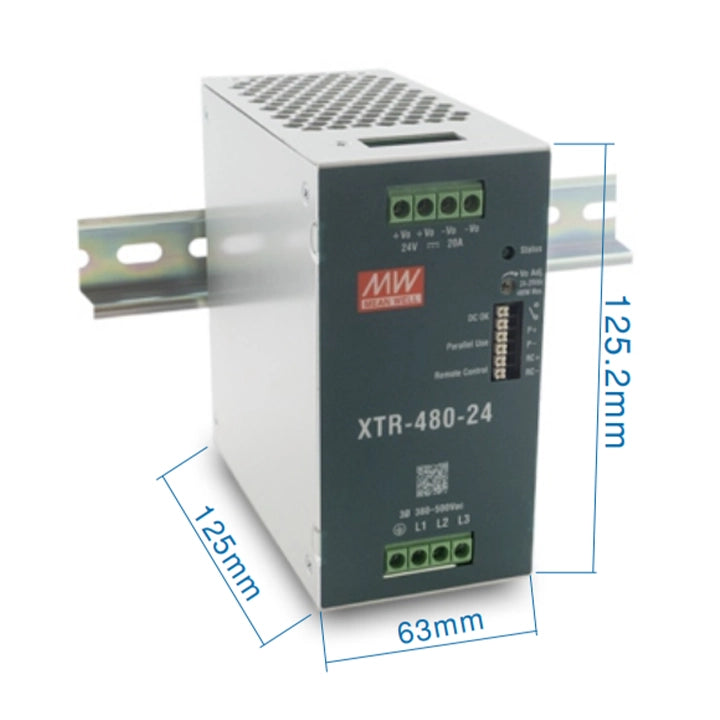

Output voltage: 24V Output current: 0 ~ 20A Rated power: 480W Peak current (5 seconds):40A Peak power (5 seconds):960W Voltage adjustment range: 24~29V Input voltage: three-phase 320 ~ 600VAC (dual-phase operation),450 ~ 800VDC Output terminal type: Screw Terminal Mounting Bracket: GL Size (mm):63X125.2X125
Click to download Airtac product catalog
Product Features
1.320 ~ 600Vac three-phase wide range input (bidirectional operation), multi-field global certification (ITE 62368-1, industrial 61558-1/-2-61010) and Marine DNV,SEMI47,C1D2 HazLoc certification.
2.63mm ultra-thin width, efficiency as high as 95.5, R.C no-load power consumption <3.0W,200 peak power, built-in constant current limiting circuit.
3. Parallel function, up to 1920W(3 1), protection: short circuit/overload/overvoltage/overtemperature, fanless design, natural air cooling.
4. Overvoltage category III (OVC III),-40~85 ℃ wide operating temperature range (> 60 ℃ minus), operating altitude up to 5000 meters, built-in remote switch control and DC OK relay contacts.
5. Ultra-low surge current <10A, built-in ORing FET, tool-free terminal block (LA type), protective coating, can be installed on TS-35/7.5 or 15 DIN rail, 5-year warranty.
