Description

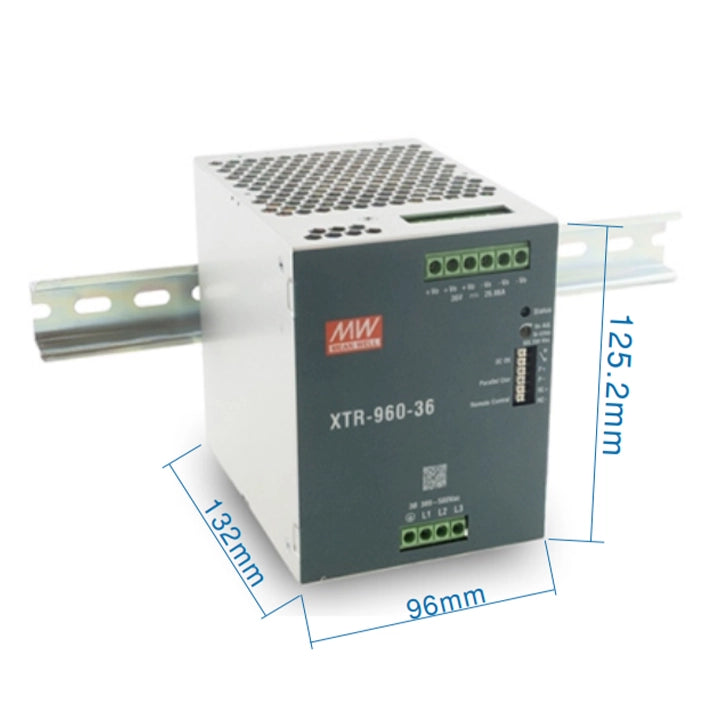

Output voltage: 36V Output current: 0 ~ 26.66A Rated power: 959.76W Peak current (5 seconds):53.3A Peak power (5 seconds):1918.8W Voltage adjustment range: 36~42V Input voltage: three-phase 320 ~ 600VAC (dual-phase operation),450 ~ 800VDC terminal types: Screw Terminal Size (mm):96X125.2X132
Click to download Airtac product catalog
Product Features
1.320 ~ 600Vac three-phase wide range input (bidirectional operation), multi-field global certification (ITE 62368-1, industrial 61558-1/-2-61010) and Marine DNV,SEMI47,C1D2 HazLoc certification.
2.96mm ultra-thin width, efficiency up to 96%,R.C no-load power consumption <3.1W,200 peak power, built-in constant current limiting circuit.
3. Parallel function, up to 3840W(3 1), protection: short circuit/overload/overvoltage/overtemperature, fanless design, natural air cooling.
4. Overvoltage category III (OVC III),-40~85 ℃ wide operating temperature range (> 60 ℃ minus), operating altitude up to 5000 meters, built-in remote switch control and DC OK relay contacts.
5. Ultra-low surge current <10A, built-in ORing FET, tool-free terminal block (LA type), protective coating, can be installed on TS-35/7.5 or 15 DIN rail, 5-year warranty.
